IC695CBL001 Overview

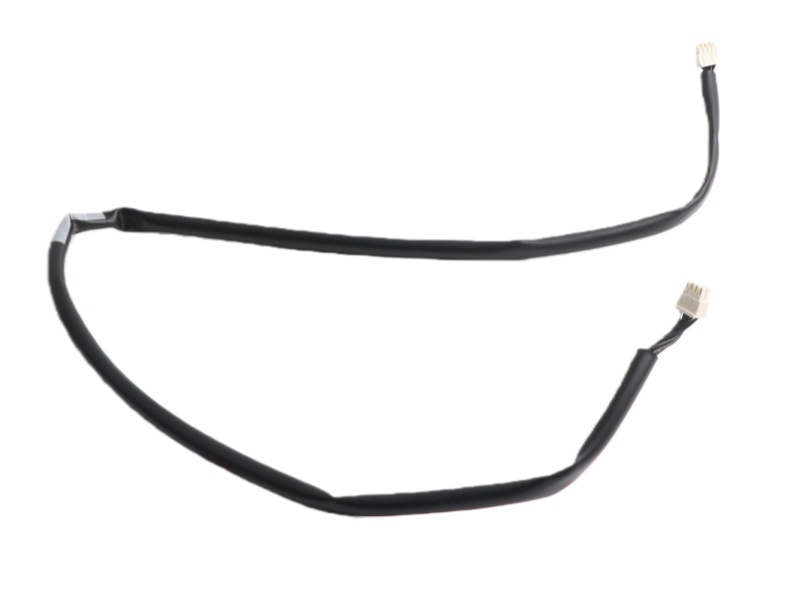

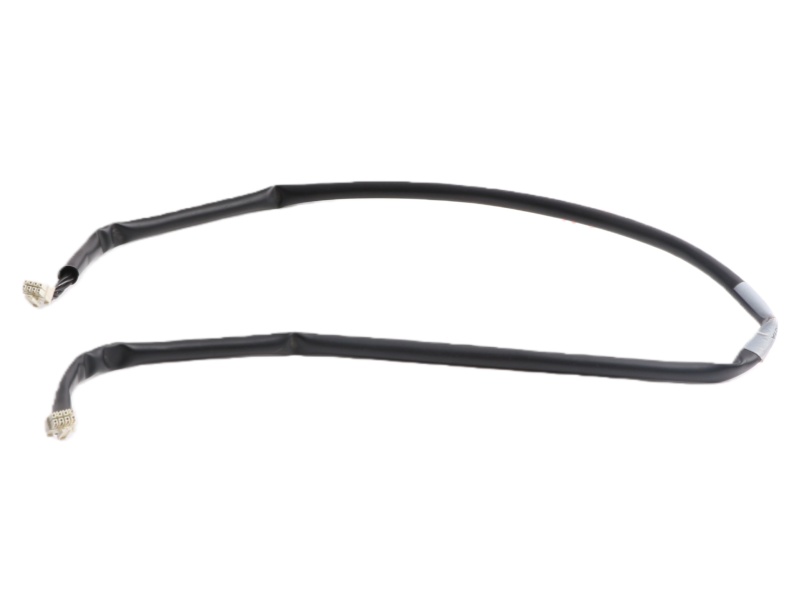

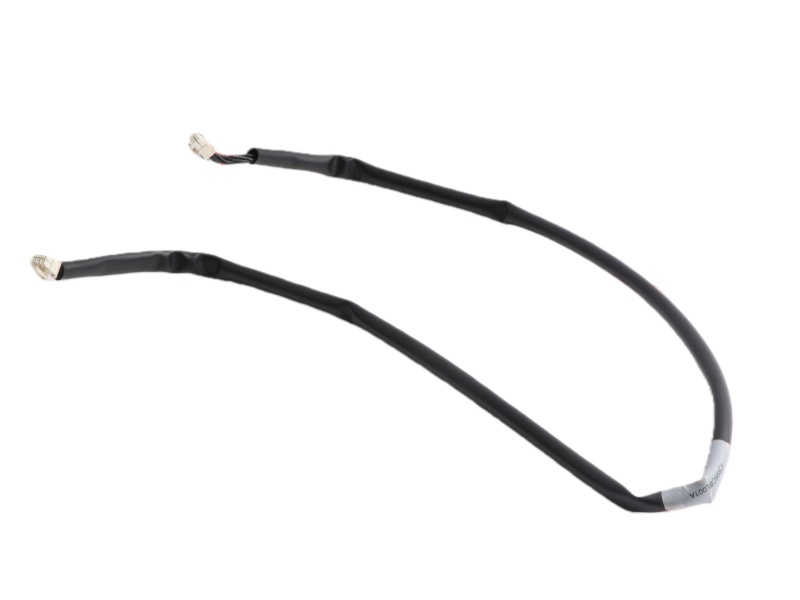

GE IC695CBL001 General Electric FANUC  is a 3-foot cable that securely connects the RX3i energy pack to compatible CPUs, ensuring critical data backup during system power loss.

IC695CBL001 Key Features

Purpose & Compatibility: Dedicated connecting cable for the RX3i PACSystem. Links the Energy Pack to CPE302/305/310 CPUs for critical data backup during power loss.

Physical Specs: Length is 0.91 meters (3 feet). Features straight-through wiring and termination resistors for a secure connection.

Installation & Use: Connects via bottom ports on both Energy Pack and CPU. Note: A blinking green CPU STATUS LED indicates initial Energy Pack charging.

Application Environment: Used with a RoHS-compliant Energy Pack designed for industrial DC voltage systems (24-240V DC).

FAQ

1. Q: What is the main purpose of the IC695CBL001 cable?

A: It is used to connect the RX3i Energy Pack to compatible CPUs (like CPE302/305/310), enabling data backup to non-volatile memory during a power failure.

2. Q: How long is the IC695CBL001 cable?

A: The cable length is 0.91 meters, or approximately 3 feet.

3. Q: Where do I connect the IC695CBL001 cable on the hardware?

A: Connect it from the bottom connector of the Energy Pack to the corresponding bottom connector on the CPU unit.

4. Q: Why might the CPU's STATUS LED blink green after installing the Energy Pack?

A: This indicates the Energy Pack is charging to its operating level, which may occur during initial power-up or after a complete discharge.

5. Q: Is the Energy Pack used with the IC695CBL001 RoHS compliant?

A: Yes, the Energy Pack complies with the EU RoHS standard (Directive 2011/65/EU).
