IC695CHS012 Product datasheet
|
Model number: |
IC695CHS012 |
|
Module Type： |
Universal Backplane |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
PACSystems |
|
Lead time： |
In Stock |
|
Weight: |
0.9 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
20x11.5x5.7cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC695CHS012 Functional Description

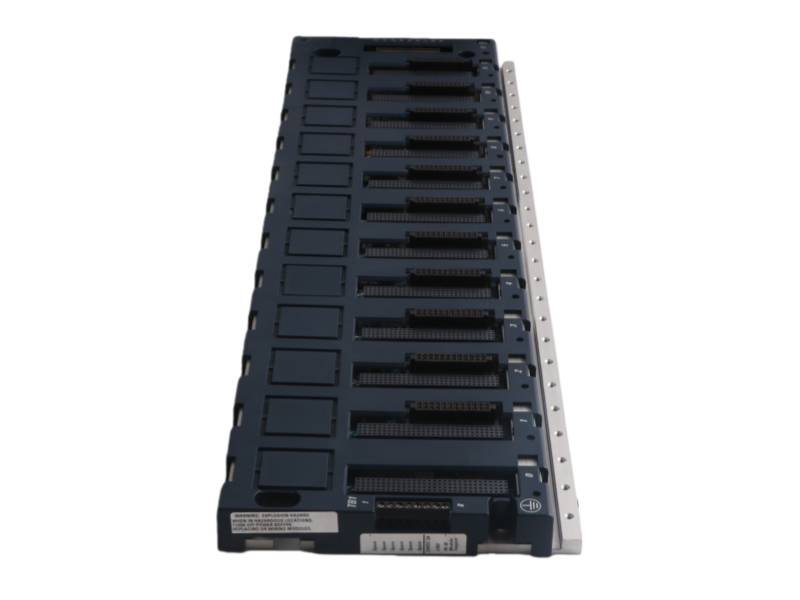

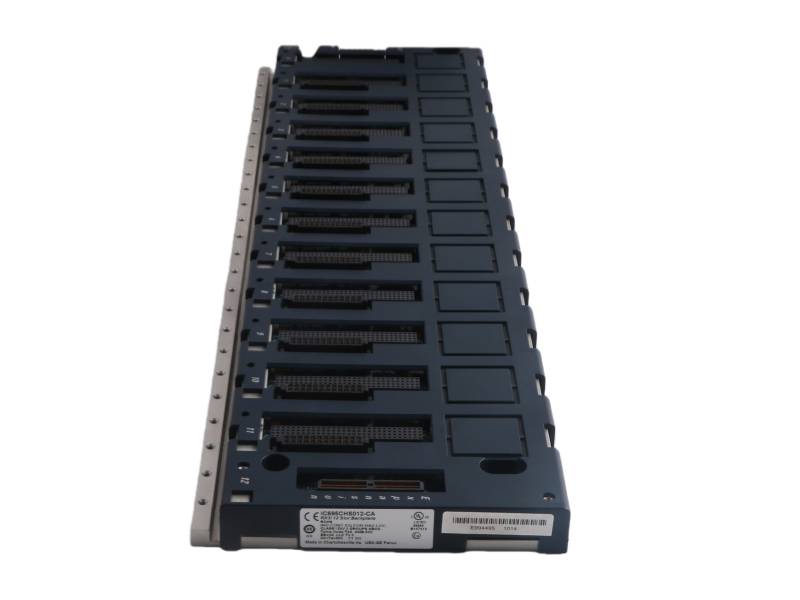

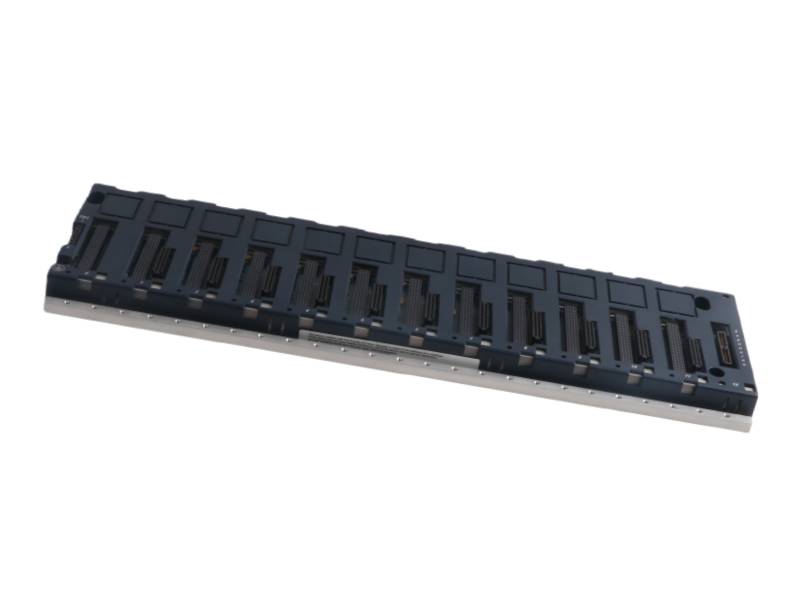

The IC695CHS012 GE HIGH SPEED CONTROLLER represents a versatile 12-slot universal backplane designed for RX3i PACSystems. This robust component features a dual-bus architecture that seamlessly supports both PCI-based and serial I/O modules, including compatibility with Series 90-30 systems. The innovative design of the RX3i 12-Slot Universal Backplane General Electric IC695CHS012 enables flexible configuration while maintaining reliable performance in industrial environments.
Engineered for practical installation, the General Electric IC695CHS012 Universal Backplane incorporates multiple convenience features including a terminal strip for isolated 24V input and dedicated grounding points. These elements ensure proper electrical connectivity and system stability. The backplane's horizontal orientation and clearly marked slot numbers further simplify the module configuration process, reducing potential installation errors.
The HIGH SPEED CONTROLLER GE IC695CHS012 demonstrates notable power efficiency with modest consumption rates of 240mA at 5VDC and 600mA at 3.3VDC. This efficient power management allows for optimal system resource allocation while supporting hot swap capabilities that facilitate maintenance operations without disrupting entire system functionality.
With its comprehensive support for both legacy and modern modules, the GENERAL ELECTRIC PLC Module IC695CHS012 provides exceptional integration flexibility across different generations of hardware. This universal backplane solution effectively bridges technological generations, offering organizations a reliable foundation for both current operations and future system expansions within industrial automation applications.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
