IC695ALG626 Product datasheet
|
Model number: |
IC695ALG626 |
|
Module Type： |
Analog Input Hart Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
PAC System |
|
Lead time： |
In Stock |
|
Weight: |
0.24kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13.5x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC695ALG626 Functional Description

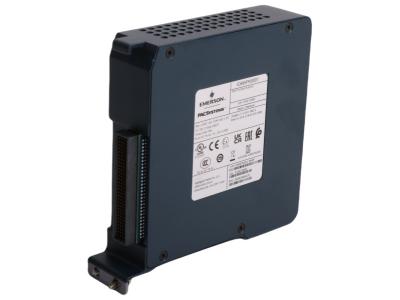

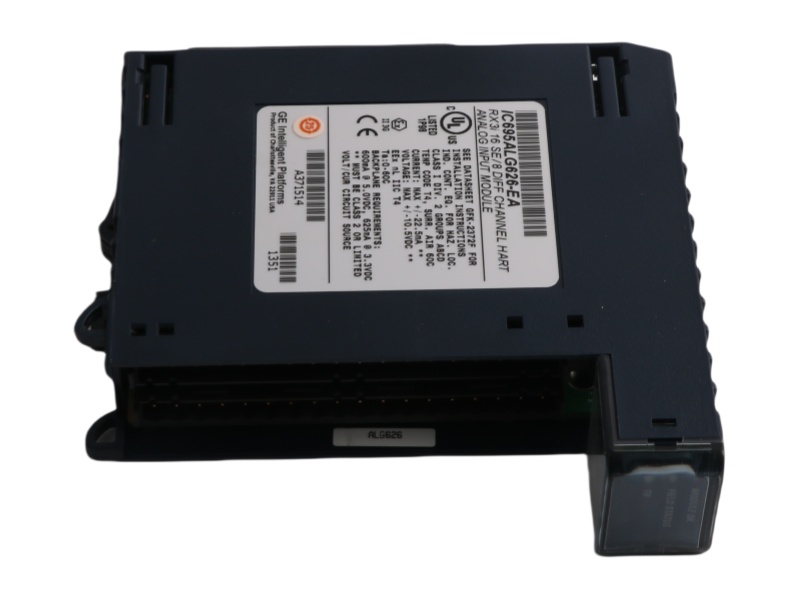

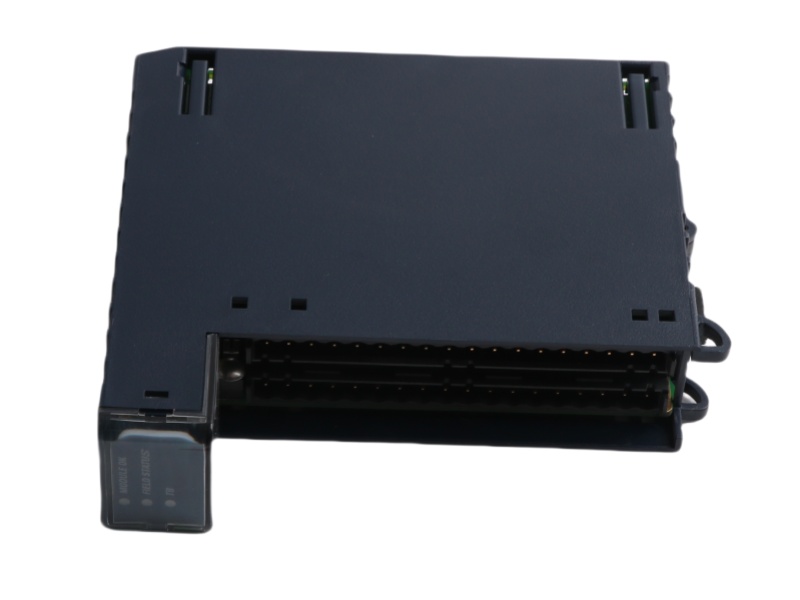

The General Electric IC695ALG626 in stock is an advanced analog input module from the PACSystem RX3i platform, supporting Highway Addressable Remote Transducer (HART) 5.0 communication on every channel. Originally manufactured by GE Intelligent Platforms and now part of Emerson Automation, the Analog Input Hart Module GE IC695ALG626 is designed to interface with a wide range of analog field instruments measuring process variables. It accepts current signals from 0 to 20mA, 4 to 20mA, and ±20mA, as well as voltage signals such as ±10V, 0 to 10V, ±5V, 0 to 5V, and 1 to 5V. The module supports sixteen single-ended or eight differential input channels.
Equipped with LED indicators, the IC695ALG626 PAC System RX3i Programmable Automation Controller provides clear module status, field status, and terminal block connection feedback, ensuring ease of monitoring and troubleshooting. The module is hot-swappable in the RX3i universal backplane and does not require jumpers, offering flexibility and convenience in installation.
The ANALOG INPUT HART MODULE IC695ALG626 features onboard error detection, auto-calibration, and supports configurable alarms, including rate of change, low and high alarm levels, enhancing system reliability and safety. With flash memory for upgrades and open circuit detection, this module maintains high accuracy and performance.
Designed to operate between 32 and 140 degrees Fahrenheit and withstand storage temperatures from -40 to 185 degrees Fahrenheit, the General Electric IC695ALG626 Analog Input Hart Module is suitable for demanding industrial environments, providing precise, reliable analog input data for process control systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
