IC695NIU001 Product datasheet

IC695NIU001 Functional Description

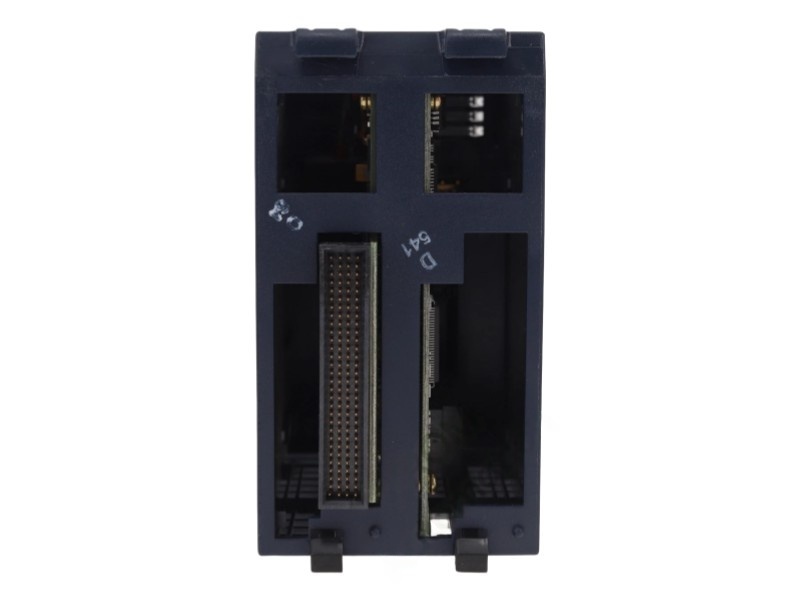

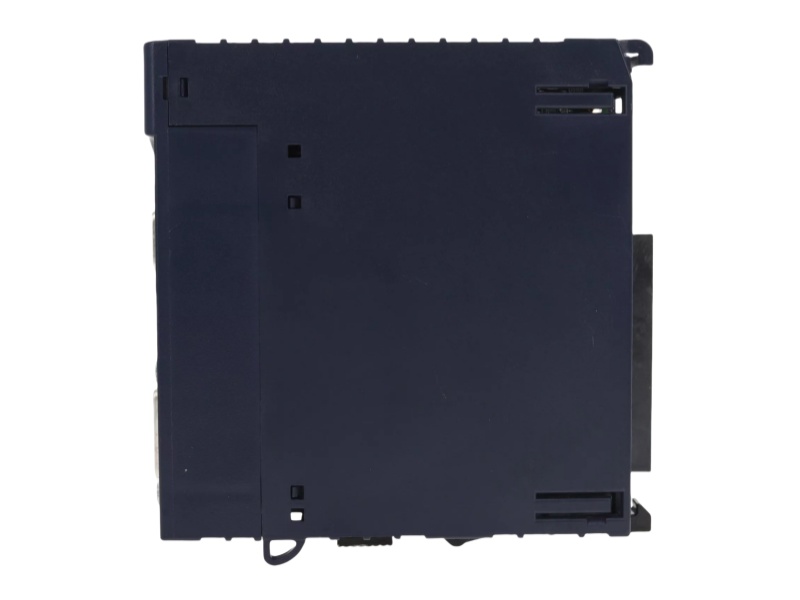

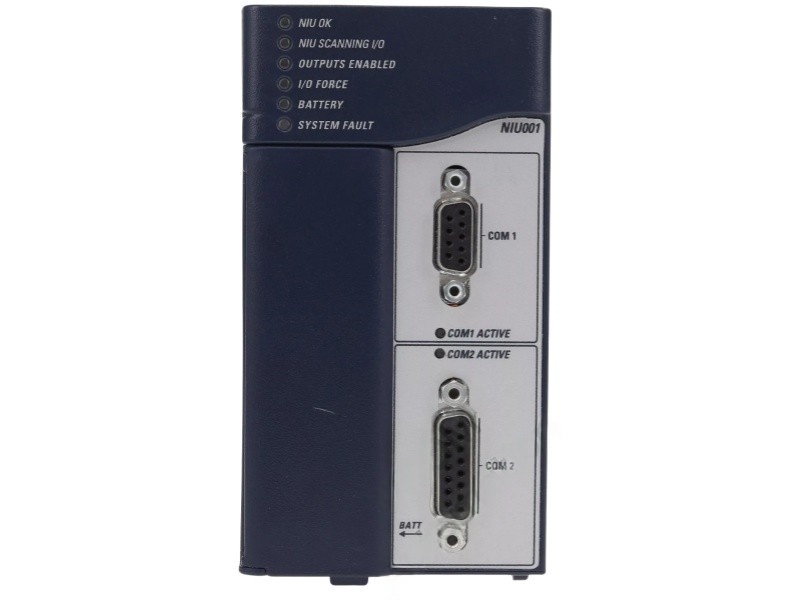

The General Electric IC695NIU001 Ethernet network interface unit is a critical component in PACSystems RX3i and Series 90-30 configurations, enabling seamless remote I/O connectivity over Ethernet networks. This advanced Network Interface Unit (NIU) facilitates real-time data exchange between controllers and distributed I/O modules, significantly enhancing system flexibility. The IC695NIU001 General Electric PDF automatically handles all data transfers once configured, eliminating the need for manual intervention during normal operation. Its dual-port design ensures reliable communication in demanding industrial environments.

A key strength of the IC695NIU001 GE PACSystems is its ability to support Ethernet Global Data (EGD) protocol, allowing any compatible master device to control the system. The module continuously provides the controller with comprehensive status updates during each data exchange cycle. This enables the General Electric IC695NIU001 to maintain optimal network performance while offering complete visibility into communication health. Engineers can program the RX3i controller to monitor this status data and issue commands as needed.

The General Electric IC695NIU001 simplifies large-scale automation projects by supporting both PACSystems RX3i and legacy Series 90-30 I/O on the same network. Its intelligent architecture automatically manages data routing, reducing programming complexity. The module's robust design ensures reliable operation in harsh industrial environments where temperature fluctuations and electrical noise are common. With the IC695NIU001 PACSystems Rx3i Ethernet Network Interface Unit, plants can extend their control systems without compromising performance or reliability.

This versatile NIU is particularly valuable for applications requiring distributed control architectures, such as manufacturing lines or utility plants. The GE Ethernet network interface unit IC695NIU001 supports 10/100 Mbps Ethernet speeds, providing sufficient bandwidth for most industrial automation needs. By enabling remote I/O connectivity, it reduces wiring costs while improving system scalability. These features make the IC695NIU001 an essential component for modern industrial networks seeking to balance performance with future expandability.
