IC695PNS001CA-ABAH Product datasheet
Model number: |
IC695PNS001CA-ABAH |
|
Module Type: |
Profinet Scanner Module |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
PACSystems |
|
Lead time: |
In Stock |
Weight: |
0.52 kg |
|
HS CODE: |
8537101190 |
Dimension: |
7x13.3x13.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
DCS |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC695PNS001CA-ABAH Functional Description

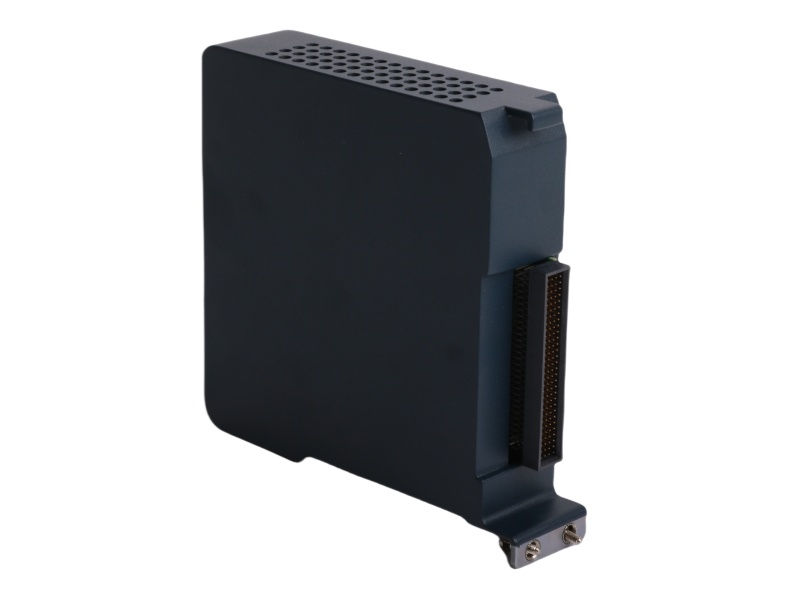

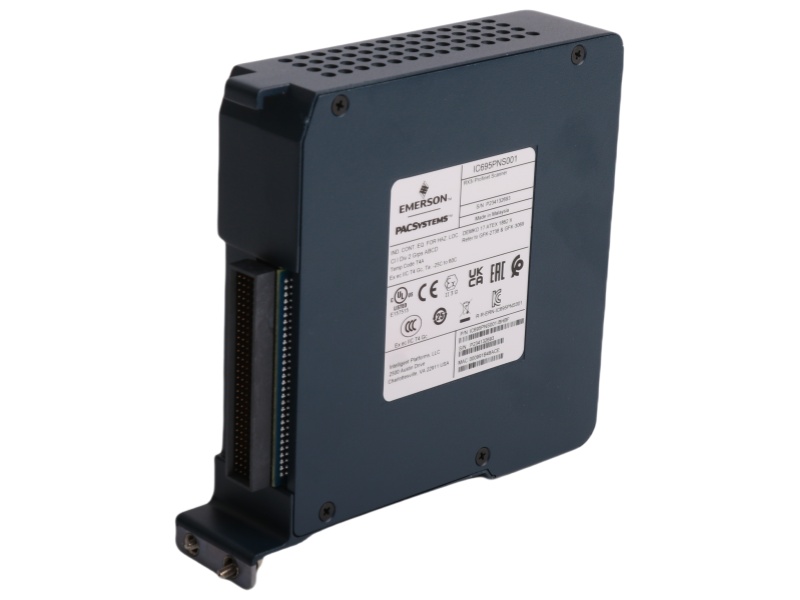

The General Electric IC695PNS001CA-ABAH Profinet Scanner Module is a high-performance PROFINET Scanner module designed for the PACSystems RX3i platform. It enables seamless integration of remote Series 90-30 or RX3i I/O modules with a PROFINET I/O Controller, ensuring real-time data exchange at configurable production rates. The module scans its connected rack, managing input/output data transmission over PROFINET I/O LAN while maintaining robust communication even in demanding industrial environments.

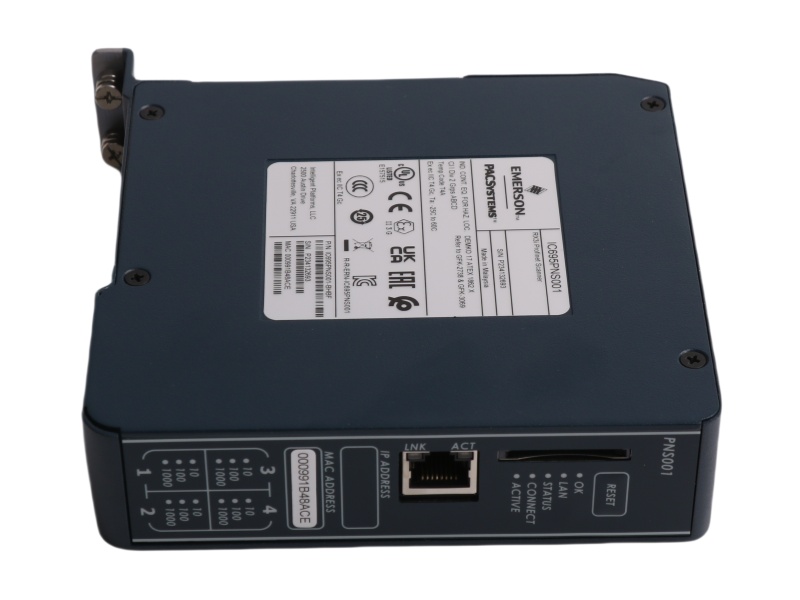

Featuring four switched Ethernet ports, the IC695PNS001CA-ABAH General Electric PDF supports 10/100/1000 Mbps copper and fiber optic connections, accommodating diverse network topologies like daisy-chain, star, or PROFINET MRP (Media Redundancy Protocol). Its front-panel RJ-45 port allows easy firmware updates, while SD card support simplifies module replacement by transferring I/O Device Names without additional tools.
The IC695PNS001CA-ABAH GE PACSystems also ensures fail-safe operation by managing I/O states during network disruptions, based on predefined module configurations. Compatible with Proficy Machine Edition (PME), it offers streamlined setup for supported Series 90-30 and RX3i I/O modules, enhancing system flexibility.
For advanced applications, the PNS101 variant adds Sequence of Events (SOE) recording with IRIG-B time synchronization, achieving 1ms accuracy. However, the GE Profinet Scanner Module IC695PNS001CA-ABAH remains ideal for standard PROFINET scanning, delivering reliability and high-speed industrial communication.
If you have other request contact our team to get customized service
GE |
IS215WEPAH2B |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
GE |
IS215AEPCH2F |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
GE |
IS200WEORG1A |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
GE |
IS210AEDBH4A |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
GE |
IS210AEBIH3B |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
GE |
IS215REBFH1B |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
GE |
IS200AEADH4A |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
GE |
IS210MACCG1A |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
GE |
IS200TREGH1BDB |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
PACSystems RX3i PROFINET Scanner
The PACSystems* IC695PNS001 RX3i PROFINET Scanner and IC695PNS101 RX3i Advanced PROFINET Scanner modules connect a remote universal RX3i I/O rack of Series 90-30 or RX3i modules to a PROFINET I/O Controller. The PROFINET Scanner scans the modules in its rack, retrieving input data and providing output data, and exchanges that data on the PROFINET I/O LAN at the configured production rate.
The PNS manages PROFINET communication and module configuration between an I/O Controller and modules in the remote rack. If network communications are lost, the PNS manages I/O states according to the individual module configurations.
The PNS001 and PNS101 support 10/100/1000 Mbps Copper, 100/1000 Mbps Multimode Fiber, and 100/1000 Mbps Single-mode Fiber. PROFINET communications on the network require 100 or 1000 Mbps link speed. Although 10 Mbps cannot be used for PROFINET communications, 10 Mbps can be used for other types of Ethernet traffic such as PING.
