IC695PSD140 Product datasheet
|
Model number: |
IC695PSD140 |
|
Module Type： |
PACSystems RX3i Power Supply Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
PACSystems |
|
Lead time： |
In Stock |
|
Weight: |
0.25 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13.5x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC695PSD140 Functional Description

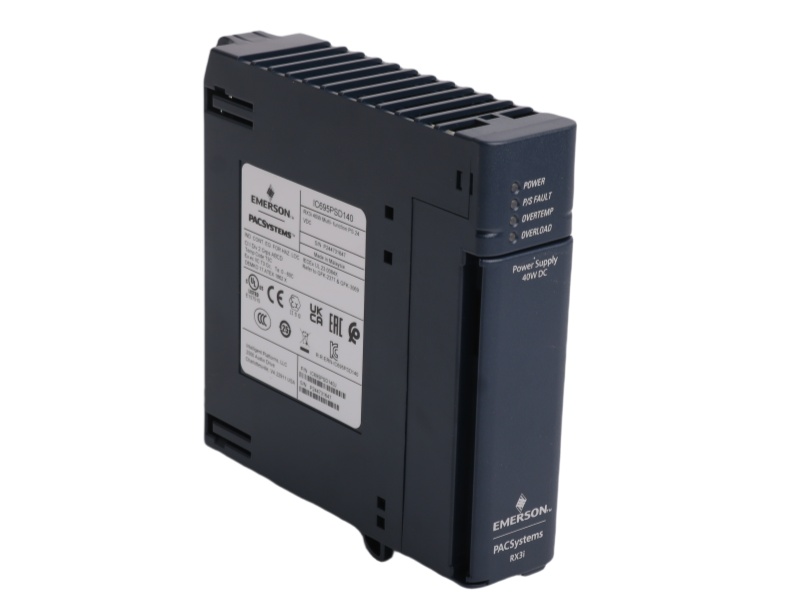

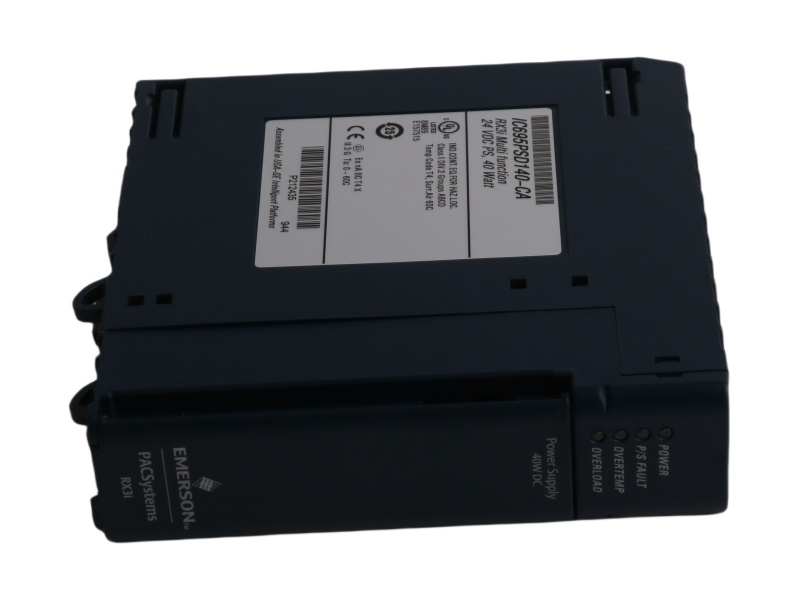

The General Electric IC695PSD140 PACSystems RX3i Power Supply Module is a multi-purpose 40-Watt power supply designed for GE's PACSystems RX3i platform. Operating from 18-30VDC input, the General Electric IC695PSD140 delivers three critical outputs: +5.1VDC for logic circuits, +24VDC for relay modules, and +3.3VDC for internal RX3i module operation. Its compact design and robust performance make it ideal for industrial automation applications requiring stable power distribution.
The IC695PSD140 General Electric PDF supports both standalone and redundant configurations, allowing installation with up to three additional units in an RX3i universal backplane. This load-sharing capability ensures uninterrupted operation in mission-critical systems. The power supply's wide input voltage range (18-30VDC) provides compatibility with various industrial power sources, enhancing system adaptability.
The General Electric IC695PSD140 features industrial-grade protection against overloads, short circuits, and voltage fluctuations, guaranteeing reliable performance in harsh environments. Its efficient thermal management maintains optimal operating temperatures, while the modular design simplifies maintenance and replacement procedures. These qualities make the Power Supply IC695PSD140 General Electric a dependable choice for continuous operation.
As a key component of GE's RX3i platform, the IC695PSD140 DC Power Supply General Electric demonstrates GE's commitment to robust industrial power solutions. Whether used in manufacturing, energy, or process control, this power supply delivers the efficiency and reliability that modern automation systems demand.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
PQMII-T20-C-A |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IS215AEPCH2F |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IS200WEORG1A |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IS210AEDBH4A |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IS210AEBIH3B |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IS215REBFH1B |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IS200AEADH4A |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IS210MACCG1A |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IS200TREGH1BDB |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
Overcurrent Protection
The 5.1 VDC output is electronically limited to 7 Amps. The 3.3 VDC output is limited to 10 Amps. If an overload (including short circuits) occurs, it is sensed internally and the Power Supply shuts down. Because it is designed for redundancy applications, this Power Supply latches “OFF” in fault conditions and will not automatically try to restart. Input power must be cycled to clear a latched fault.
An internal fusable link in the input line is provided as a backup. The Power Supply usually shuts down before the fusable link blows. The fusable link also protects against internal supply faults. The CPU Fault Table shows a fault if any Overtemperature, Overload, or P/S Fault occurs. There is no additional indication if the Power Supply fusable link blows.

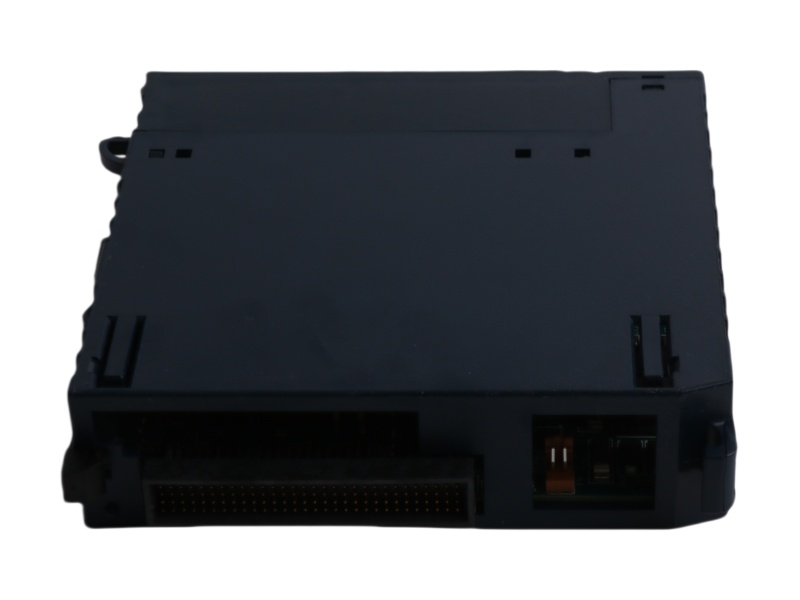

In a non-redundancy application, where automatic restarting may be appropriate, a shunt can be installed on back of the module as shown at left. The shunt must have 0.100 inch spacing on center and accommodate 0.25 inch pins. Example parts are Radio Shack DIP Programming Shunt #276-1512 and DIGI-Key #59000-ND. The module must be removed from the backplane to install the shunt.
