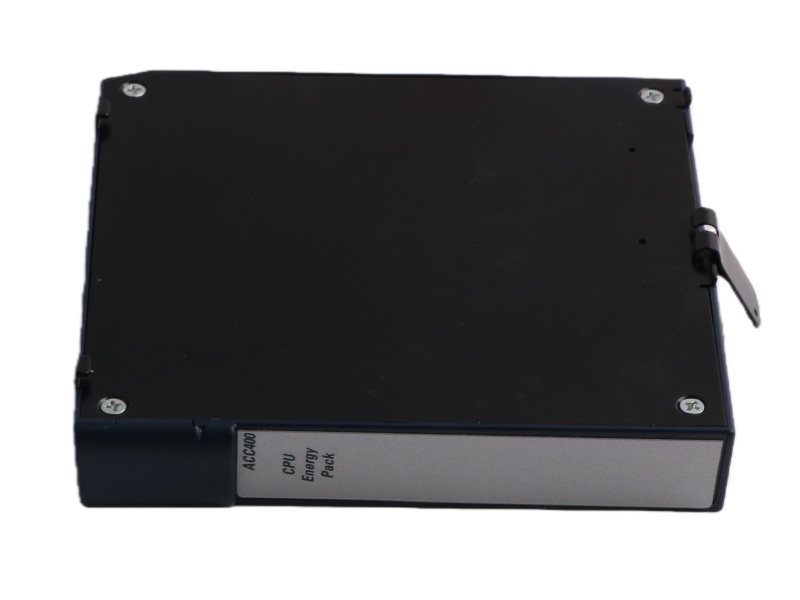

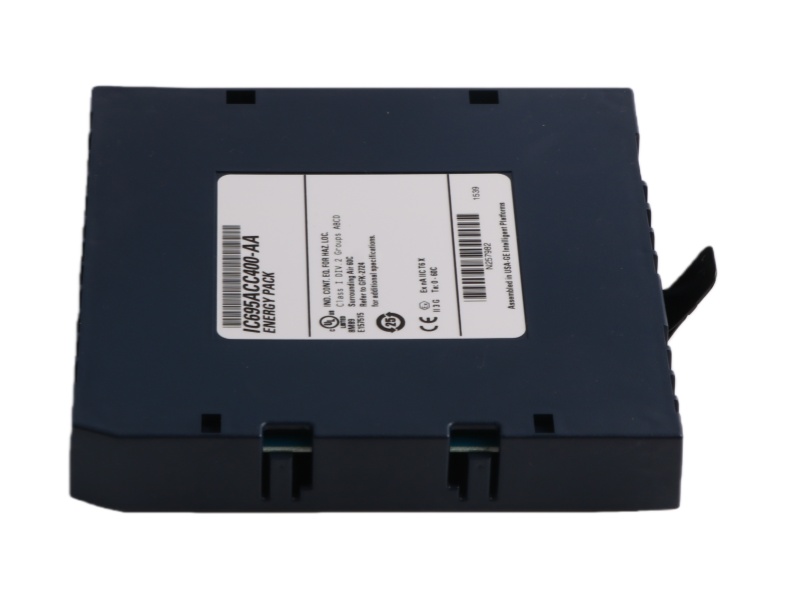

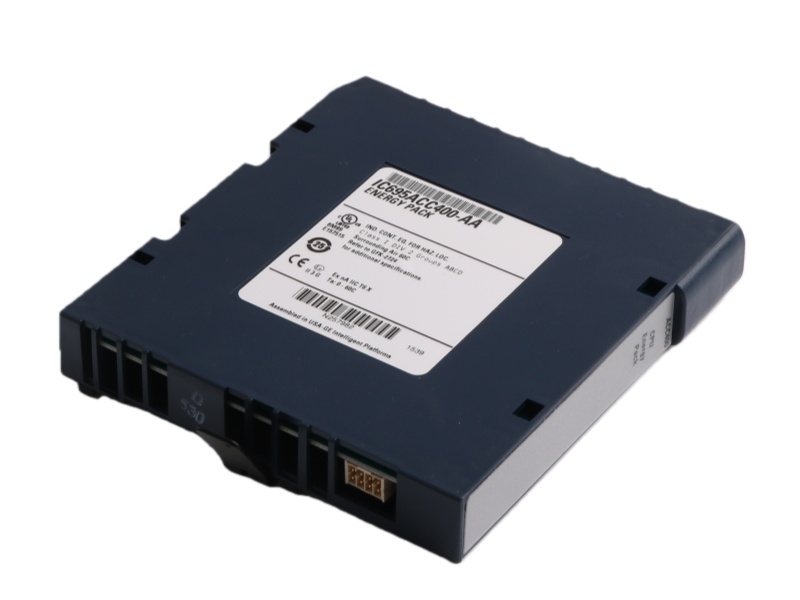

IC695ACC400 Overview

The General Electric IC695ACC400 Energy pack unit Energy Pack provides backup power to specified RX3i CPUs (CPE302/305/310) in the event of a main power loss. This allows the CPU to save its user memory to non-volatile flash storage. It charges from the system's 24V rail and is compliant with EU RoHS directives.

IC695ACC400 Key Features

• Backup Power Module: Provides temporary power to specified RX3i CPUs (CPE302/305/310) during main power loss.

• Data Protection: Enables the CPU to save user memory contents to non-volatile flash memory during outages.

• Integrated Mounting: Easily mounts on the left side of an RX3i module, connecting via a dedicated cable.

• System Charging: Charges from the system's 24 VDC supply rail while main power is available.

• Compliance: Meets EU RoHS Directive requirements with specific exemptions.

FAQ

Q1: What is the main function of the General Electric IC695ACC400?

A1: It is an Energy Pack that provides backup power to specified RX3i CPUs, allowing them to save user memory to non-volatile storage during a power loss.

Q2: Which CPUs is the IC695ACC400 compatible with?

A2: It is specifically designed for use with RX3i CPUs CPE302, CPE305, or CPE310, and is not compatible with other CPU models.

Q3: How does the Energy Pack connect to the CPU?

A3: It mounts on the left side of an RX3i module and connects to the CPU using the dedicated IC695CBL001 cable.

Q4: How does the Energy Pack get charged?

A4: It charges automatically from the system's 24 VDC power rail via the connecting cable while the main system power is on.

Q5: What key system operation does it protect?

A5: It protects critical system data by providing enough power for a controlled shutdown, preventing data loss during unexpected power outages.
