IC695ALG616 Overview

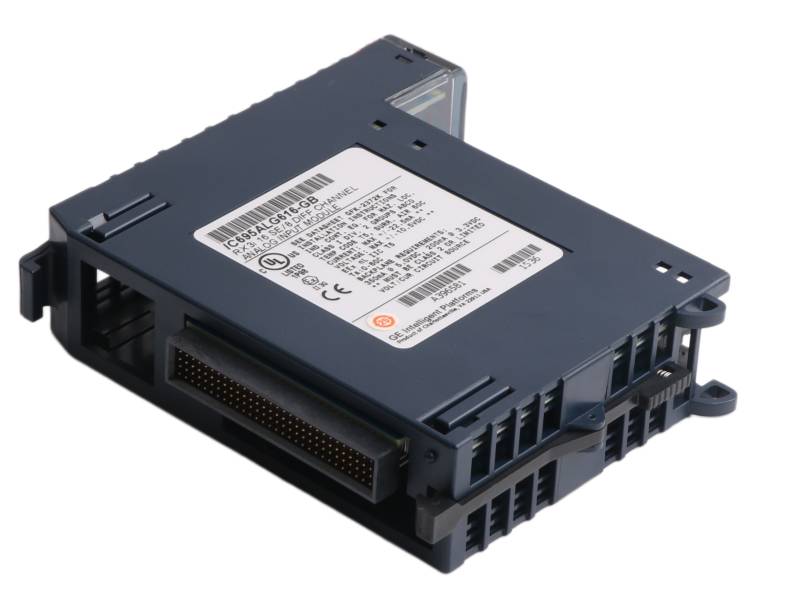

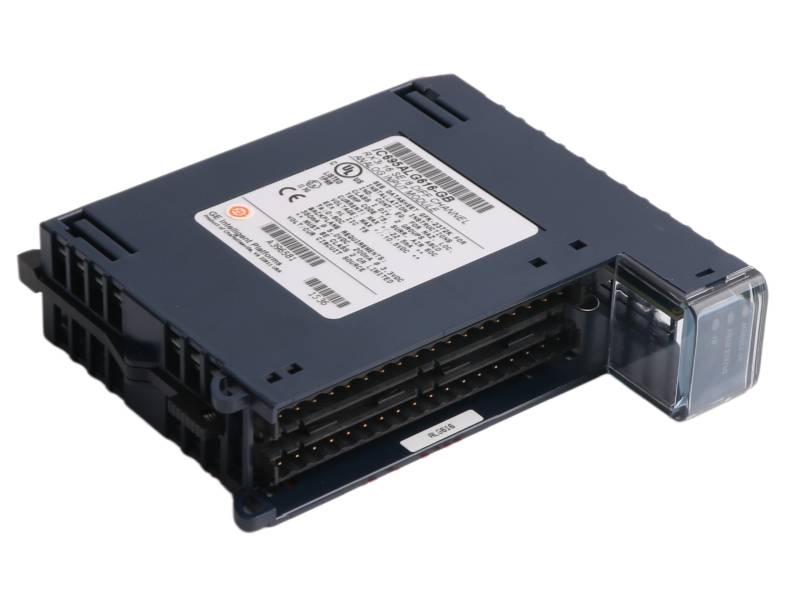

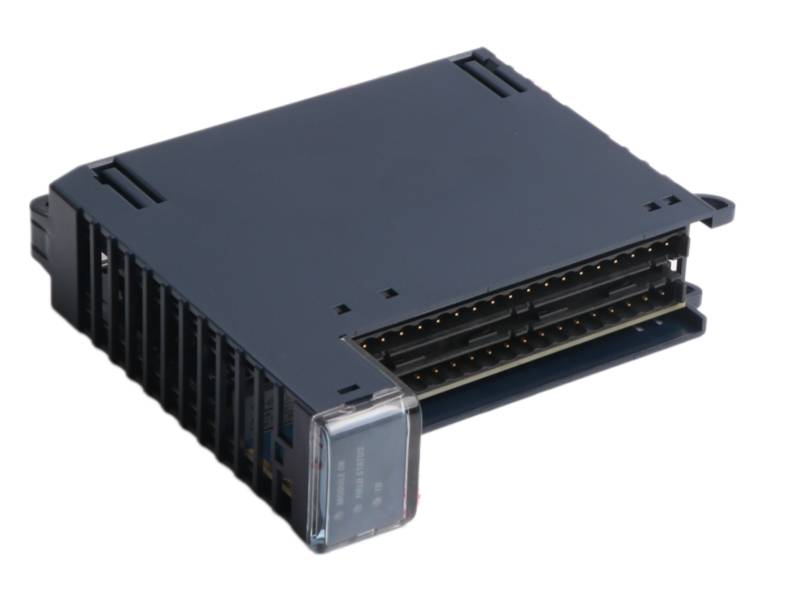

The GE PACSystems RX3i IC695ALG616 is an RX3i non-isolated differential analog input module offering 16 single-ended or 8 differential channels, configurable for voltage/current ranges with 24-bit resolution.

Product Advantages

High Channel Density: Provides 16 single-ended or 8 differential configurable channels in a single slot, maximizing I/O capacity.

Flexible Input Ranges: Supports multiple current (±20mA, 0-20mA, 4-20mA) and voltage (±10V, 0-10V, ±5V, 0-5V, 1-5V) options.

24-Bit High Resolution: Delivers precise measurements with 24-bit ADC conversion for accurate data acquisition.

Comprehensive Diagnostics: Features open-circuit detection, alarm reporting, and terminal block insertion/removal detection for enhanced reliability.

Software-Configurable: No jumpers required; full autocalibration and configurable filters (8Hz to 500Hz) simplify setup.

Flexible Scan Times: Adjustable acquisition cycles optimize performance based on filter selection and application needs.

FAQ

Q1: How many input channels does the IC695ALG616 provide?

A1: It provides 16 single-ended or 8 differential input channels.

Q2: What current and voltage ranges are supported?

A2: Current ranges: 0-20mA, 4-20mA, ±20mA. Voltage ranges: ±10V, 0-10V, ±5V, 0-5V, and 1-5V.

Q3: What terminal blocks are compatible with this module?

A3: It is compatible with Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), and Extended Spring-style (IC694TBS132) terminal blocks.

Q4: What software is required for configuration?

A4: Machine Edition version 5.0 SP3 Logic Developer-PLC or later must be used.

Q5: What filter options are available for input channels?

A5: Filter options include 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, and 500Hz.
