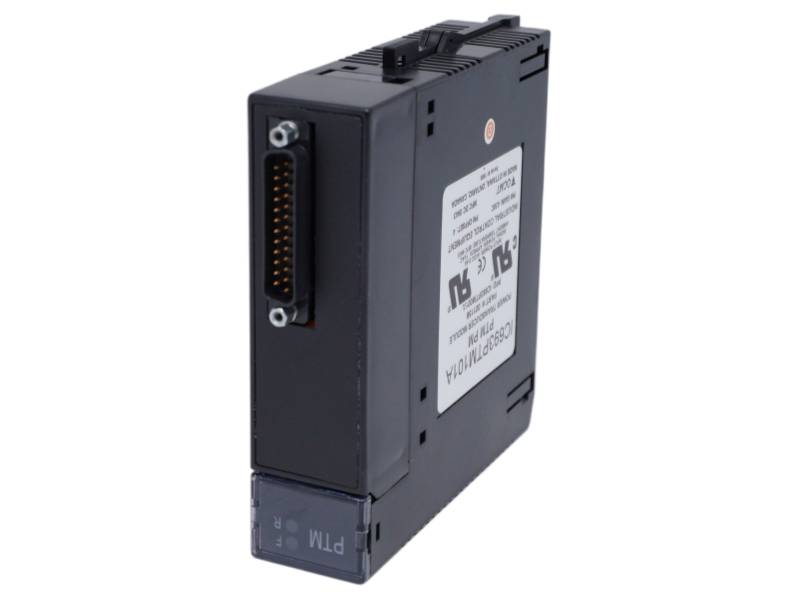

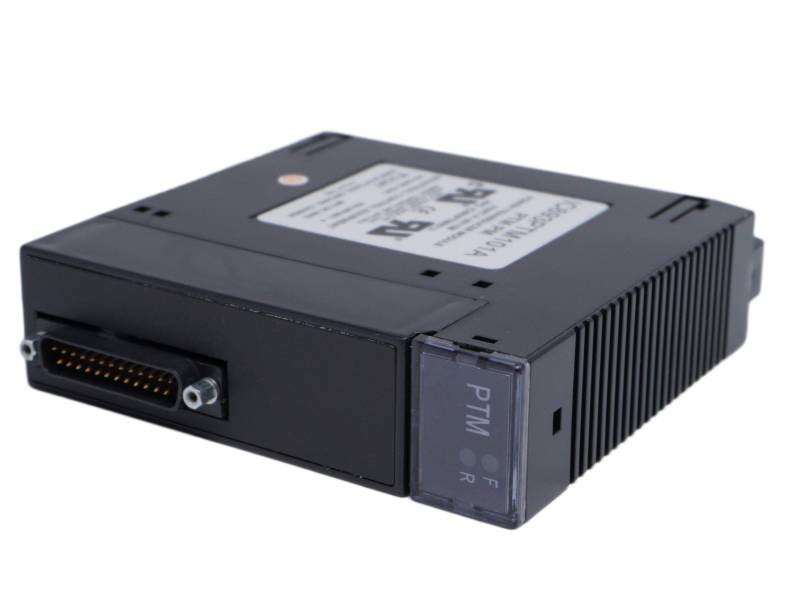

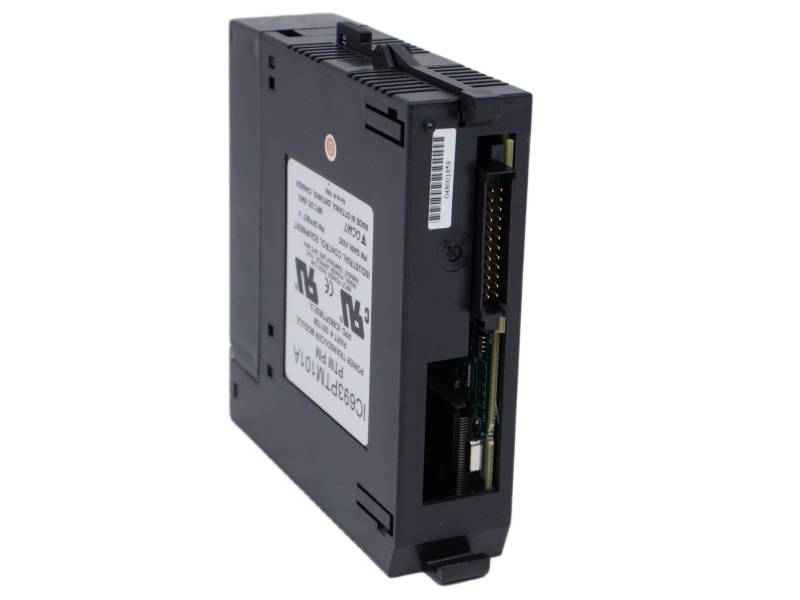

IC693PTM101A Overview

The POWER TRANSDUCER MODULE General Electric IC693PTM101A is a Series 90-30 Power Transducer Module by Emerson. It measures power consumption or monitors generator/grid voltages and features configurable operating modes for flexible application.

Product Advantages

Multi-Parameter Monitoring: Measures voltage, current, kW, kVAR, kVA, kWh, power factor, frequency, and phase angles for comprehensive power analysis.

Flexible Operating Modes: Configurable for Single-mode, 3-phase mode, or Synchro monitor mode to suit diverse applications.

Fast Data Processing: Delivers calculation speeds of 20 ms at 50 Hz and 16.67 ms at 60 Hz for real-time monitoring.

High-Resolution Accuracy: Utilizes 14-bit resolution for precise measurement of electrical parameters.

Seamless Integration: Mounts directly to any Series 90-30 baseplate and communicates via standard %I, %Q, %AI, and %AQ registers.

Complete Kit Included: Comes with processing module, interface board, and IC693CBL340 cable for simple installation.

FAQ

Q1: What is the primary function of the HE693THM884?

A1: It is a high-resolution thermocouple input module that allows direct connection of J and K type sensors to a PLC without external signal processing.

Q2: What is the resolution and scan rate of this module?

A2: It features 0.1°C resolution with an 18-bit integrating A/D converter and scans 40 channels per second.

Q3: How many channels and alarm bits does it have?

A3: It has eight thermocouple channels, plus 16 %I alarm bits providing open circuit and setpoint alarms for each channel.

Q4: What temperature ranges are supported for J and K types?

A4: For J-type, the range is -210 to +760°C. For K-type, the range is -270 to +1372°C.

Q5: What cold junction compensation feature is available?

A5: Revision H or later supports auto-detected external AD592 compensation, allowing remote isothermal terminal strip operation.
