IC695ALG508 Overview

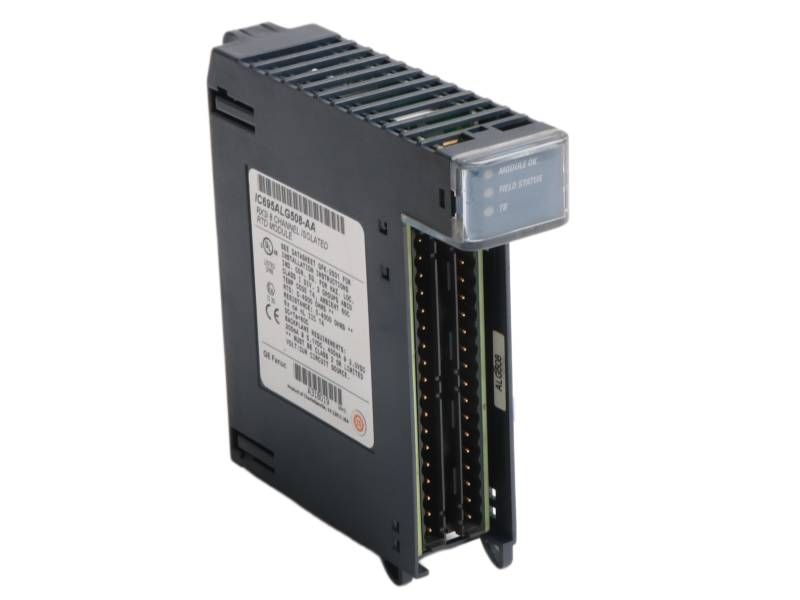

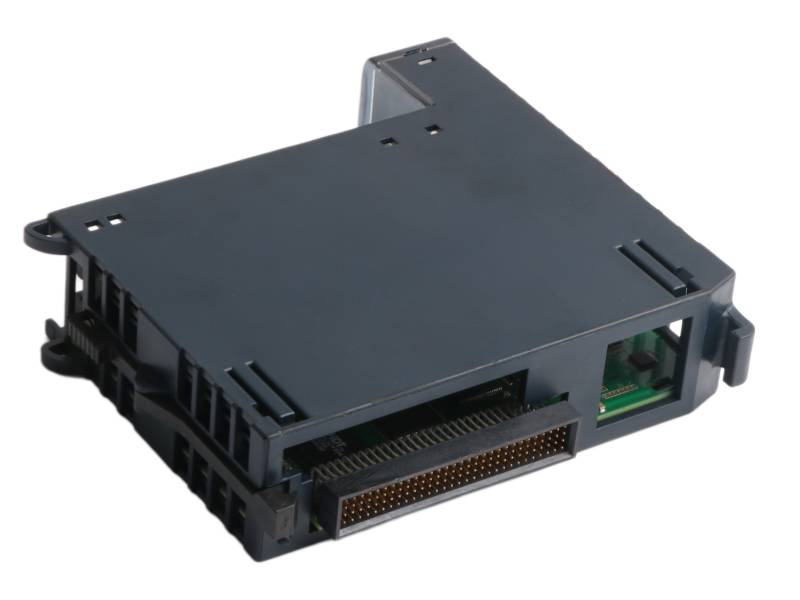

The ISOLATED RTD INPUT MODULE General Electric IC695ALG508 is an RX3i RTD Input module with eight isolated differential channels. It supports various RTD types (Platinum, Nickel, Copper) and direct resistance inputs up to 4200 ohms.

Product Advantages

Eight Isolated Channels: Features 8 differential inputs with isolation for reliable temperature monitoring in industrial environments.

Multiple RTD Support: Compatible with Platinum, Nickel, Copper, and Nickel-Iron RTD types for versatile application flexibility.

Direct Resistance Measurement: Accepts resistance inputs up to 4200 ohms across six selectable ranges.

Flexible Wiring Options: Supports 2, 3, or 4-wire RTD connections to accommodate various installation requirements.

Hot-Swap Capability: Allows module removal and insertion under power (RIUP) without system shutdown.

Configurable Filtering: Offers adjustable notch filters from 2.3 Hz to 28 Hz for noise rejection and signal conditioning.

FAQ

Q1: How many input channels does the IC695ALG508 have?

A1: It features eight (8) isolated, differential RTD input channels.

Q2: What RTD types are supported by this module?

A2: It supports Platinum 385, Platinum 391.6, Nickel 672, Nickel 618, Nickel-Iron 518, and Copper 426 RTDs.

Q3: Can this module measure direct resistance?

A3: Yes, it accepts direct resistance inputs up to 4200 ohms across multiple ranges.

Q4: What wiring configurations are supported for RTDs?

A4: The module supports 2-wire, 3-wire, and 4-wire RTD connections.

Q5: Does the module support hot-swapping?

A5: Yes, it supports Removal and Insertion Under Power (RIUP) for easy maintenance.
