IC695ALG312 Overview

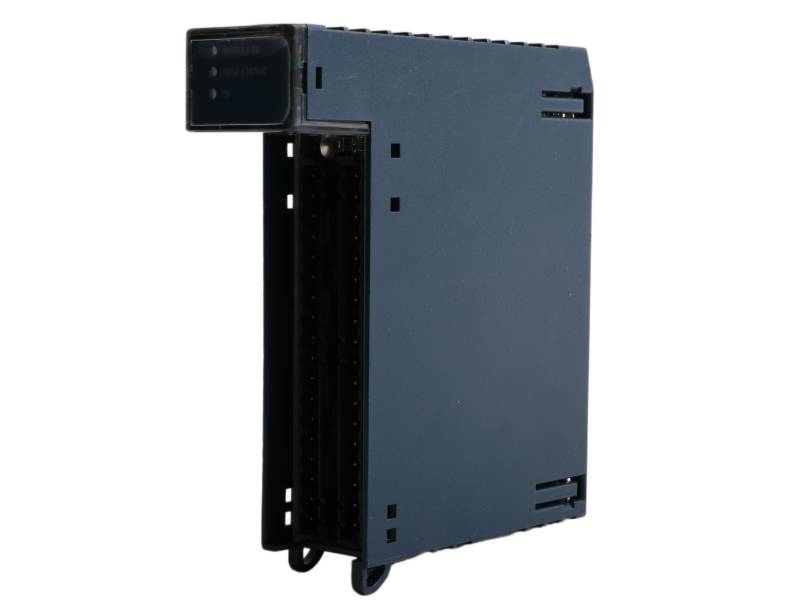

The IC695ALG312 General Electric PACSystems RX3i Controller is an RX3i thermocouple input module featuring 12 isolated channels. It supports multiple thermocouple types (J, K, T, etc.) and provides comprehensive diagnostics with configurable filters.

Features and Benefits

12 Isolated Channels: Provides 12 thermocouple input channels with channel-to-channel isolation for reliable temperature measurement.

Multiple Sensor Support: Compatible with J, K, T, E, R, S, B, N, and C thermocouple types for versatile application flexibility.

Comprehensive Diagnostics: Features open wire, short circuit, rate of change, and multiple alarm conditions for enhanced system monitoring.

Configurable Filtering: Offers notch filters from 2.3 Hz to 28 Hz per channel to optimize noise rejection.

Cold Junction Compensation: Includes autodetect external AD592 cold junction compensation for accurate temperature readings.

High Resolution: Provides 32-bit IEEE floating point or 16-bit integer data format for precise temperature processing.

FAQ

Q1: How many channels does the IC695ALG312 thermocouple input module have?

A1: It features 12 thermocouple input channels.

Q2: What thermocouple types are supported by this module?

A2: It supports J, K, T, E, R, S, B, N, and C thermocouple types.

Q3: What diagnostic features are available on this module?

A3: Diagnostics include open wire, short circuit, positive/negative rate of change, and high/high-high/low/low-low alarms.

Q4: Does this module provide channel-to-channel isolation?

A4: Yes, it offers 250 VAC continuous isolation with 1500 VAC for 1 minute and 2550 VDC for 1 second.

Q5: What cold junction compensation feature is available?

A5: It includes an autodetect external AD592 cold junction compensation feature for accurate temperature measurements.
