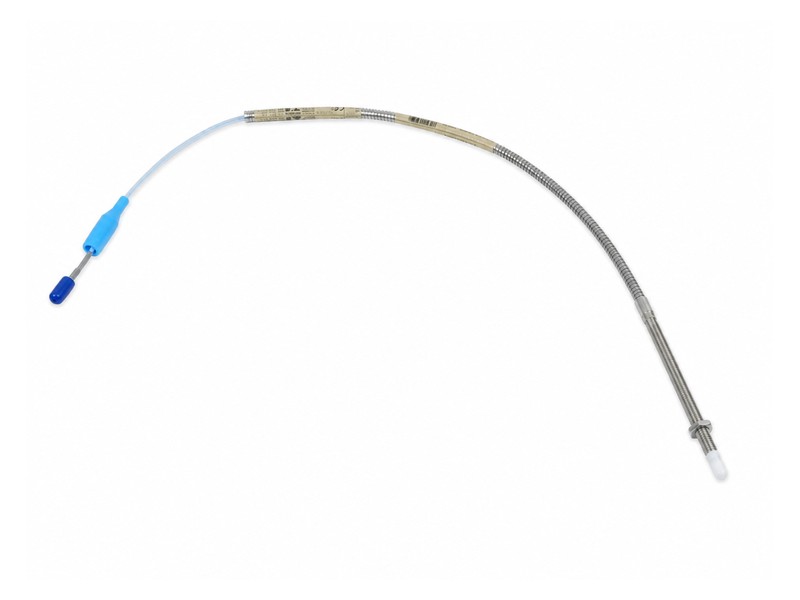

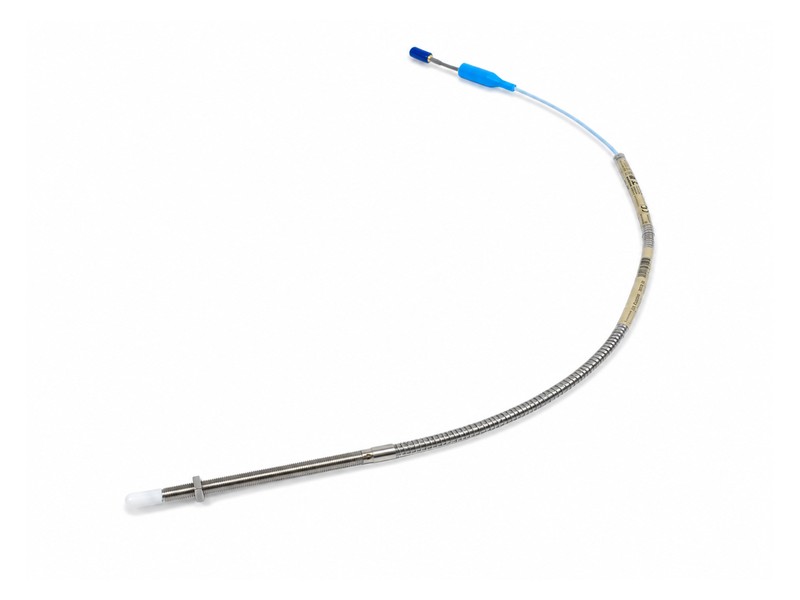

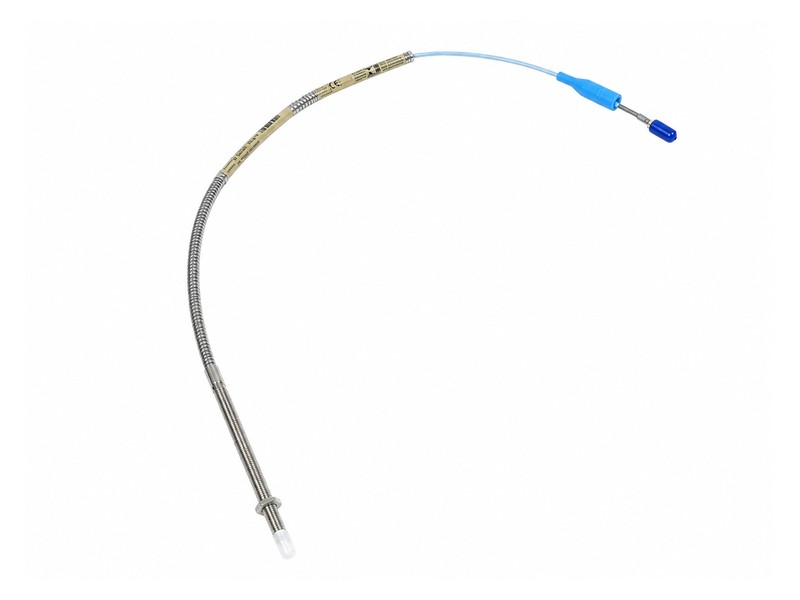

Armored M8 proximity probe with 100 mm case, 0.5 m total length and protected ClickLoc connector
|
Configuration snapshot
M8 x 1 probe
0 mm unthreaded length 100 mm case length 0.5 m total length Stainless-steel armor ClickLoc connector protector |
Short Product SummaryBently Nevada 330904-00-10-05-01-BR is a 3300 XL NSv proximity probe configured with an M8 x 1 threaded body, stainless-steel cable armor, a 100 mm overall case length and 0.5 m total length. The miniature coaxial ClickLoc connection includes a connector protector for the specified standard cable option. The probe is intended for matched NSv proximity transducer systems used where small target areas or restricted mounting geometry require the NSv form factor. For replacement or project procurement, confirm the complete suffix, BR approval requirement, extension cable, Proximitor Sensor, system length, condition and availability before ordering. |
| Field | Confirmed or Required Detail |
|---|---|
| Manufacturer | Bently Nevada |
| Complete part number | 330904-00-10-05-01-BR |
| Product type | 3300 XL NSv armored M8 proximity probe |
| Series | 3300 XL NSv Proximity Transducer System |
| Product condition | Contact us to confirm the offered unit |
| Hardware revision / serial number | Contact us to confirm |
| Firmware / software version | Not applicable to the passive probe; confirm associated system electronics separately |
| Availability / lead time | Contact us to confirm |
| Warranty | Scope and period confirmed in the written quotation |
| Shipping | Worldwide shipping options available; method and cost confirmed by destination and trade terms |
| Country of origin | Contact us to confirm the offered unit |
| Compatibility | Matched 3300 XL NSv system components and total system length must be confirmed |
| 330904 | 3300 NSv M8 x 1 probe with stainless-steel armor |
| 00 | 0 mm unthreaded length |
| 10 | 100 mm overall case length |
| 05 | 0.5 m total length |
| 01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| BR | Approval suffix; contact us to confirm the exact approval scope for the offered configuration |
| Specification | 330904-00-10-05-01-BR |
|---|---|
| Probe thread | M8 x 1 |
| Maximum thread engagement | 12 mm |
| Cable protection | Stainless-steel armor |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Probe operating and storage temperature | -52 C to +177 C |
| Humidity | 100% condensing, non-submersible when connectors are protected |
The NSv probe forms the sensing end of a matched proximity transducer system. Its compact M8 x 1 body supports installations with restricted probe access or smaller target areas. Final measurement performance depends on the complete, matched probe, extension cable and Proximitor Sensor combination.
The condition of the offered unit is defined by the written quotation and order confirmation. Review may include complete part-number and suffix comparison, exterior inspection, thread and connector checks, cable and armor inspection, label and serial-number recording, and functional checks when suitable procedures and equipment are available. Compatibility questions are evaluated separately from product quality claims.
| Is 330904-00-10-05-01-BR currently available? | Availability changes. Send the exact model, quantity and destination for a current check. |
| What should be matched before replacement? | Confirm the complete suffix, thread, case length, total length, connector, extension cable, Proximitor Sensor and total system length. |
| What does the BR suffix mean? | It is an approval suffix. Contact us to confirm the exact approval scope for the offered configuration. |
| Can product and label photos be supplied? | Available product and label photos can be provided for order verification. |
| Can this item be shipped internationally? | Worldwide shipping can be arranged. Method and cost depend on destination, packed dimensions, weight and trade terms. |
| What warranty is provided? | The applicable warranty scope and period are stated in the written quotation and order confirmation. |
Support is organized around the complete 330904-00-10-05-01-BR reference, the offered unit and the buyer's installation requirements.
| Service Stage | What We Check or Provide |
|---|---|
| Exact model control | Complete part number, suffix, quantity, installed label and required documentation. |
| System compatibility review | Probe thread, case length, total length, extension cable, Proximitor Sensor, connector and approval requirements. |
| Offer confirmation | Condition, revision, serial number, availability, lead time and included accessories confirmed in writing. |
| Inspection record | Exterior, thread, connector, cable armor and label review; functional checks when applicable. |
| Photo verification | Available product, connector and label photos supplied for review before shipment. |
| Protective packing | Probe tip, threads, armor and connector protected; the assembly is immobilized for the confirmed route. |
| Worldwide delivery | Carrier, freight, export documentation and trade terms confirmed from destination and packed shipment data. |
| Tracking and receipt | Shipment tracking supplied, with receipt and packaging checks recommended upon arrival. |
| Warranty and returns | Warranty scope, return window and return-authorization procedure follow the written quotation and order terms. |
