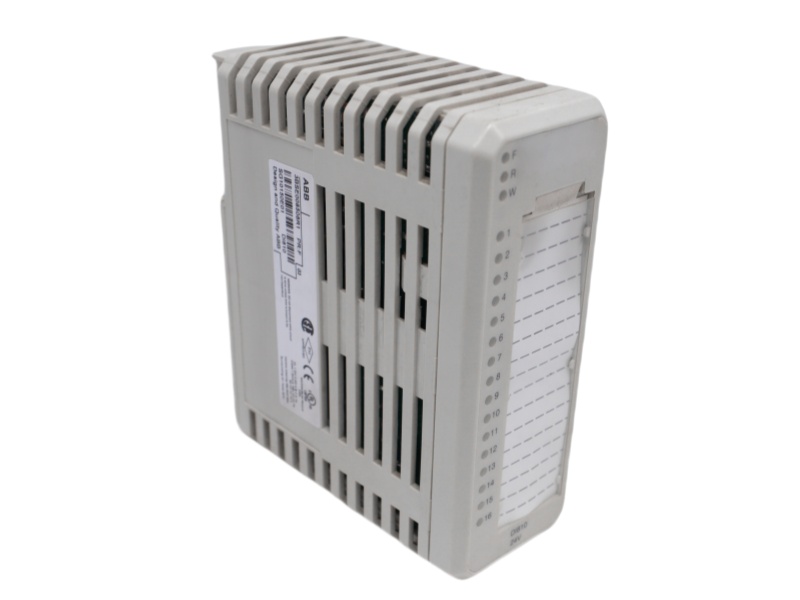

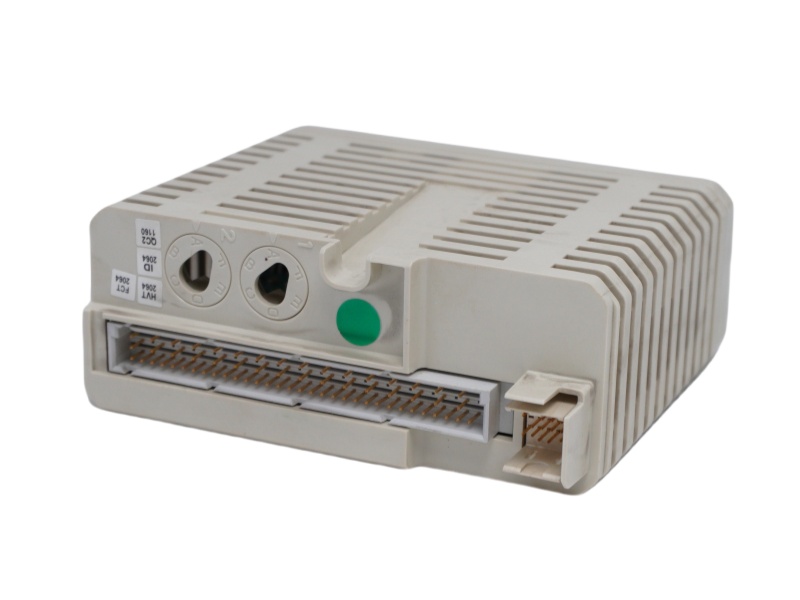

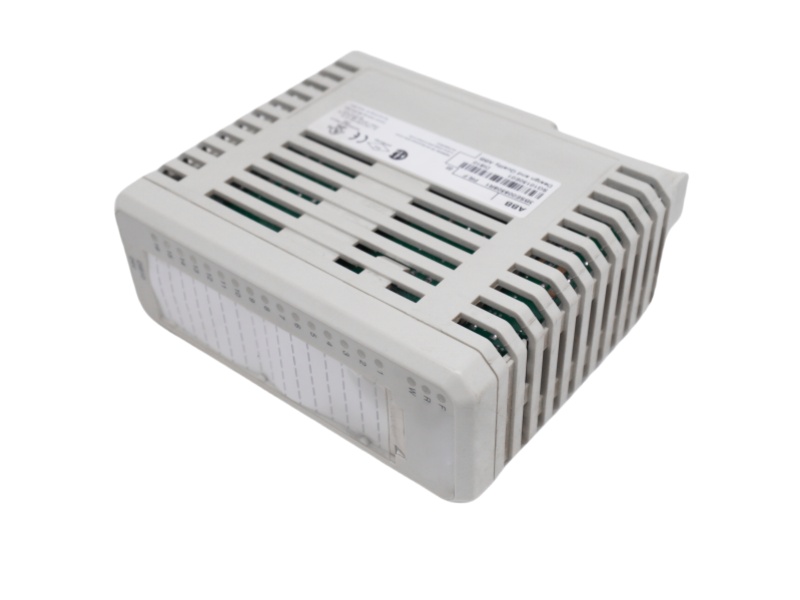

The ABB DI810 3BSE008508R1 Digital Input Module is a robust 16-channel digital input module designed for S800 I/O systems, delivering reliable performance in demanding industrial environments. With an input voltage range of 18-30V DC and 6mA current consumption at 24V, this module ensures efficient signal acquisition while maintaining low power consumption. The DI810 3BSE008508R1 PDF is particularly suited for applications requiring precise monitoring of digital signals in process control and automation systems.

A standout feature of the ABB 3BSE008508R1 DI810 Digital Input 24V 16 ch is its advanced isolation design, dividing the 16 inputs into two independently isolated groups of eight channels each. Each group includes a dedicated voltage supervision input that monitors process voltage integrity. If voltage disappears, the module generates error signals accessible via the ModuleBus, enabling quick fault detection and system diagnostics. This intelligent design enhances system reliability and simplifies maintenance procedures.

The DI810 Digital Input Module 3BSE008508R1 incorporates multiple protection mechanisms, including current limiting components, EMC protection, and optical isolation barriers on each channel. Bright LED status indicators provide instant visual feedback for every input state, facilitating easy troubleshooting. These features make the ABB DI810 3BSE008508R1 exceptionally durable against electrical noise and voltage fluctuations common in industrial settings.

The S800 I/O DI810 3BSE008508R1 ABB offers optimal performance. Its combination of channel isolation, comprehensive diagnostics, and robust construction makes it ideal for critical applications in power generation, oil and gas, and manufacturing industries.
