Metric PROXPAC XL Proximity Transducer Assembly

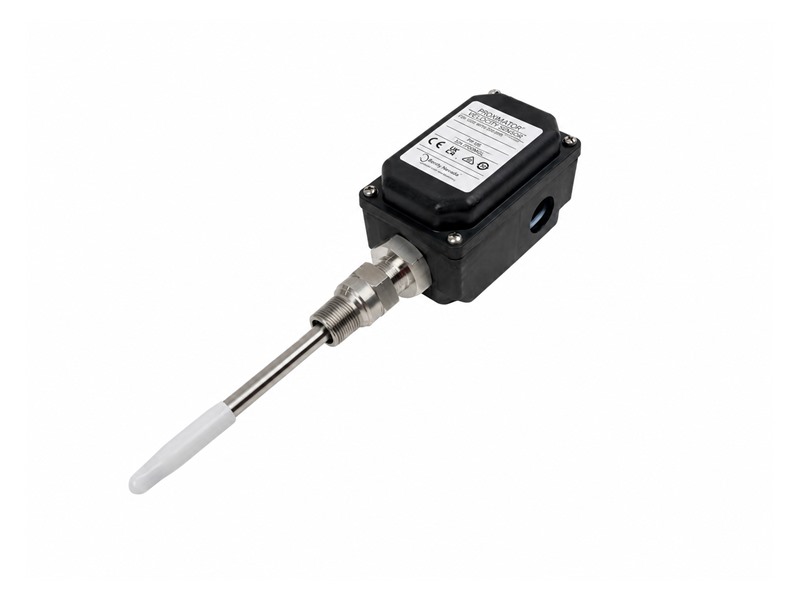

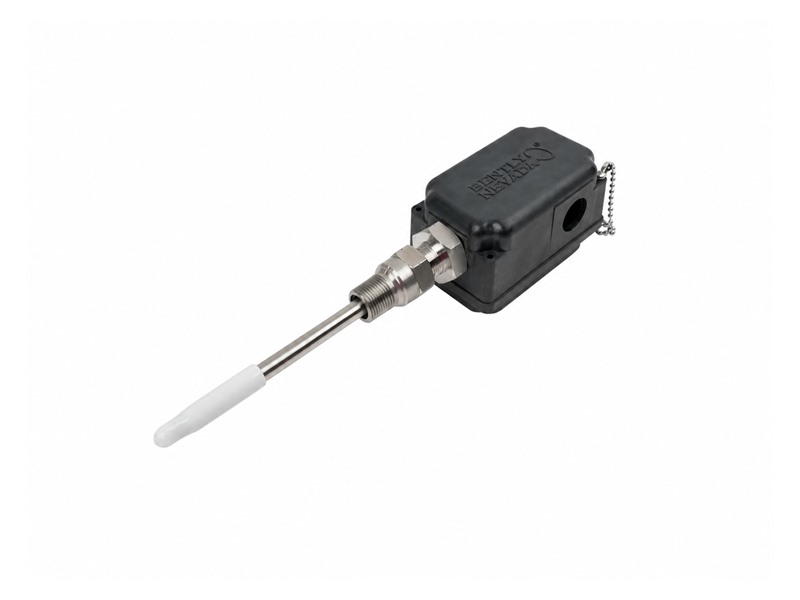

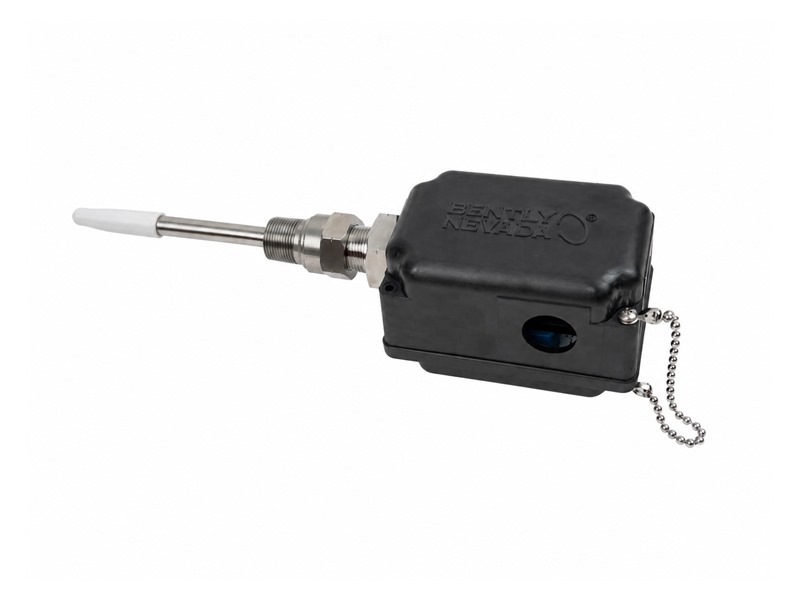

Bently Nevada 330881-16-11-165-07-02 is a metric PROXPAC XL self-contained proximity transducer assembly. It integrates the 3300 XL 8 mm probe and matched Proximitor Sensor inside a Type 4X / IP66 PPS enclosure for direct field wiring to the monitoring system. The suffix specifies the non-approved 8 mm probe, a 110 mm standoff adapter, 165 mm probe penetration, one PG21 x M20 fitting with two plugs, and the required 3/4-14 NPT mounting thread.
| Field | Confirmed Detail |
|---|---|
| Manufacturer | Bently Nevada |
| Complete part number | 330881-16-11-165-07-02 |
| Product type | Metric PROXPAC XL Proximity Transducer Assembly |
| Probe and approvals option | 3300 XL 8 mm probe without approvals |
| Standoff adapter | 110 mm |
| Probe penetration | 165 mm |
| Fittings option | One PG21 x M20 fitting and two plugs |
| Mounting thread | 3/4-14 NPT |
| Integrated sensor | 3300 XL Proximitor Sensor |
| Housing rating | Type 4X and IP66 |
| Housing material | Conductive fiber-reinforced PPS thermoplastic |
| Condition / revision / serial number | Contact us to confirm the offered unit |
| Availability / lead time / origin | Contact us to confirm |
| Warranty | Scope and period confirmed in the written quotation |
| 16 | 3300 XL 8 mm probe without approvals |
| 11 | 110 mm standoff adapter |
| 165 | 165 mm probe penetration |
| 07 | One PG21 x M20 fitting and two plugs |
| 02 | 3/4-14 NPT mounting thread |
| Supply | -17.5 Vdc to -26 Vdc without barriers, 12 mA maximum |
| Linear range | 2 mm (80 mils), approximately 0.25 mm to 2.3 mm from target |
| Recommended gap | 1.27 mm (50 mils) |
| Output resistance | 50 ohms |
Compatibility cannot be confirmed from the family name alone. Compare the complete part number, suffix, probe family, mounting dimensions, electrical system length, conduit arrangement and approval requirement with the installed equipment. Please contact us to confirm the exact revision, condition and availability before ordering.
The supplied condition is defined in the written quotation and order confirmation. Review may include complete part-number comparison, exterior inspection, connector and thread checks, label and serial-number recording, and functional testing when suitable procedures and equipment are available.
| Is 330881-16-11-165-07-02 currently available? | Availability changes. Send the exact model, quantity and destination for a current check. |
| How is compatibility confirmed? | Provide the installed label, machine drawing and related probe-system references. |
| Can label photos be supplied? | Available product and label photos can be provided for order verification. |
| Is worldwide shipping available? | Yes. The method and cost depend on destination, packed dimensions, weight and trade terms. |
| What warranty applies? | The applicable scope and period are stated in the written quotation and order confirmation. |
Support is organized around the complete 330881-16-11-165-07-02 reference, the offered unit and the installation requirements stated by the buyer.
| Service Stage | What We Check or Provide |
|---|---|
| Model control | Complete part number, suffix, quantity and label photos. |
| Technical review | Probe family, penetration, thread, fittings, approvals and installation geometry. |
| Condition confirmation | Condition, revision, serial number and included accessories stated before order placement. |
| Inspection record | Exterior, connector, thread and label review; functional checks when applicable. |
| Protective packing | Probe, sleeve, threads and enclosure protected for the confirmed transport route. |
| Worldwide delivery | Carrier, freight and trade terms confirmed from destination, weight and dimensions. |
| Tracking and documents | Shipment tracking and available commercial or customs documents. |
| Warranty and returns | Written warranty scope and return-authorization procedure under the confirmed terms. |
