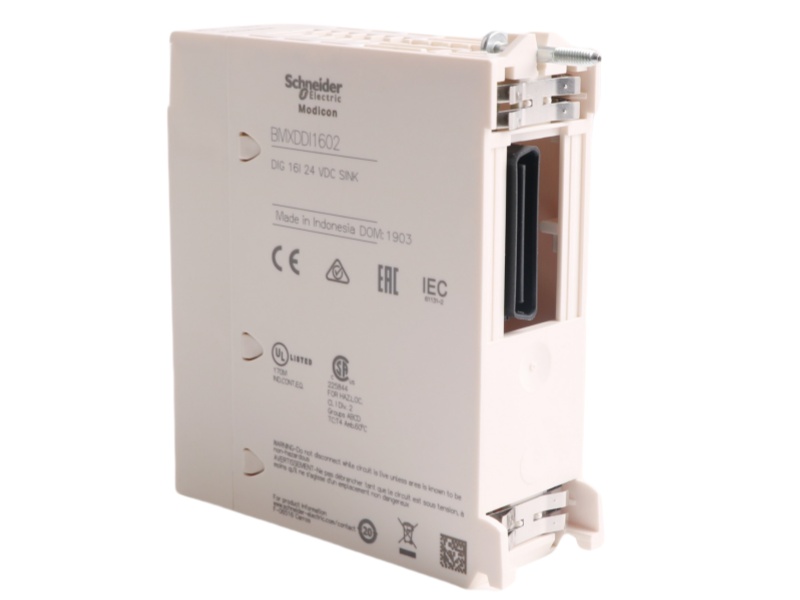

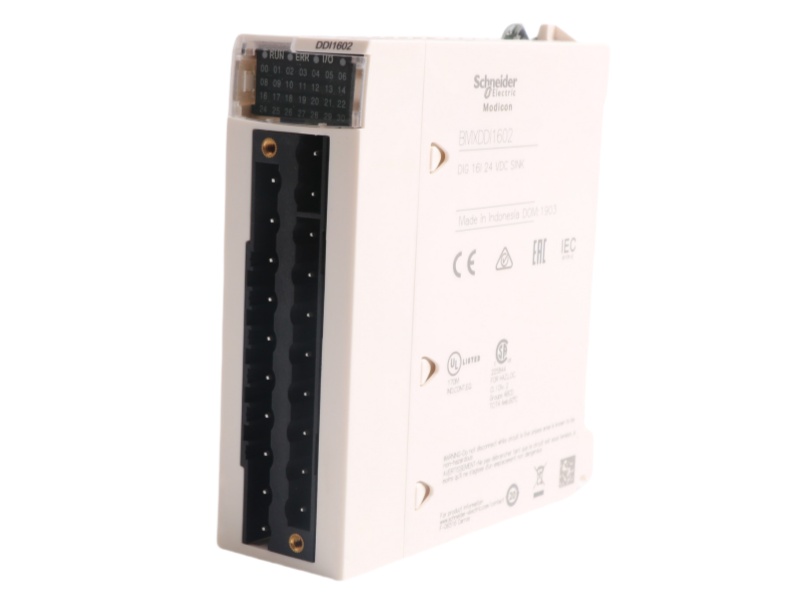

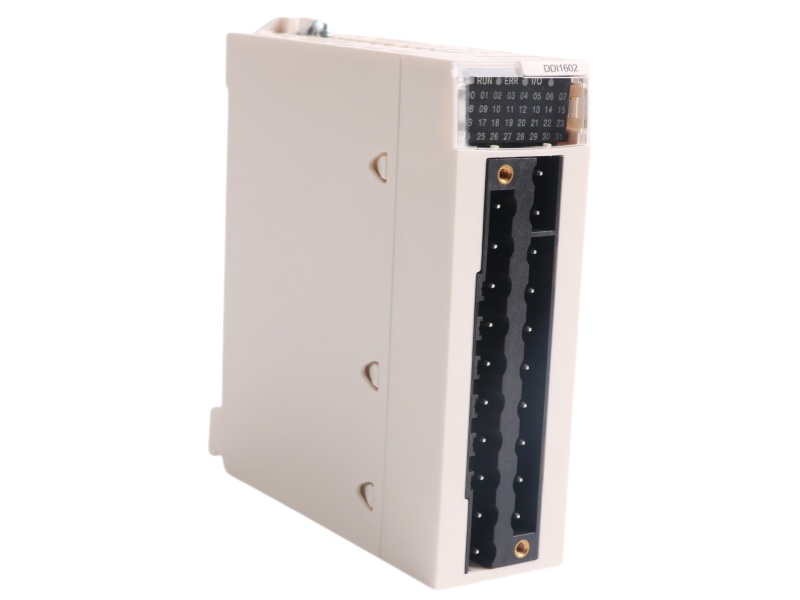

The Schneider Electric BMXDDI1602 Discrete Input Module  is a professional-grade 16-channel discrete input module designed for the Modicon X80 automation platform. This compact module features 24V DC isolated inputs with positive logic, providing reliable signal acquisition for industrial control systems. With its space-saving single-slot design (0.12kg weight) and 20-way removable terminal block, the Schneider Electric BMXDDI1602 offers convenient installation and maintenance in crowded control cabinets. The module's 3.5mA input current and 2.5W power dissipation ensure energy-efficient operation.

Engineered for precision, the Schneider Electric BMXDDI1602 Digital I/O Module delivers fast signal processing with a typical response time of 4ms (maximum 7ms), making it suitable for time-critical applications. Its >10MΩ insulation resistance at 500V DC provides excellent electrical isolation between channels. The IP20-rated enclosure protects the module's electronics from dust and minor contact, while the operating temperature range of 0-60°C ensures stable performance in typical industrial environments.

As part of Schneider Electric's comprehensive Modicon X80 system, the Digital I/O Module BMXDDI1602 Schneider Electric simplifies system integration and reduces wiring complexity. The module's French-designed construction meets rigorous industrial standards, and its global certifications ensure worldwide applicability. The 24V DC positive logic design makes it compatible with a wide range of industrial sensors and switching devices.

The BMXDDI1602 Schneider Electric discrete IO 24 VDC module represents Schneider Electric's commitment to delivering high-performance automation components.The BMXDDI1602 Schneider Electric PDF combination of channel density, fast response, and reliable operation makes it an ideal choice for manufacturing, process control, and machinery applications requiring robust digital input capabilities.
