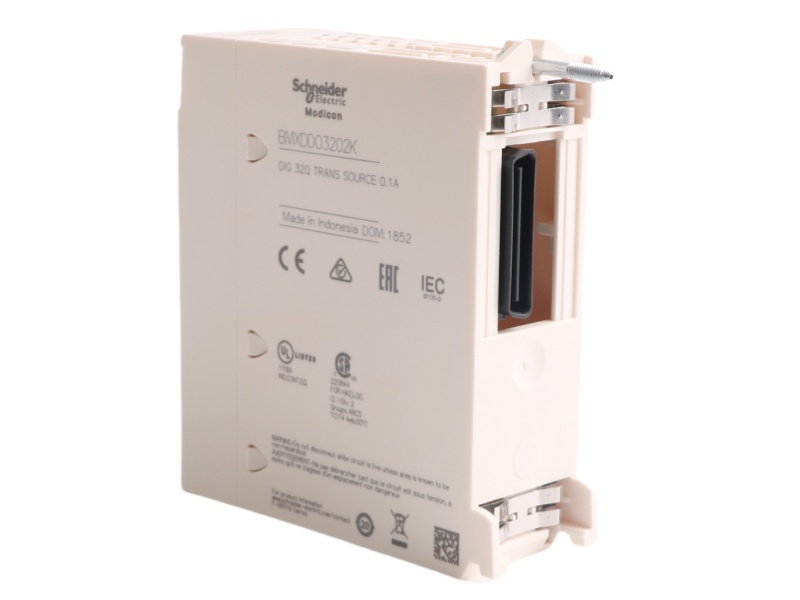

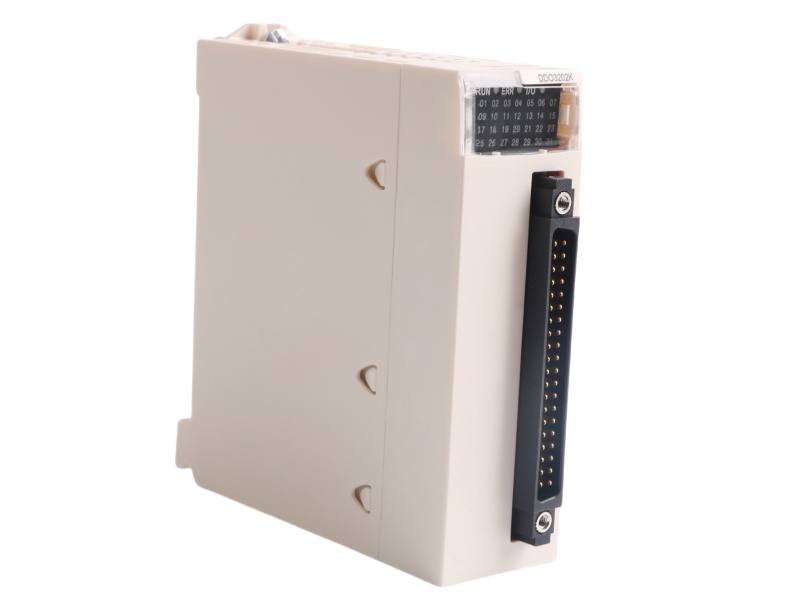

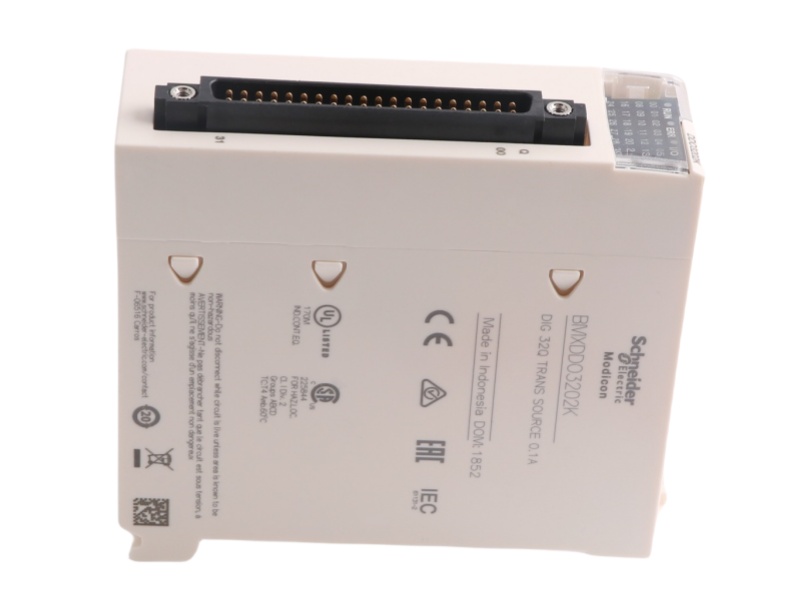

The Schneider Electric BMXDDO3202K Discrete Output Module is a professional-grade 32-channel discrete output module designed for the Modicon X80 automation platform. This compact module features 24V DC solid-state outputs with positive logic, providing reliable control for industrial applications. With its space-saving design (0.12kg weight) and EN/IEC 61131-2 compliance, the Modicon X80 Modules Schneider Electric BMXDDO3202K delivers exceptional performance in a single-slot form factor (3.1×10.5×10.3cm). The module's 0.1A output current per channel and 3.2A maximum current capacity make it ideal for controlling various industrial devices.

Engineered for precision, the Discrete Output Module BMXDDO3202K Schneider Electric features low leakage current (<0.1mA) and minimal voltage drop (<1.5V), ensuring efficient operation. Its >10MΩ insulation resistance at 500V DC provides excellent electrical isolation between channels. The IP20-rated enclosure protects the module's electronics while the 0-60°C operating temperature range guarantees stable performance in typical industrial environments. With 3.6W power dissipation, this module maintains energy efficiency in high-density applications.

As part of Schneider Electric's comprehensive Modicon X80 system, the BMXDDO3202K PLC I/O Module Schneider Electric simplifies system integration and reduces wiring complexity. The module's French-designed construction meets rigorous industrial standards, featuring solid-state technology for enhanced reliability. Its 24V DC positive logic design ensures compatibility with a wide range of industrial actuators and control devices.

The Schneider Electric M340 Series PLC I/O Module BMX DDO 3202K represents Schneider Electric's commitment to delivering high-performance automation components. This module is particularly valuable for applications requiring multiple control points, including manufacturing automation, material handling systems, and process control installations. Its combination of channel density, reliable solid-state outputs, and compact design makes it an outstanding choice for modern industrial control systems.
