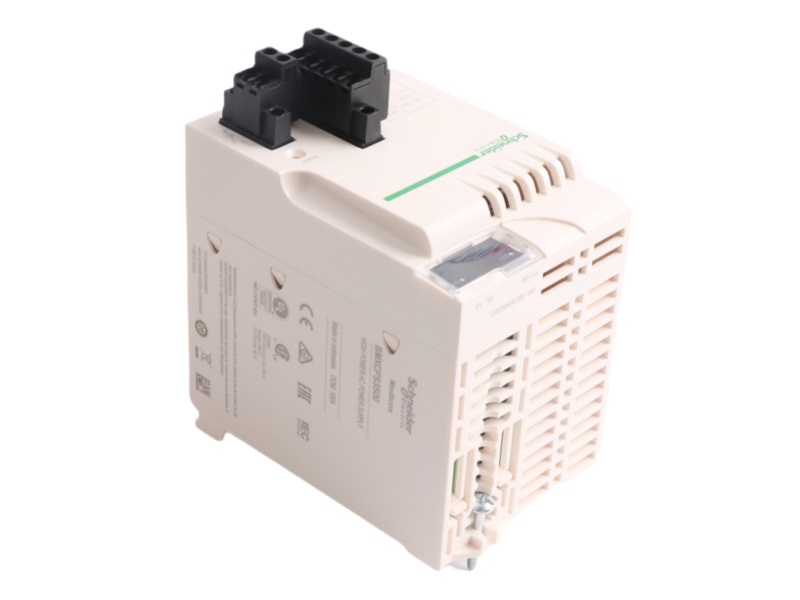

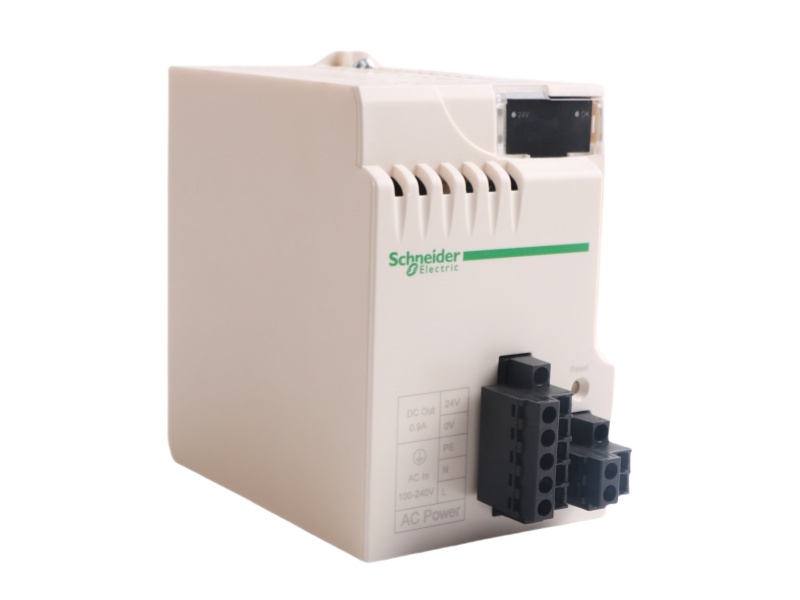

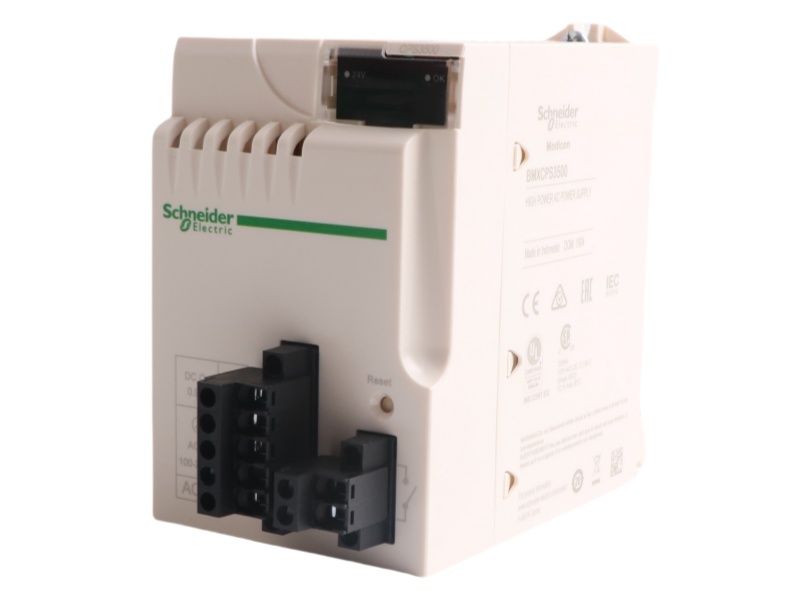

Schneider Electric BMXCPS3500 Power Supply Module

Inquiry now

BMXCPS3500 Product datasheet

Model number:	BMXCPS3500	Module Type：	Power Supply Module
Manufacture:	Schneider Electric	Condition：	Brand New
Range of Product:	Schneider Electric	Lead time：	In Stock
Weight:	1.36 kg	HS CODE：	8537101190
Dimension:	6.7x15.4x58.5cm	MOQ:	1
Product Origin:	France	System：	PLC
Discontinued on:	active	Communication Service:	Ethernet router

BMXCPS3500 Functional Description

The Schneider Electric BMXCPS3500 Power Supply Module is a versatile power supply module designed for the Modicon X80 platform, supporting both M580 and M340 Programmable Automation Controllers (PAC). With a wide input voltage range of 100-240V AC, this robust module delivers multiple output configurations including 31.2W at 24V DC for I/O modules and 15W at 3.3V DC for logic circuits. The BMXCPS3500 Schneider Electric I/O module logic power supply features intelligent power distribution with a maximum dissipation of 8.5W, ensuring efficient operation in medium to large industrial applications.

Engineered for reliability, the Power Supply Module BMXCPS3500 Schneider Electric incorporates comprehensive connection options including 2-pin alarm relay and 5-pin line supply connectors, along with protective earth for secure electrical integration. Its compact design (0.38kg) and IP20 rating make it suitable for space-constrained installations while maintaining operation in temperatures from 0°C to 60°C. The module's global certifications (CE, UL, CSA) and compliance with EN 61131-2 standards guarantee safe performance in demanding industrial environments.

As part of Schneider Electric's innovative Modicon X80 ecosystem, the BMXCPS3500 Schneider Electric PLC Power Supply helps reduce maintenance costs through standardized components and simplified inventory management. While not compatible with BMEXBP..02 backplanes, its 36W total secondary power capacity supports diverse automation needs. The module's high-quality construction and 50/60Hz network frequency tolerance ensure stable power delivery across global applications.

The PLC Power Supply Schneider Electric BMXCPS3500 represents Schneider Electric's commitment to advanced industrial power solutions, offering a perfect balance of performance and reliability. With storage capability from -40°C to 85°C and humidity resistance up to 95%, this power supply module provides a dependable foundation for critical automation systems, enhancing overall operational efficiency in process control applications.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

SCHNEIDER	MPCYT90NAN00N	SCHNEIDER	170XTS02100	SCHNEIDER	170AAO92100
SCHNEIDER	ME4U07AAA	SCHNEIDER	170XTS00100	SCHNEIDER	170AAI14000
SCHNEIDER	LXM15MD28N4	SCHNEIDER	170PNT11020	SCHNEIDER	140XTS00200
SCHNEIDER	BCH2MM0813CA6C	SCHNEIDER	170MCI02120	SCHNEIDER	140XCP51000
SCHNEIDER	ATV61HD37N4	SCHNEIDER	170MCI00702	SCHNEIDER	140XCP50000
SCHNEIDER	AS-S908-110	SCHNEIDER	170MCI00100	SCHNEIDER	140XCA71706
SCHNEIDER	AS-P890-000	SCHNEIDER	170M6467 3AUA0000062487	SCHNEIDER	140XBP01600
SCHNEIDER	990XCP98000	SCHNEIDER	170INT11003	SCHNEIDER	140XBP01000
SCHNEIDER	171CCS78000	SCHNEIDER	170ADO35000	SCHNEIDER	140XBP00600
SCHNEIDER	171CCC76010	SCHNEIDER	170ADI35000	SCHNEIDER	140XBE10000

Power Supply Module – Reliable Energy Solution for Industrial Automation

The Power Supply Module is a critical component in industrial control systems, designed to deliver stable and efficient power distribution for automation equipment. These modules typically convert incoming AC voltage (commonly 100-240V) to regulated DC outputs (such as 24V or 3.3V) to power PLCs, I/O modules, and sensors. Modern power supply modules like Schneider Electric's BMXCPS series feature compact designs, high power density, and intelligent thermal management for optimal performance.

Key characteristics include wide input voltage ranges, multiple protection circuits (overload/short-circuit), and high MTBF ratings for reliability. Advanced models offer diagnostic capabilities through alarm relays and LED indicators. Most industrial power supplies carry IP20 protection for basic environmental resistance and operate within 0-60°C ambient temperatures.

These modules form the backbone of automation racks, ensuring uninterrupted operation of control systems while meeting international safety standards like IEC 61131-2. Their modular design allows for easy maintenance and scalability in growing industrial applications.
