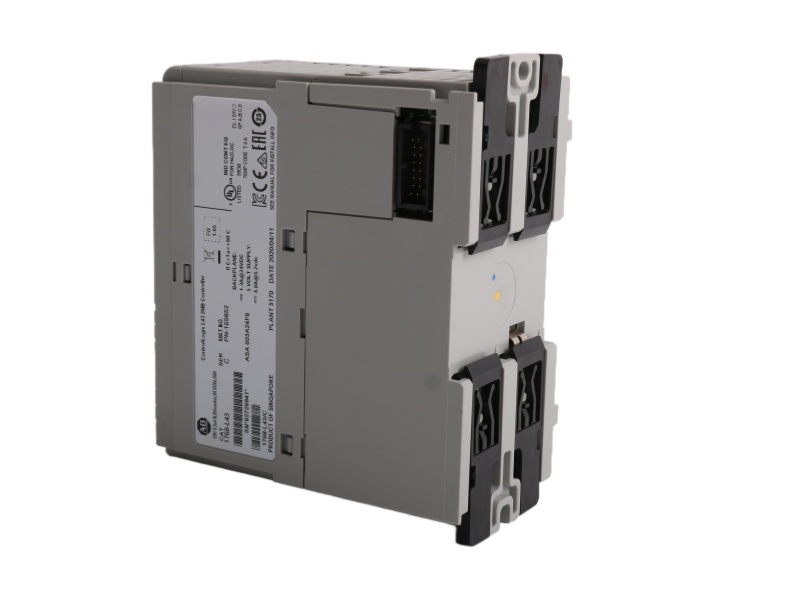

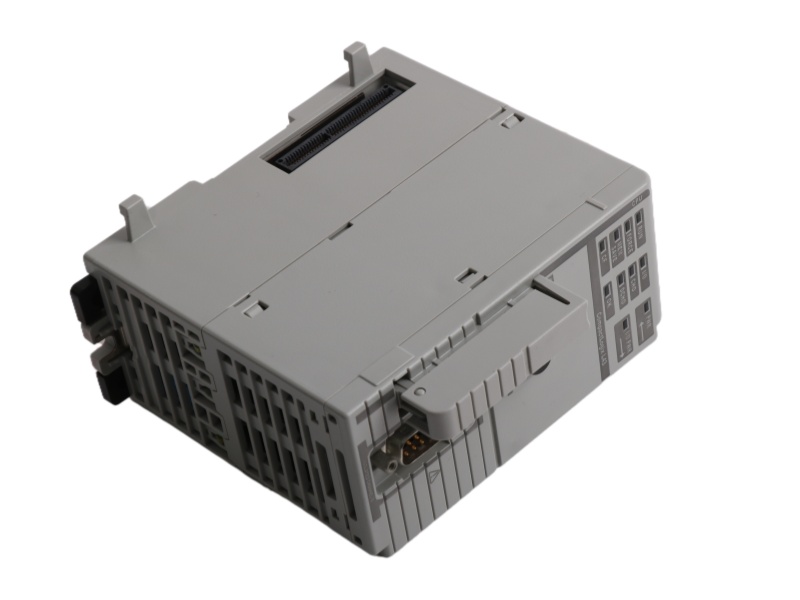

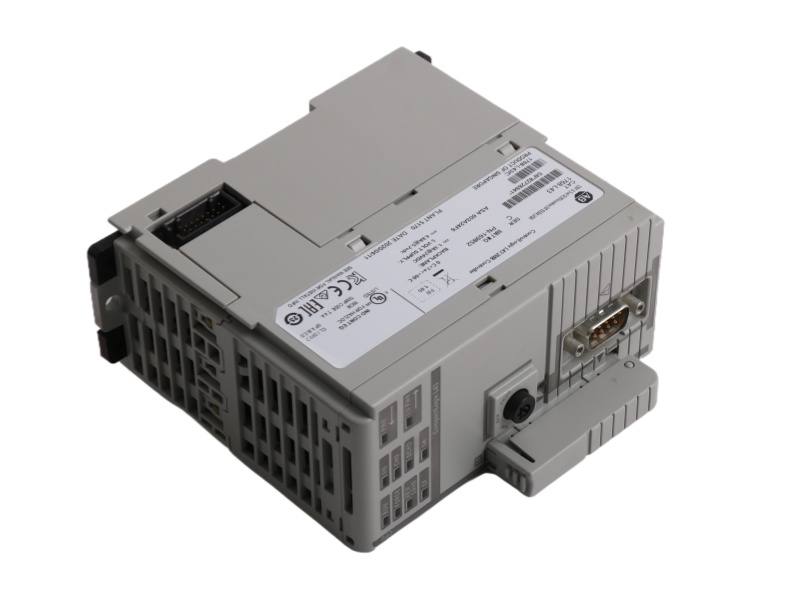

1768-L43 Product datasheet
|
Model number: |
1768-L43 |
|
Module Type： |
CompactLogix Power Supplies |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
Allen-Bradley |
|
Lead time： |
In Stock |
|
Weight: |
0.9kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x14.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
1768-L43 Functional Description
The Processor Module 1768-L43 Allen-Bradley is a versatile CompactLogix controller designed for medium-sized automation applications. It provides integrated motion control and supports various communication protocols. This Controller AB 1768-L43 features a built-in serial port and can connect to up to sixteen 1769 I/O modules.
With 2MB of user memory and support for an optional CompactFlash card, the controller ensures reliable program storage and transfer. It operates within a temperature range of 0 to 60°C and can be mounted using DIN rail or panel mounting methods.
The Allen-Bradley PLC Module 1768-L43 offers a backplane current of 1.3A at 24V and consumes up to 31.3W of power. Its front-panel key switch allows manual mode selection, and multiple status LEDs provide clear operational feedback.
Suitable for both standalone and integrated systems, this PROCESSOR MODULE 1768-L43 AB supports multiple programming languages including Ladder Logic and Function Block Diagramming, making it a flexible solution for industrial control.
