1768-ENBT Product datasheet
Model number: |
1768-ENBT |
|
Module Type: |
Ethernet Communication Module |
Manufacture: |
Allen-Bradley |
|
Condition: |
Brand New |
Range of Product: |
Allen-Bradley |
|
Lead time: |
In Stock |
Weight: |
0.9kg |
|
HS CODE: |
8537101190 |
Dimension: |
3.5x13x14.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
1768-ENBT Functional Description

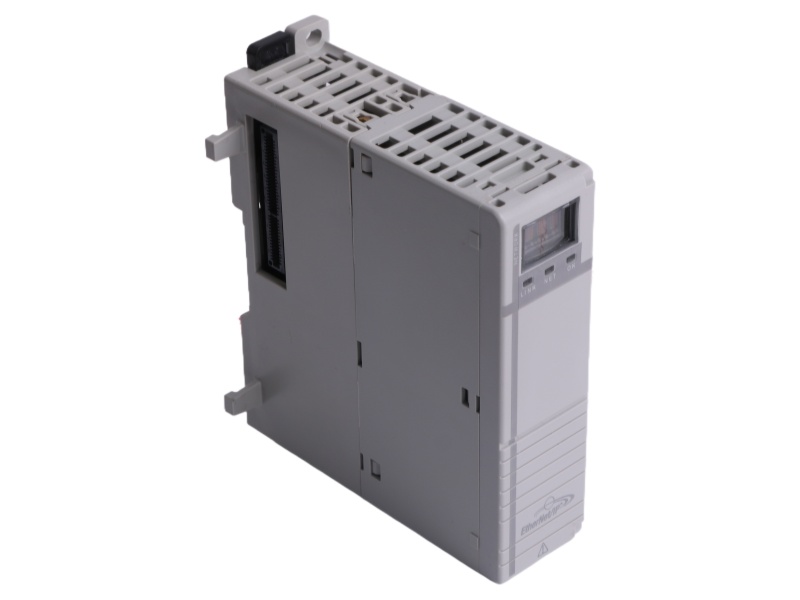

The Ethernet Communication Module 1768-ENBT Allen-Bradley is a communication module that adds EtherNet/IP capability to CompactLogix systems like the L43 and L45 controllers. This AB 1768-ENBT CompactLogix communication adapter enables data exchange with HMIs, SCADA systems, drives, and other controllers over standard Ethernet networks.
It features a 10/100 Mbps Ethernet port with auto-negotiation, using standard CAT5/CAT6 cables. The COMMUNICATIONS ADAPTER ALLEN BRADLEY 1768-ENBT supports both commercial and industrial network switches, and can communicate with a wide range of Allen-Bradley devices and third-party equipment.
Supporting up to 64 CIP connections and 32 TCP/IP sessions, this ROCKWELL 1768-ENBT Ethernet Communication Module allows flexible network integration. Up to two modules can be used with a 1768-L43 controller, and up to four with a 1768-L45.
The module provides visual status indicators for network activity and module health. Proper ESD precautions should be followed during installation of the 1768-ENBT AB CompactLogix Ethernet/IP 10/100 MB Bridge Module to prevent damage to sensitive electronic components.
If you have other request contact our team to get customized service
Allen Bradley |
1606-XLE240E |
Allen Bradley |
20-750-S |
Allen Bradley |
1790D-TN4V0 |
Allen Bradley |
1734 -IB8S |
Allen Bradley |
1797-IE8NF |
Allen Bradley |
1788HP-EN2PA |
Allen Bradley |
1734-AENTR |
Allen Bradley |
1794-VHSC |
Allen Bradley |
1788-EN2DN |
Allen Bradley |
1734-EP24DC |
Allen Bradley |
1794-TB3S |
Allen Bradley |
1788-CNC |
Allen Bradley |
1746-BTM |
Allen Bradley |
1794-IM8 |
Allen Bradley |
1786-RPFRL |
Allen Bradley |
1746-IO12DC |
Allen Bradley |
1794-IE4XOE2 |
Allen Bradley |
1785-PFB |
Allen Bradley |
1746-ITB16 |
Allen Bradley |
1794-IE4X0E2 |
Allen Bradley |
1785-L60B/C |
Allen Bradley |
1746-NIO4V |
Allen Bradley |
1794-AENTR |
Allen Bradley |
1785-BCM/C |
Allen Bradley |
1746-OG16 |
Allen Bradley |
1793-OB16P |
Allen Bradley |
1784-PKTS |
Allen Bradley |
1746SC-IN04VI |
Allen Bradley |
1791-OB16 |
Allen Bradley |
1784-KTCX15 |
CompactLogix Ethernet/IP 10/100 MB Bridge Module
The Allen-Bradley CompactLogix Ethernet/IP 10/100 MB Bridge Module is a communication interface designed to seamlessly integrate CompactLogix controllers into industrial Ethernet networks. This module provides high-speed, 10/100 Mbps switched Ethernet connectivity using the EtherNet/IP protocol, enabling real-time data exchange and control across automation systems. It allows for efficient communication with various devices such as HMIs, drives, sensors, and other controllers, supporting both implicit and explicit messaging. Ruggedly built for industrial environments, the module ensures reliable performance in demanding applications. Its compact form factor makes it ideal for space-conscious installations while maintaining full compatibility with the Rockwell Automation Integrated Architecture system. This module simplifies network architecture and enhances system diagnostics, providing a robust foundation for distributed control and information applications.
