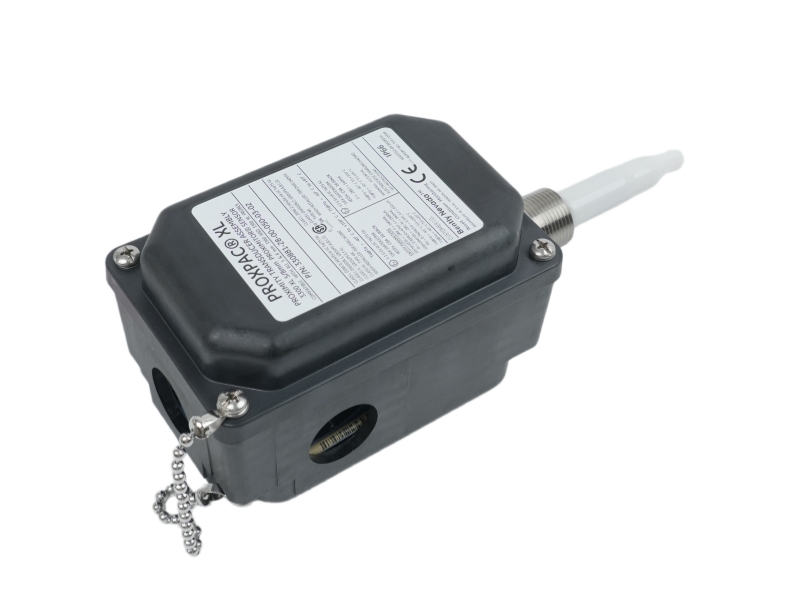

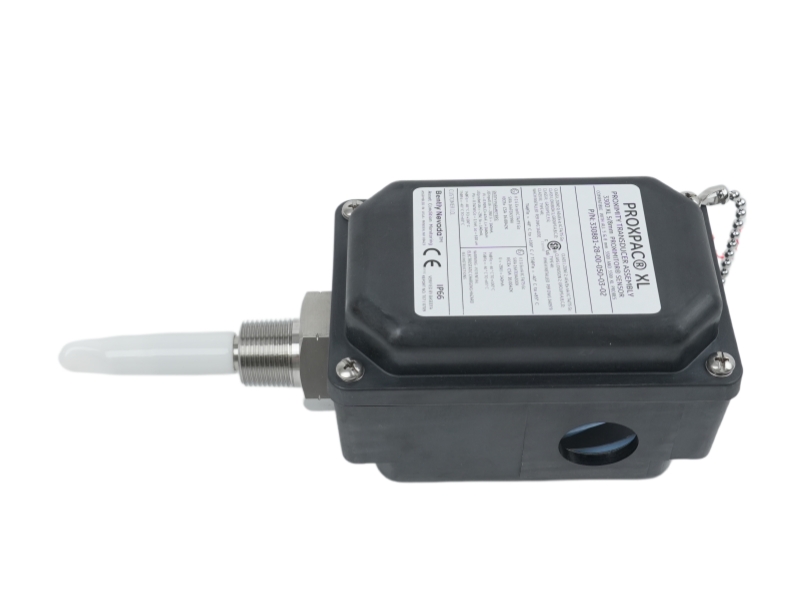

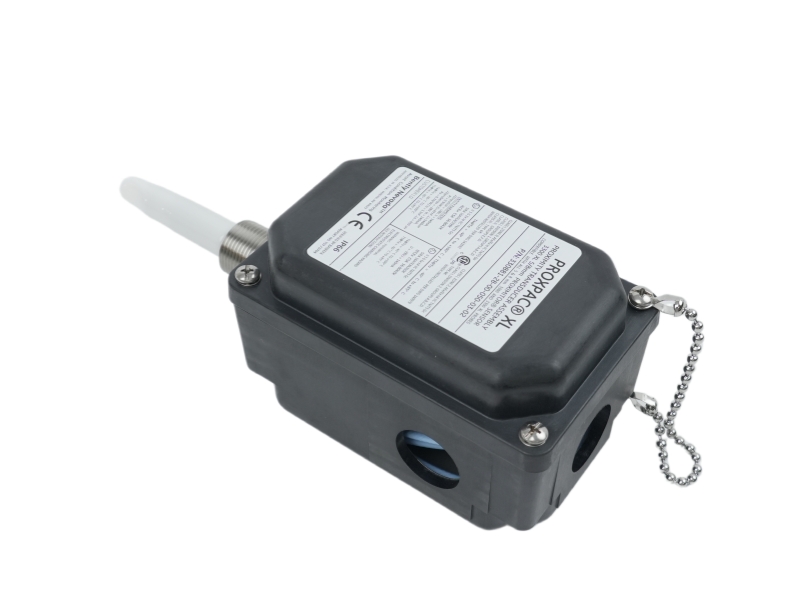

A self-contained PROXPAC XL proximity transducer assembly that combines a 3300 XL 8 mm probe and Proximitor Sensor in an IP66 enclosure. This exact metric configuration specifies a 214 mm probe penetration, no standoff adapter, no fittings, and a 3/4-14 NPT mounting thread.
| Ordering field | Confirmed configuration |
|---|---|
| Manufacturer | Bently Nevada |
| Complete part number | 330881-28-00-214-00-02 |
| Product type | Metric PROXPAC XL proximity transducer assembly |
| Probe option | 3300 XL 8 mm probe with Multiple Approvals |
| Probe penetration | 214 mm |
| Standoff adapter | None |
| Fittings | No fittings; two plugs and two washers |
| Mounting thread | 3/4-14 NPT |
| Enclosure protection | Type 4X / IP66 |
| Power requirement | -17.5 to -26 Vdc |
| Condition | Contact us to confirm |
| Hardware revision | Contact us to confirm |
| Availability | Contact us to confirm |
| Warranty | 12 months under written quotation terms |
| Shipping | Worldwide shipping available; terms confirmed in quotation |
| Country of origin | Contact us to confirm |
| Compatibility | Confirm the exact suffix, mounting geometry and associated monitoring system |
The 330881-28-00-214-00-02 is intended for installations where the probe and signal-conditioning electronics benefit from a compact, field-mounted enclosure. Integrating the probe and Proximitor Sensor removes the separate extension cable normally used between those components. The 214 mm penetration and 3/4-14 NPT mounting thread are ordering-code characteristics of this exact assembly. Procurement and maintenance teams should compare the full suffix, penetration, conduit arrangement, hazardous-area requirements and available mounting space with the installed unit before ordering.
The enclosure houses the Proximitor Sensor and accepts the installed 1 m probe cable, reducing the external probe-to-sensor connection path.
The PPS housing is rated Type 4X / IP66. Protect all connectors and follow the applicable sealing and conduit practices.
Probe penetration is 214 mm. Verify the machine measurement location, target clearance and mounting-thread engagement before installation.
The probe can operate from -52 to +177 C, while the housing and Proximitor Sensor operate from -52 to +100 C. Storage range is -52 to +105 C. The assembly tolerates 100% condensing humidity when installed as specified, but it is not intended for submersion. Route wiring away from interference sources, protect the enclosure openings, and confirm the supply polarity before energizing.
Match the complete 330881-28-00-214-00-02 suffix. Confirm penetration, mounting thread, available conduit entries, monitoring-system input, approval requirement and revision. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Supply condition is confirmed in the written quotation. Before dispatch, the team can review the full part number and label, record the serial number, inspect the enclosure, probe, threads and connectors, and perform an applicable functional check. Customer-provided photos of the installed label and mounting position help reduce ordering risk.
Worldwide shipping can be arranged. Method, cost and trade terms depend on destination, package size and weight. Warranty is 12 months under the written quotation terms. A mismatch in suffix, mounting geometry or system compatibility is not automatically a product-quality defect.
Availability changes. Send the exact part number and required quantity for a current check.
It specifies the multiple-approval 8 mm probe, 214 mm penetration, no standoff, no fittings and a 3/4-14 NPT mounting thread.
The PROXPAC XL design integrates the probe and Proximitor Sensor, so a separate extension cable is not used between them.
Provide the existing label, mounting-thread details, penetration requirement, supply information and monitoring-system reference.
Yes. Request available product and label photos in the quotation process.
