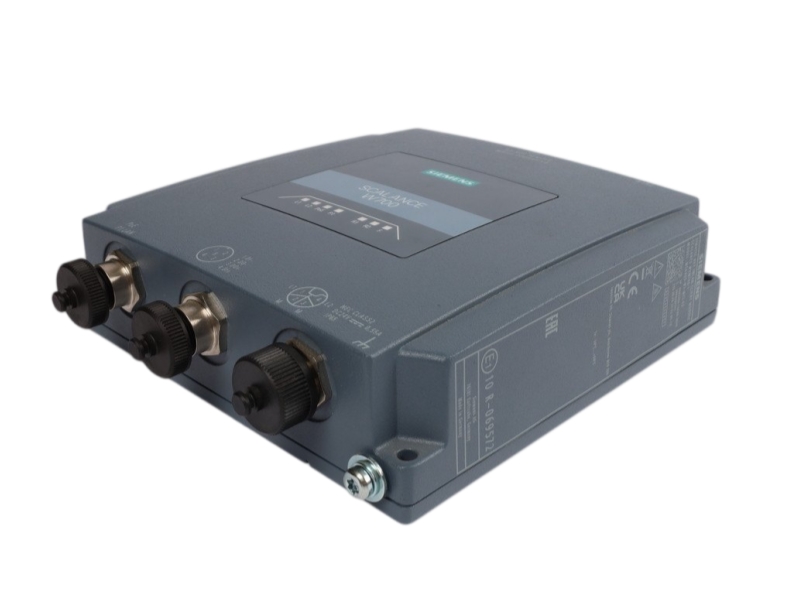

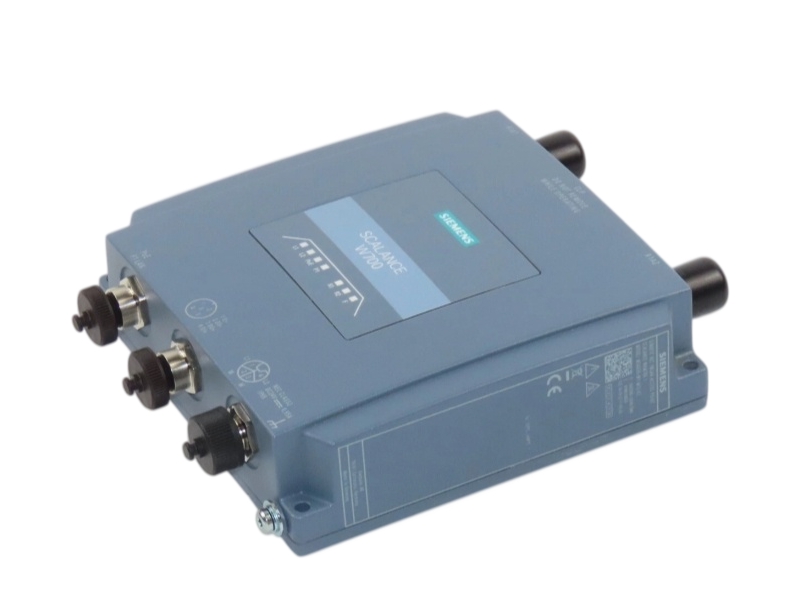

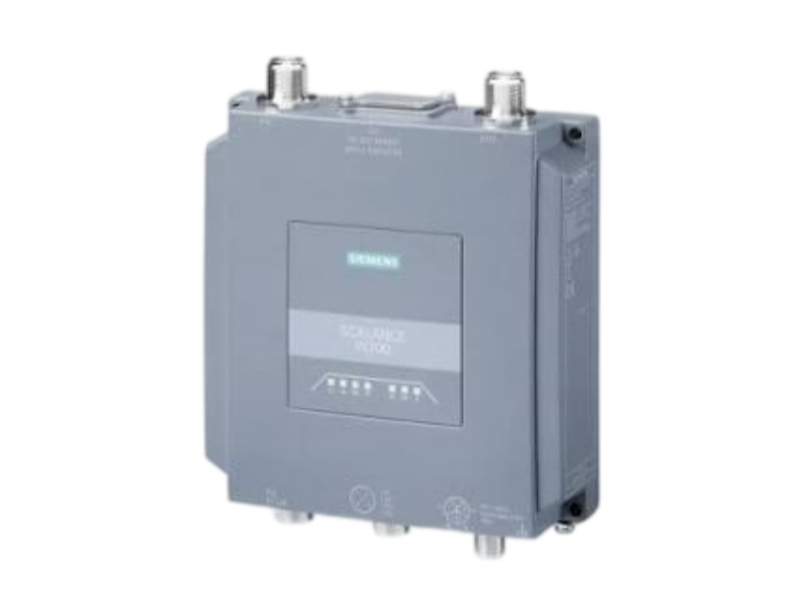

SCALANCE WAM766-1 industrial Wi-Fi 6 access point
Siemens 6GK5766-1GE00-7DA0 is a SCALANCE WAM766-1 industrial wireless LAN access point with one IEEE 802.11ax radio for 2.4 and 5 GHz operation. The official configuration includes two N-Connect antenna connections, one Gigabit M12 X-coded Ethernet interface with PoE, redundant 24 V DC through an M12 L-coded connection, IP65 protection, CLP support and digital I/O. It is designed for industrial wireless coverage in demanding environments. Procurement should verify national radio approvals, antenna selection, power method, connector coding, operating temperature, iFeatures licensing and the exact complete order number before installation.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5766-1GE00-7DA0 |
| Product Type | SCALANCE WAM766-1 IWLAN access point |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radio Configuration | One radio; 2.4 GHz and 5 GHz |
| Gross Data Rate | Up to 1201 Mbps per radio |
| Antenna Connections | 2 × N-Connect |
| Ethernet Interface | 1 × 10/100/1000 Mbps M12 X-coded socket with PoE |
| Power Connection | Redundant 24 V DC via M12 L-coded socket |
| Protection Rating | IP65 |
| Operating Temperature | -30 to +60 °C |
| Additional Interfaces | CLP slot and DI/DQ on A-coded connection |
| Certification IDs | MSAX65-W1-M12-E2; FCC ID LYHMSAX65V1 |
| Catalog Packaging Dimensions | 127 × 26 × 156 mm |
| Catalog Net Weight | 0.5 kg |
| Country of Origin | Germany |
| System Fit | Industrial WLAN installations requiring a rugged Wi-Fi 6 access point. |
|---|---|
| Typical Functions | Wireless plant coverage, mobile-equipment connectivity and industrial Ethernet access. |
| Maintenance Use | Expansion or replacement evaluation using the identical complete order number and national approval. |
| Engineering Focus | Radio approval, antenna system, PoE or 24 V DC power, M12 coding and iFeatures. |
The manufacturer lifecycle wording for 6GK5766-1GE00-7DA0 is Active Product. This wording is retained exactly and should be reviewed together with the complete suffix during procurement.
It is a SCALANCE WAM766-1 industrial Wi-Fi 6 access point.
Siemens specifies one IEEE 802.11ax radio for 2.4 GHz and 5 GHz operation.
The official configuration supports PoE and redundant 24 V DC through the specified M12 connections.
No. Siemens lists the complete order number as “Active Product.”
Verify national approval, antennas, connector coding, power method, environmental limits, CLP and iFeatures.
Yes. Device, label, antenna-port and packaging photographs can be reviewed during the Stockoems inquiry process.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Procurement, inspection and logistics support for 6GK5766-1GE00-7DA0
| 1. Identity Gate | Model and suffix verification; Product and label photo confirmation |
|---|---|
| 2. Commercial Gate | Condition confirmation; Written warranty terms |
| 3. Engineering Gate | Technical compatibility review for planned industrial WLAN, antenna and power configuration |
| 4. Protection Gate | Protective packaging and handling review |
| 5. Logistics Gate | Worldwide shipping; Shipment tracking; Customs documentation |
| 6. After-Sales Gate | Return authorization process; After-sales response |
Our workflow checks the complete order code, suffix, product label and available condition evidence before shipment arrangements are finalized.
Protective packing is selected for industrial electronics, while the team coordinates worldwide transport, tracking and customs-document preparation.
Written warranty terms, a defined return-authorization process and responsive after-sales communication support the purchasing team.
Check whether the source verifies the exact suffix, supplies readable label photos, explains condition clearly and provides written commercial terms.
Request product and packaging photos, the complete order code, condition details, warranty terms, shipping scope and the return-authorization process.
Engineers should compare hardware revision, interfaces, connectors, power, configuration, software requirements and installation position against the project.
Risk signals include unclear suffixes, unreadable labels, generic photos, unsupported compatibility claims, missing written terms and promises of unverified delivery dates.
