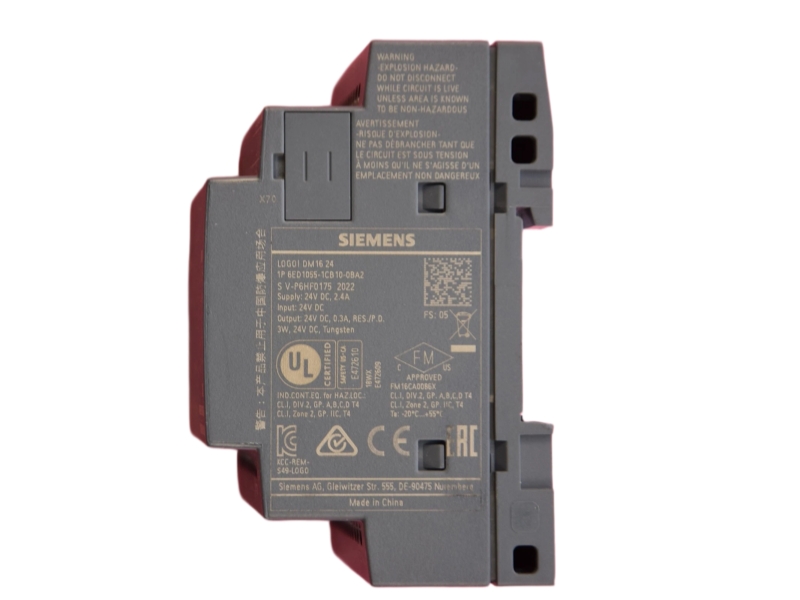

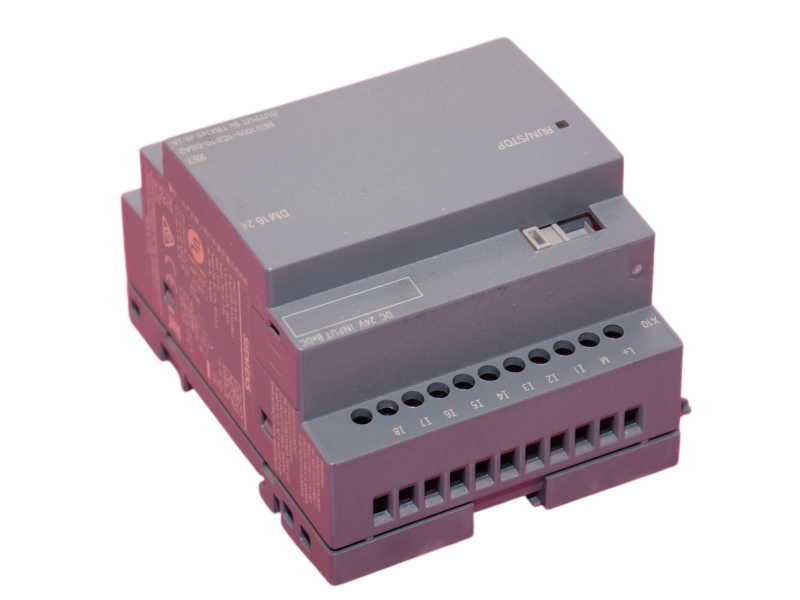

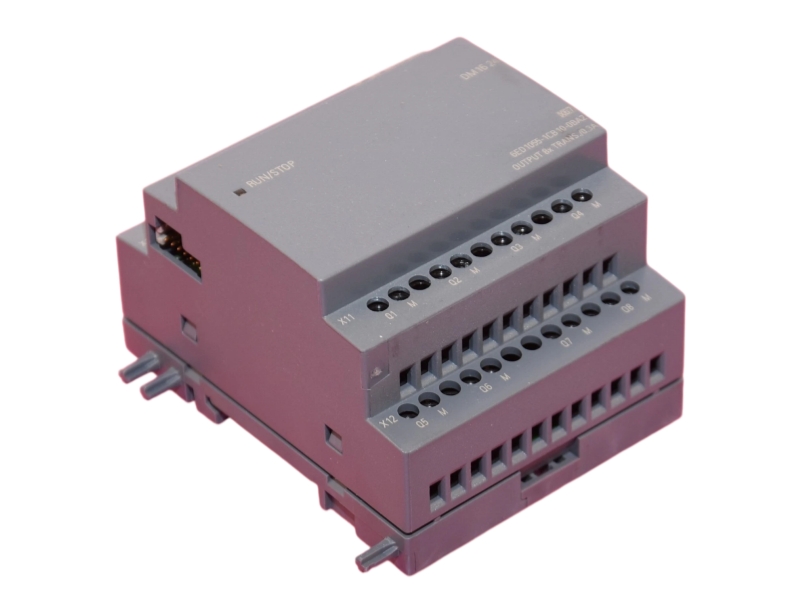

LOGO! DM16 24 transistor expansion module
The Siemens 6ED1055-1CB10-0BA2 is a LOGO! DM16 24 expansion module with eight 24 V DC digital inputs and eight transistor outputs for LOGO! 8 systems. It operates from 20.4 to 28.8 V DC, mounts on a 35 mm DIN rail and occupies four spacing units. The transistor outputs are short-circuit protected and rated at 0.3 A for signal state 1, supporting compact high-density switching tasks. This model suits new panels, I/O extensions and carefully matched replacement work. Confirm the complete suffix, output load, switching frequency, wiring polarity and cabinet space before ordering.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ED1055-1CB10-0BA2 |
| Product Type | LOGO! DM16 24 transistor expansion module |
| Series | LOGO! 8 expansion modules |
| Product Condition | NEW |
| Supply Range | 20.4 to 28.8 V DC |
| Digital Inputs | 8 |
| Digital Outputs | 8 transistor outputs |
| Input Signal 0 | Below 5 V DC |
| Input Signal 1 | Above 12 V DC |
| Typical Input Current | 2 mA at signal 1 |
| Maximum Standard Input Delay | 1.5 ms in each direction |
| Short-Circuit Protection | Yes |
| Rated Output Current | 0.3 A at signal 1 |
| Maximum Resistive Switching Frequency | 10 Hz |
| Mounting | 35 mm DIN rail; four spacing units wide |
| Net Weight | 0.227 kg |
| Packaging Dimensions | 9.30 x 10.80 x 7.50 cm |
| Country of Origin | GERMANY |
| Warranty | With 1 year warranty |
| Shipping | Shipping method and documents are confirmed in the written quotation. |
Collect 24 V DC discrete signals from compatible field devices.
Execute sequence, interlock and timing logic in the LOGO! 8 controller.
Switch compatible DC loads through short-circuit-protected transistor outputs.
It provides eight 24 V DC digital inputs and eight transistor outputs.
No. This exact model uses transistor outputs, so load type and polarity must be checked.
The official Siemens data lists 20.4 to 28.8 V DC.
Yes. Siemens lists short-circuit protection for the outputs.
Compare the full suffix, transistor load, wiring polarity, switching frequency and DIN-rail space.
