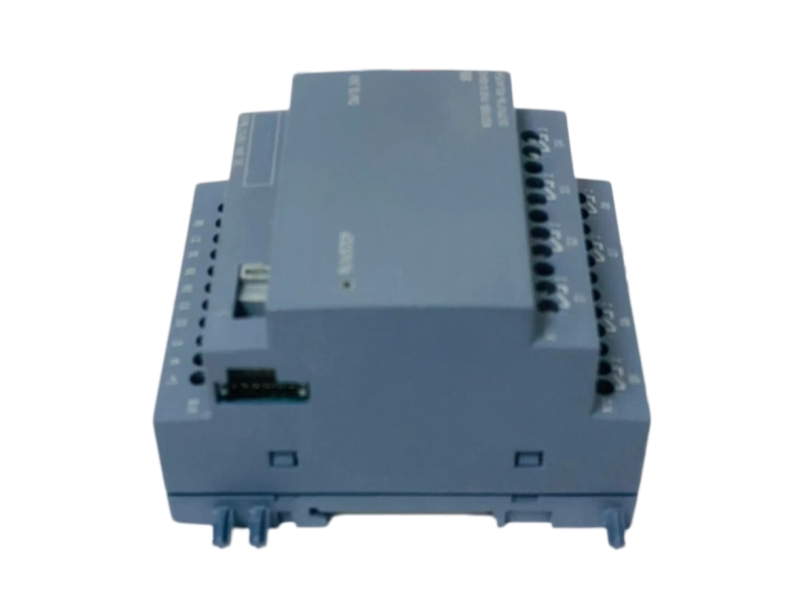

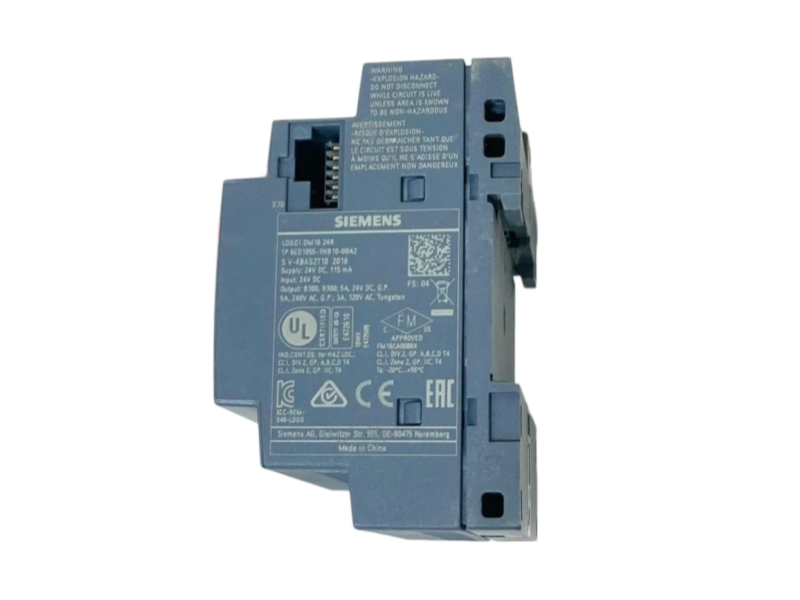

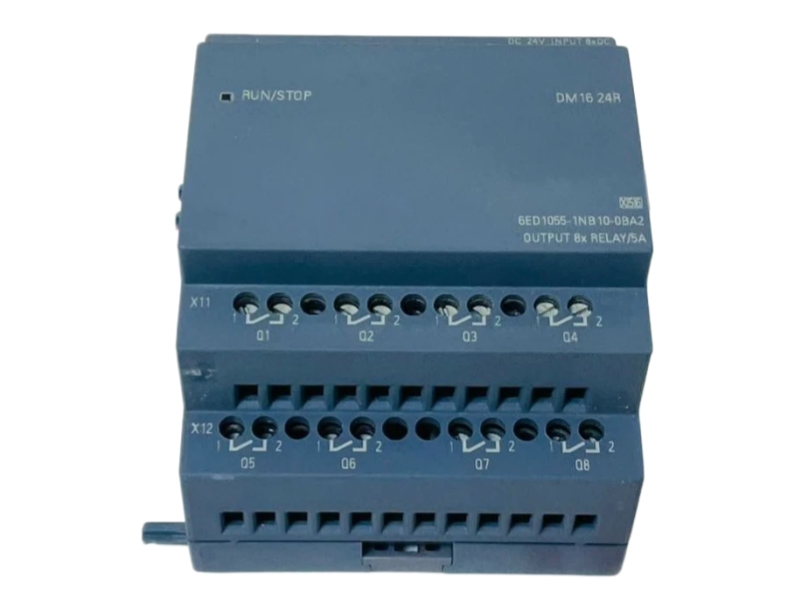

LOGO! DM16 24R relay expansion module
The Siemens 6ED1055-1NB10-0BA2 is a LOGO! DM16 24R expansion module that adds eight 24 V DC digital inputs and eight relay outputs to a LOGO! 8 control system. It mounts on a 35 mm DIN rail and occupies four spacing units, making it suitable for compact machines that need a larger discrete I/O count. The 24 V DC supply operates across the official 20.4 to 28.8 V range, while each relay output is rated at 5 A for signal state 1. Before ordering, verify the complete suffix, relay load, field wiring, power supply and available panel width.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ED1055-1NB10-0BA2 |
| Product Type | LOGO! DM16 24R relay expansion module |
| Series | LOGO! 8 expansion modules |
| Product Condition | NEW |
| Supply Range | 20.4 to 28.8 V DC |
| Digital Inputs | 8 |
| Digital Outputs | 8 relay outputs |
| Input Signal 0 | Below 5 V DC |
| Input Signal 1 | Above 12 V DC |
| Typical Input Current | 2 mA at signal 1 |
| Maximum Standard Input Delay | 1.5 ms in each direction |
| Rated Output Current | 5 A at signal 1 |
| Mounting | 35 mm DIN rail; four spacing units wide |
| Net Weight | 0.290 kg |
| Packaging Dimensions | 9.40 x 10.60 x 7.50 cm |
| Country of Origin | GERMANY |
| Warranty | With 1 year warranty |
| Shipping | Shipping method and documents are confirmed in the written quotation. |
Collect discrete 24 V DC status signals from sensors and switches.
Evaluate interlocks, sequences and operating conditions in the controller.
Operate field circuits through the module's relay output channels within rated conditions.
It provides eight 24 V DC digital inputs and eight relay outputs.
The official Siemens data lists a permissible range of 20.4 to 28.8 V DC.
It mounts on a 35 mm DIN rail and occupies four spacing units.
The rated current for signal state 1 is 5 A; the application load must still be reviewed.
Verify the full suffix, relay load, input voltage, wiring and available DIN-rail space.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
