IC200MDL940F Overview

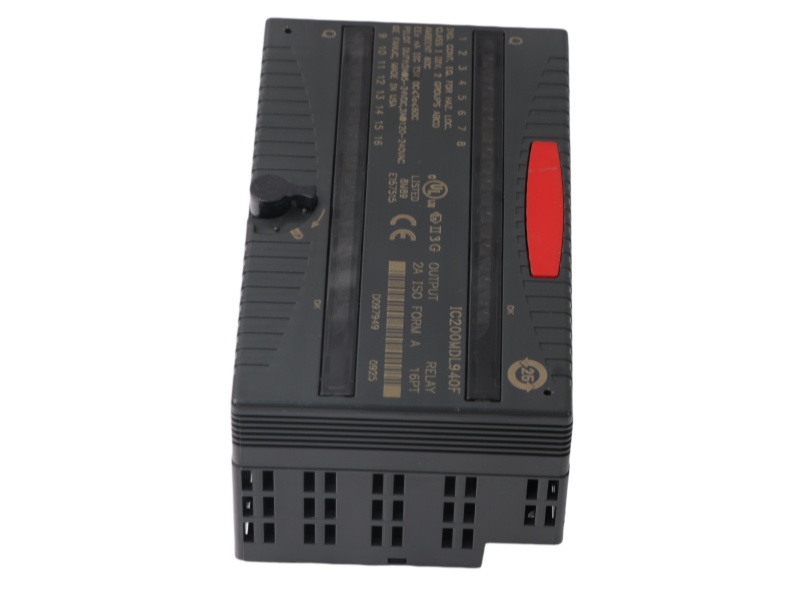

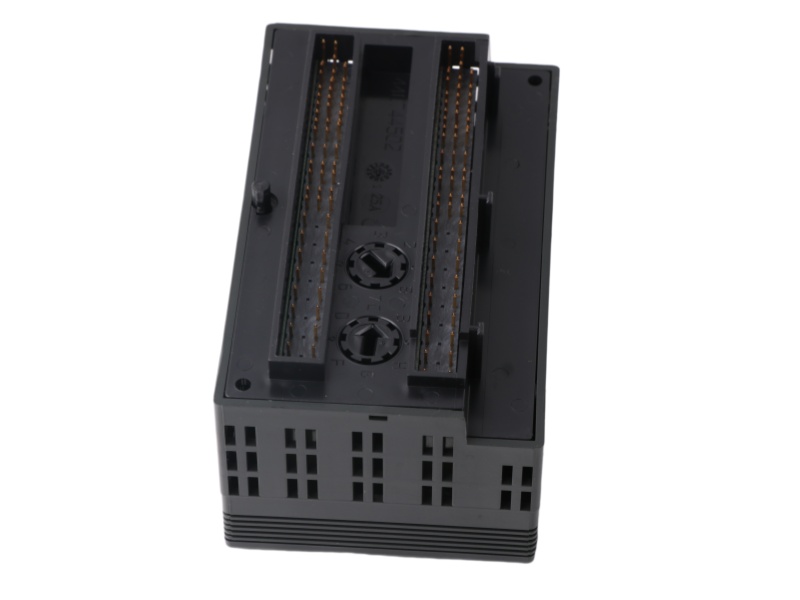

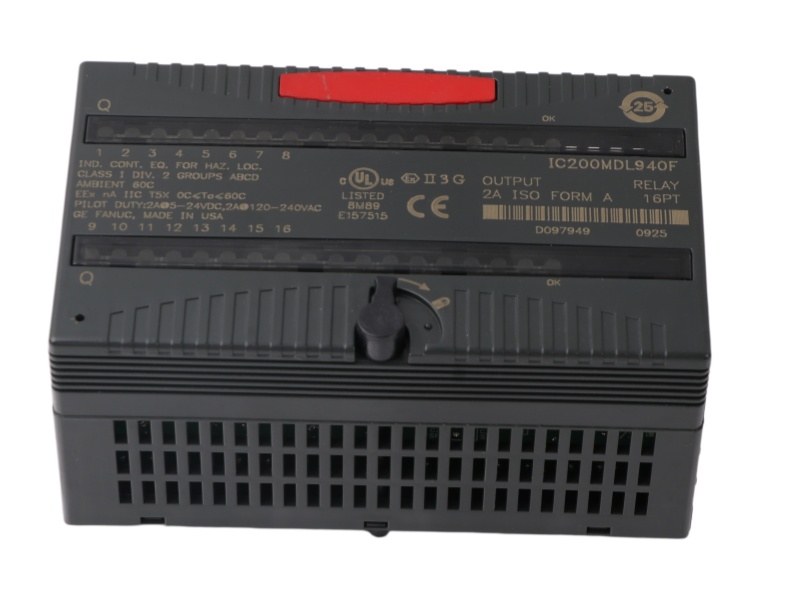

The General Electric Relay Output Modules IC200MDL940F is a VersaMax relay output module with 16 individually isolated Form A contacts. It features group-to-group isolation, LED indicators, and supports AC/DC loads up to 2A.

Features & Benefits

• 16 Individually Isolated Form A Outputs – Ensures reliable switching and prevents fault propagation.

• Wide Voltage Range (5–265V AC/DC) – Flexible for global applications with 2A AC/30VDC, 0.2A high DC.

• Per-Point LED Indicators – Simplifies diagnostics with logic-driven on/off status.

• Group-to-Group & Channel Isolation – Enhances safety in complex or hazardous environments.

• Class I Div. 2 Hazardous Location Certified – Suitable for explosive atmospheres with proper precautions.

• No Derating & Fast 10ms Response – Maintains performance across full temperature range.

FAQ

Q1. What is the output rating of the IC200MDL940F?

A1. It supports 0–265VAC (47–63Hz) and 0–125VDC, with 2.0A for AC/30VDC and 0.2A for 31–125VDC.

Q2. Does the module provide point‑to‑point isolation?

A2. Yes, it features 16 individually isolated Form A relay outputs with 250VAC continuous isolation.

Q3. Can this module be used in hazardous locations?

A3. Yes, it is certified for Class I, Division 2, Groups A, B, C, D hazardous locations.

Q4. How are output statuses indicated?

A4. Each point has a green logic‑side LED showing on/off status, independent of load conditions.

Q5. What is the response time of the relay outputs?

A5. Both on and off response times are 10ms maximum.
