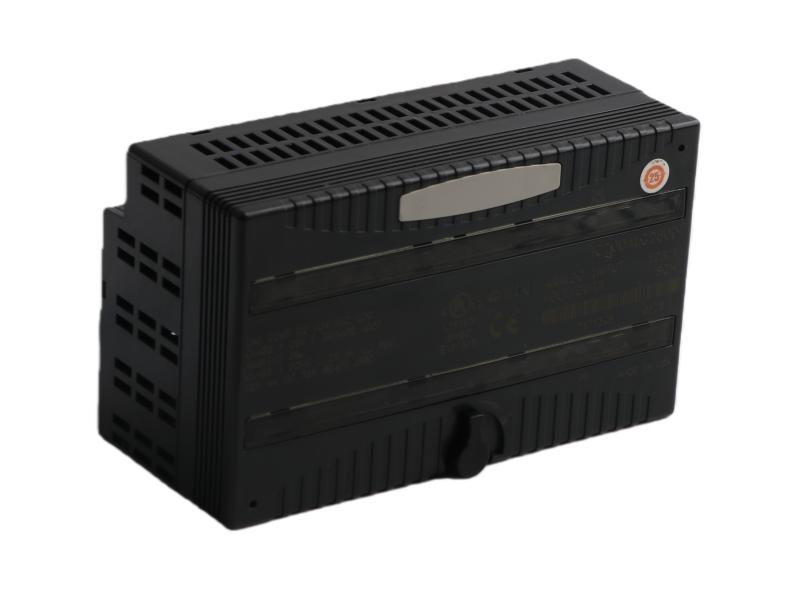

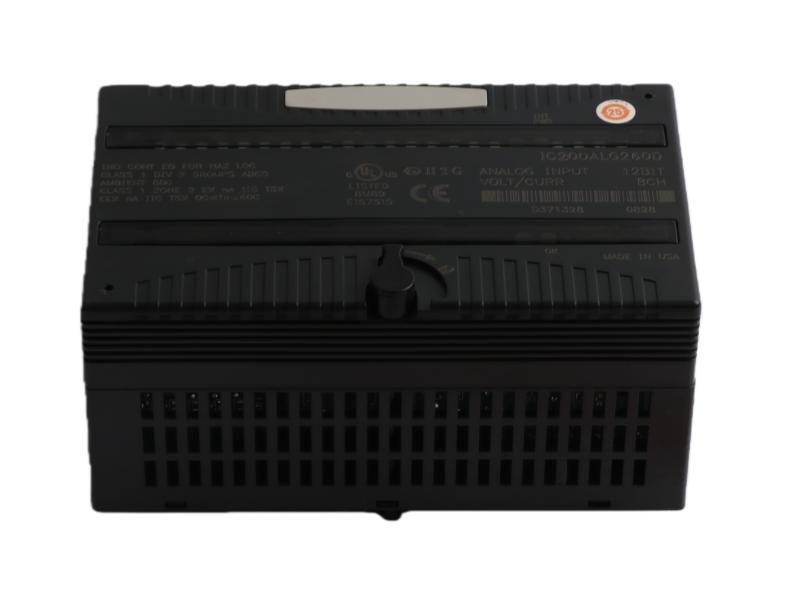

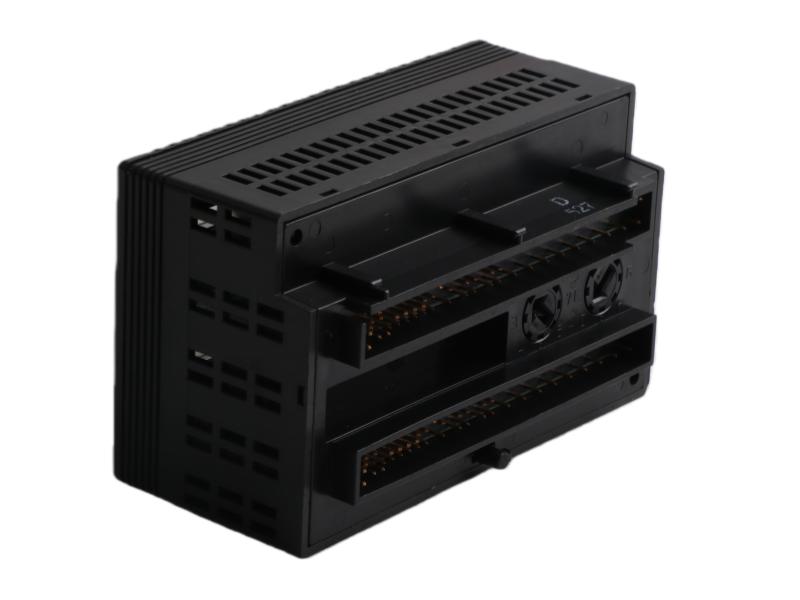

IC200ALG260 Overview

The General Electric VersaMax Analog Input module IC200ALG260 is an 8-channel VersaMax analog input module. It supports configurable voltage (±10VDC) or current (4-20mA) signals with 12-bit resolution for precise measurement.

Enviromental Strength

• Operating Range: Designed to function reliably within a temperature range of 0 to 60°C.

• Signal Integrity: Features optical isolation rated for continuous 250VAC, ensuring protection against electrical noise.

• Stability: Maintains operational accuracy with channel-to-channel crosstalk rejection of at least 30 dB.

• Resilience: While effective against standard interference, appropriate external noise cancellation is recommended for optimal performance in high-EMI environments.

FAQ

Q1: What types of signals can the IC200ALG260 module handle?

A1: It accepts both voltage (±10VDC or 0-10VDC) and current (4-20mA) analog signals.

Q2: How many input channels does it have, and what is their configuration?

A2: It has 8 single-ended input channels, all arranged in one common group.

Q3: What is the module's resolution and typical accuracy?

A3: It provides 12-bit resolution, with a typical accuracy of ±0.3% of full scale.

Q4: Does the module require an external power supply?

A4: No, it is powered directly from the backplane and does not need an external supply.

Q5: What are the main status indicators on the module?

A5: It features two LEDs: an INT PWR (Internal Power) LED and an OK LED for backplane power status.
