Select the Right ABB AC 800M Spare Part

This practical guide explains how to identify compatible PM8xx processors, CI8xx communication interfaces, S800 I/O modules, power components and essential accessories. Always check the complete product number, hardware revision, software version and system configuration before ordering.

Understanding the AC 800M Platform

ABB AC 800M is a modular controller platform used in power generation, oil and gas, chemical processing, mining, marine systems, and manufacturing. A typical system may include a PM8xx processor, communication interfaces, power supplies, redundancy hardware, S800 I/O modules, termination units, batteries, and accessories. Since these components operate as one control system, choosing a spare part requires more than matching its appearance.

Why Correct Selection Matters

An incompatible replacement can extend a production shutdown instead of resolving it. A module may fit the existing base mechanically but fail because of its firmware, hardware revision, communication protocol, or controller configuration. Correct identification reduces purchasing mistakes, unnecessary returns, and commissioning delays while helping maintenance teams restore the system safely.

Check the Complete Part Number

Begin with the identification label on the original component. Record the model, complete product number, hardware revision, and any additional codes. Describing a unit only as an “AC 800M controller” is insufficient because the family contains several processors and kit versions with different memory, performance, and redundancy capabilities. Photograph the front and side labels before removing the module, and compare them with cabinet drawings, maintenance records, and the stored controller configuration.

Selecting the Processor Unit

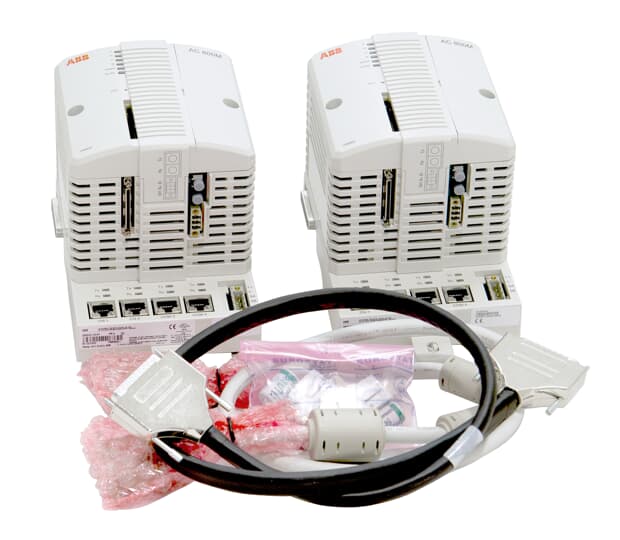

The processor is the core of the AC 800M controller. Common families include PM851, PM856, PM858, PM860, PM862, PM866, PM867, and PM891, but they should not be treated as interchangeable. The correct choice depends on processing performance, memory, controller software, application size, and redundancy requirements. Before ordering, determine whether maintenance needs one processor, a complete processor kit, or components for a matched redundant arrangement.

Choosing Communication Interfaces

AC 800M communication modules connect controllers to field devices, remote I/O, drives, third-party systems, and industrial networks. Depending on the application, the system may use PROFIBUS, Modbus TCP, Modbus RTU, PROFINET, IEC 61850, EtherNet/IP, DeviceNet, DriveBus, or a legacy ABB network. Check the required master or slave function, redundancy, software support, connectors, cables, firmware, and configuration rather than selecting a module by protocol name alone.

Matching S800 I/O and Termination Units

S800 I/O modules handle digital, analog, temperature, pulse, and other process signals. Every module has defined channel counts, voltage ranges, signal types, isolation characteristics, and electrical limits. The Module Termination Unit must also match the selected I/O module and field wiring. Confirm the I/O model, MTU number, field voltage, signal standard, and wiring arrangement before replacing either component.

Power and Redundancy Components

A controller fault is not always caused by the processor. An unstable power supply, damaged redundancy unit, aging battery, loose connection, or cabinet temperature problem can produce intermittent failures. Critical plants should therefore consider power modules, communication interfaces, redundancy components, frequently used I/O modules, and essential accessories when building a spare-parts inventory.

Deciding When to Replace a Module

Before removing a suspected module, qualified maintenance personnel should check diagnostic LEDs, system alarms, power conditions, network status, wiring, and configuration records. Keeping an on-site spare is sensible when a module is essential to production, difficult to source, approaching obsolescence, or associated with a previous failure. Planned procurement leaves enough time to confirm compatibility before an emergency shutdown occurs.

Evaluating Part Condition

New parts are generally preferred for current systems requiring clear traceability. Surplus unused products may be suitable for legacy installations when the original model is difficult to obtain. Refurbished components can also support older equipment, but their value depends on the quality of inspection, repair, testing, storage, and documentation. Buyers should confirm the condition, hardware revision, packaging, warranty, inspection method, and return terms.

Preparing an Accurate Inquiry

An effective inquiry should contain the complete part number, required quantity, preferred condition, delivery destination, and expected schedule. Include clear label photographs and mention whether the controller is configured as a single or redundant system. To locate a suitable component, visit the ABB product category and provide the available identification details for confirmation before ordering.

Final Selection Advice

The correct ABB AC 800M spare is the part that matches the installed hardware, software, network, and operating requirements—not simply the closest-looking module. Careful identification and compatibility checks are the most effective ways to prevent purchasing mistakes and reduce downtime. If uncertainty remains, consult qualified automation personnel and the relevant ABB hardware documentation before making the final decision.

Recommended ABB AC 800M Spare Part Models

The following models are commonly considered when planning AC 800M maintenance inventory. Availability and compatibility should always be checked against the complete product number, hardware revision, controller software, and installed system configuration.
