ABB PM862K02 3BSE081636R1 AC 800M Controllers

Inquiry now

PM862K02 3BSE081636R1 Product datasheet

Model number:	PM862K02 3BSE081636R1	Module Type：	AC 800M Controllers
Manufacture:	ABB	Condition：	Brand New
Range of Product:	Advant-800xA	Lead time：	In Stock
Weight:	1.08 kg	HS CODE：	8537101190
Dimension:	18.5x8.5x30.5cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

PM862K02 3BSE081636R1 Functional Description

The 3BSE081636R1 PM862K02 DCS MODULE ABB is a high-performance AC 800M controller designed for reliable industrial automation and process control applications. It is ISA Secure certified, ensuring enhanced cybersecurity, and features built-in fault diagnosis procedures for simplified maintenance and operational reliability. The modular design allows step-by-step expansion to meet evolving system requirements, while its IP20 class protection eliminates the need for additional enclosures, making installation more straightforward.

The AC 800M Controllers PM862K02 3BSE081636R1 can be configured using the 800xA Control Builder, providing flexible and user-friendly programming capabilities. The ABB PM862K02 3BSE081636R1 In Stock includes full EMC certification, ensuring electromagnetic compatibility and stable performance in demanding industrial environments. Its hardware is based on widely accepted standards for optimum communication, supporting Ethernet, PROFIBUS DP, and other industrial networks, while built-in redundant Ethernet communication ports increase system availability.

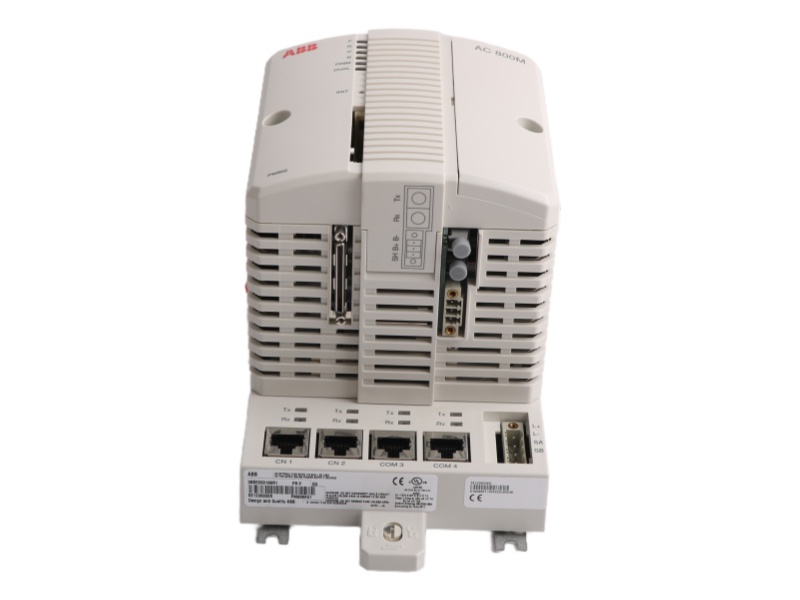

The CPU board of the Redundant Processor Unit 3BSE081636R1 contains a microprocessor, RAM memory, a real-time clock, LED indicators, an INIT push button, and a CompactFlash interface. The base plate includes two RJ45 Ethernet ports (CN1, CN2) for the Control Network and two RJ45 serial ports (COM3, COM4). COM3 provides RS-232C with modem control signals, and COM4 is isolated for connection to configuration tools. The controller supports CPU redundancy across CPU, CEX-Bus, communication interfaces, and S800 I/O for higher availability.

Installation is simplified with DIN rail attachment and detachment using a unique slide-and-lock mechanism. Each base plate is assigned a unique Ethernet address, providing every CPU with a distinct hardware identity, which can be verified via the label on the TP830 base plate. The PM862K02 3BSE081636R1 ABB AC 800M Controllers combines robust design, flexible connectivity, and redundancy to deliver high reliability and operational efficiency for complex automation systems.
