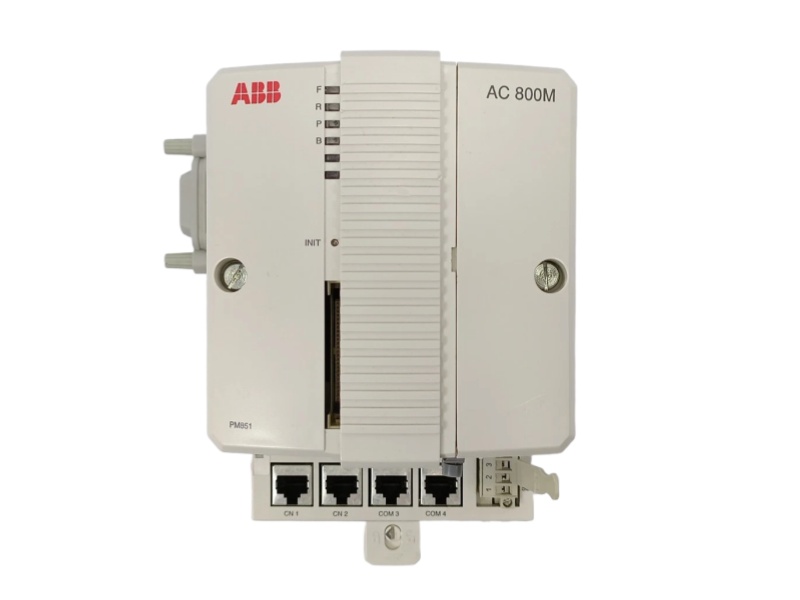

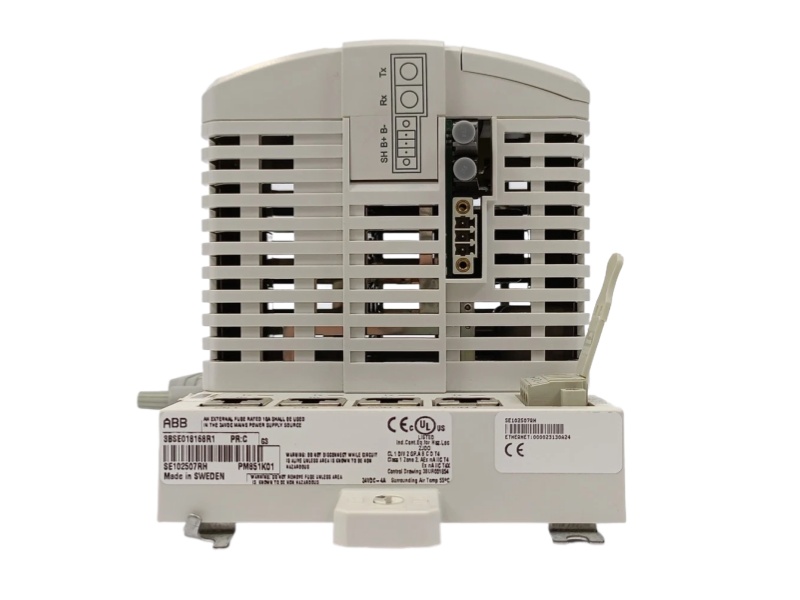

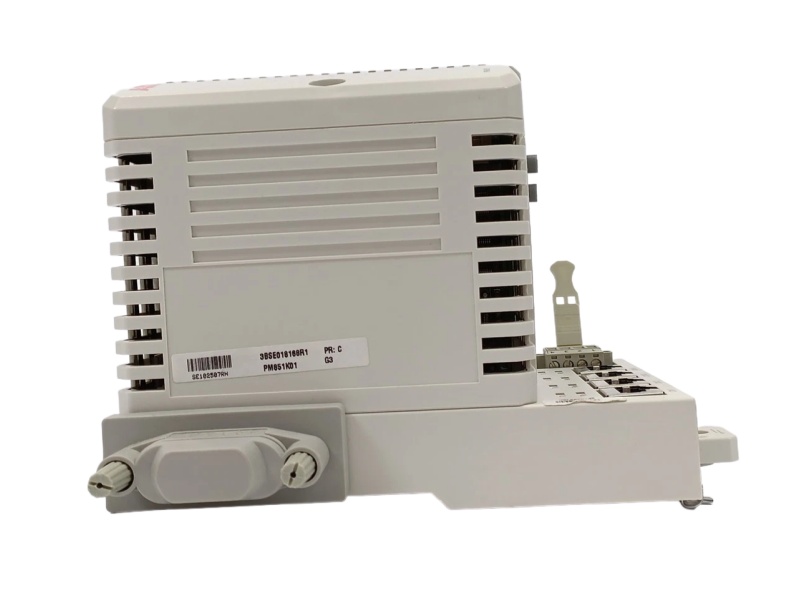

ABB PM857K02 3BSE088386R1 AC 800M Controllers

Inquiry now

PM857K02 3BSE088386R1 Product datasheet

Model number:	PM857K02 3BSE088386R1	Module Type：	AC 800M Controllers
Manufacture:	ABB	Condition：	Brand New
Range of Product:	Advant-800xA	Lead time：	In Stock
Weight:	1.08 kg	HS CODE：	8537101190
Dimension:	18.5x8.5x30.5cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

PM857K02 3BSE088386R1 Functional Description

The ABB AC 800M Controllers ABB PM857K02 3BSE088386R1 is a high-performance AC 800M controller designed for complex industrial automation applications, offering robust processing, reliable digital and analog I/O integration, and full EMC certification. It is TÜV-certified for SIL 2 and SIL 3 applications, providing high integrity control for safety-critical processes. This PM857K02 3BSE088386R1 ABB Controllers supports S800 I/O High Integrity systems, including PM857, PM863, PM865, PM866A, and PM891 modules, enabling flexible and scalable configurations for a wide range of industrial requirements.

Equipped with a microprocessor, RAM memory, real-time clock, LED indicators, an INIT push button, and a CompactFlash interface, the 3BSE088386R1 Ability™ System 800xA PM857K02 ensures precise and dependable operation. Its base plate includes two RJ45 Ethernet ports for Control Network connectivity and two RJ45 serial ports for configuration and communication purposes, supporting both RS-232C and isolated connections for configuration tools.

The PM857K02 System 800xA ABB offers built-in CPU redundancy, including redundant CEX-Bus and communication interfaces, to maximize system availability. High-integrity functionality is achieved by adding an SM812 module along with SIL-certified software, allowing non-critical control schemes to be upgraded to SIL-certified operations.

Certified for handling up to 128 I/O signals, the Redundant Processor Unit HI PM857K02 3BSE088386R1 ABB delivers a TÜV-certified control environment that combines safety and business-critical process management in a single controller. Configuration must follow the Safety Manual to ensure full compliance and optimal performance.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	3N2632	ABB	3HAC17484-8	ABB	3EHL409319R0001 URB512 D15
ABB	3HNP04014-1	ABB	3HAC17282-1	ABB	3EHL409300R0001 PPB626 B01
ABB	3HNP03386-1	ABB	3HAC16035-1	ABB	3EHL409055R0001 PPB622 B01
ABB	3HNP01759-1	ABB	3HAC14551-2	ABB	3EHL409054R0001 KUB921 A01
ABB	3HNM09846-1	ABB	3HAC14549-3	ABB	3EHE300694R0001 PPA425 B01
ABB	3HNM03189-1	ABB	3HAC063061-001	ABB	3EHE300692R0001 LAA424 C01
ABB	3HNM00148-01	ABB	3HAC039728-001	ABB	3BSE050201R1 PM866-2
ABB	3HNA015717-001	ABB	3HAC031683-004	ABB	3BDH000311R0101 PL810
ABB	3HEA800906-001	ABB	3HAC024322-001	ABB	3AXD50000032633 E152A03EIOA
ABB	3HNA007719-001 3HNA006145-001	ABB	3HAC044168-001 RMU102	ABB	1SBP260102R1001 XC08L1

CPU Board

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM857 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. This enables non-critical control schemes to be upgraded to SIL-certified schemes by the addition of a plug-in SM81x module, plus a selection of the appropriate software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity.
