Diagnostics-capable 24 V DC output control for redundant and distributed automation architectures.
This SM 322 digital output module provides sixteen 24 V DC channels rated at 0.5 A per channel for switching industrial actuator circuits. Siemens documentation identifies galvanic isolation in groups of four, wire-break monitoring at signal states 0 and 1, and support for redundant operation. The 40-pole front-connector format and documented IM 153-X HF interface requirement make exact hardware and project checks important during replacement planning. It is suited to S7-300, PCS 7 and ET 200M-related installed-base maintenance where diagnostic behavior, channel grouping and redundancy settings must match the approved engineering configuration.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM400 — Announcement of product phase-out; effective 2023-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7322-8BH10-0AB0 |

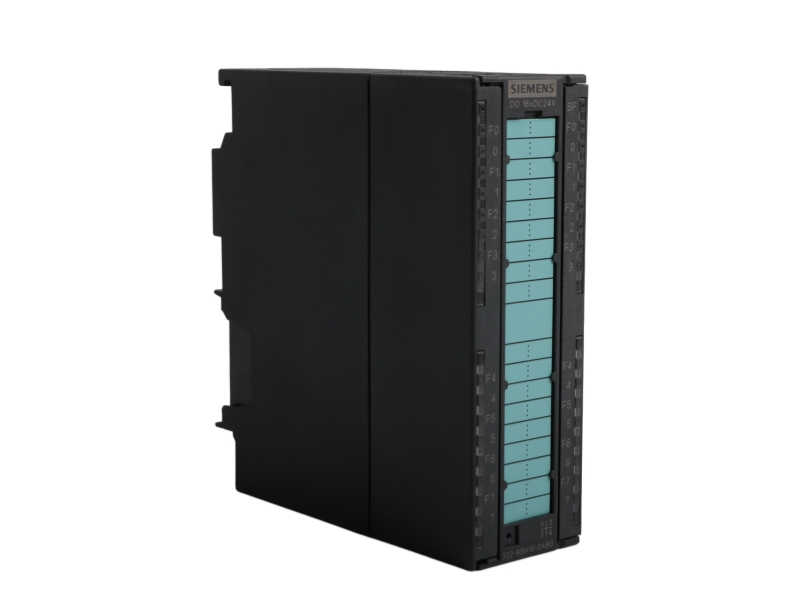

| Product Type | SIMATIC S7/PCS 7 SM 322 digital output module |
| Digital Outputs | 16 |
| Rated Load Voltage | 24 V DC |
| Output Current | 0.5 A per channel |
| Galvanic Isolation | Channels arranged in groups of four |
| Diagnostics | Wire-break monitoring at signal states 0 and 1 |
| Front Connector | 1 × 40-pole |
| Documented Interface | IM 153-X HF |
| Redundant Operation | Supported |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Net Weight | 0.336 kg |
| Country of Origin | GERMANY |
| Use Case | Why It Matters |
|---|---|
| Redundant ET 200M stations | Supports diagnostic output control where the approved architecture uses the documented high-feature interface. |
| PCS 7 process cabinets | Switches 24 V DC field actuators while retaining wire-break monitoring in the engineered configuration. |
| S7-300 installed-base maintenance | Supports exact-order-code replacement review for existing SM 322 output positions. |
| Diagnostic actuator circuits | Helps maintenance teams investigate open-circuit conditions when project settings and field wiring are matched. |
PM400 means Announcement of product phase-out. It is not presented here as a statement that the module is discontinued or that every installation is drop-in compatible.
It identifies the Siemens diagnostics-capable SM 322 configuration covered by the technical data on this page. The suffix should be matched exactly.
Siemens lists PM400, Announcement of product phase-out, effective 2023-10-01. That wording is retained and is not changed to Discontinued.
Verify 24 V DC load voltage, 0.5 A channel rating, channel grouping, field wiring and the 40-pole connector.
Check interface hardware, rack architecture, project parameterization and the installed module identification before replacement.

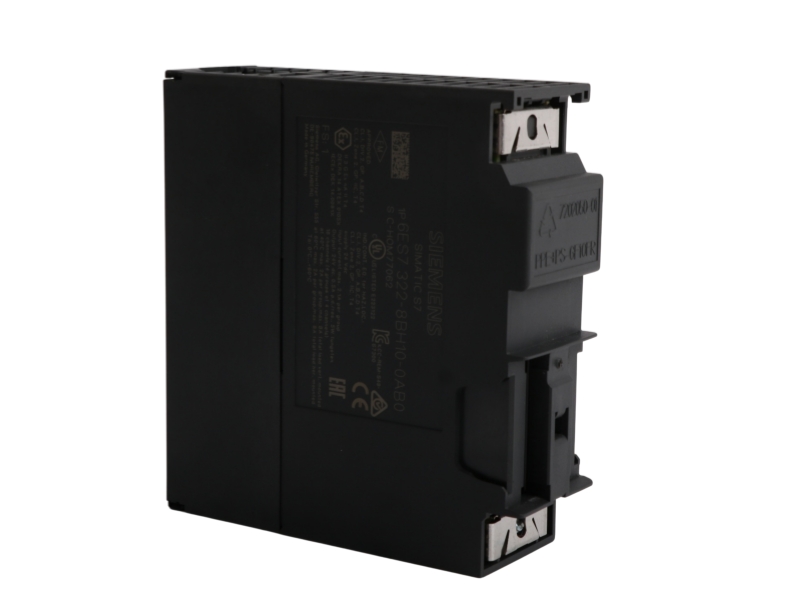

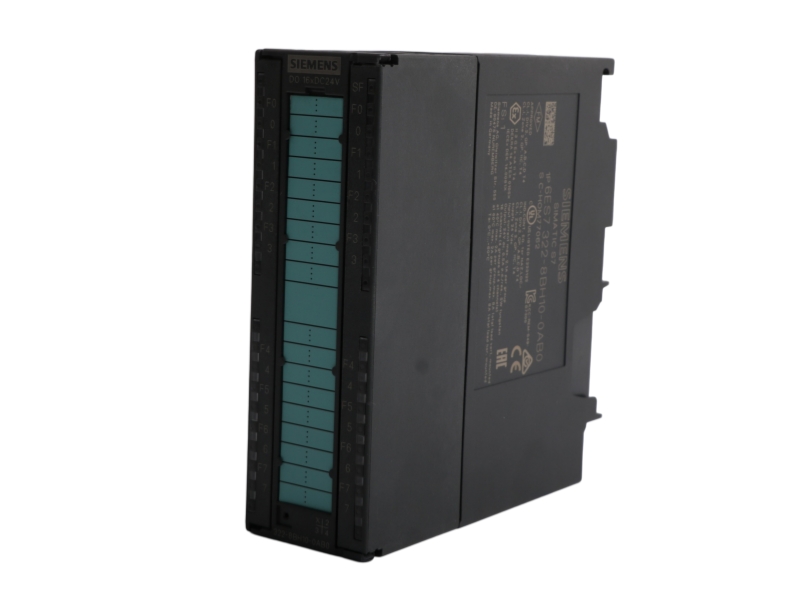

Product, nameplate and packaging views can be reviewed as part of the quotation and pre-shipment confirmation process.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
