ABB · AC500-eCo V3
Compact 24 V DC PLC processing with onboard digital I/O, relay switching and Ethernet communication.

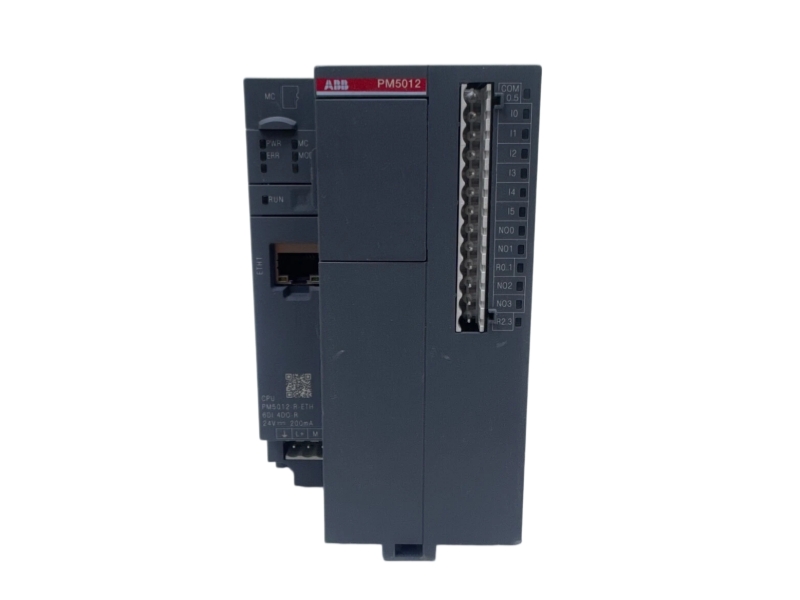

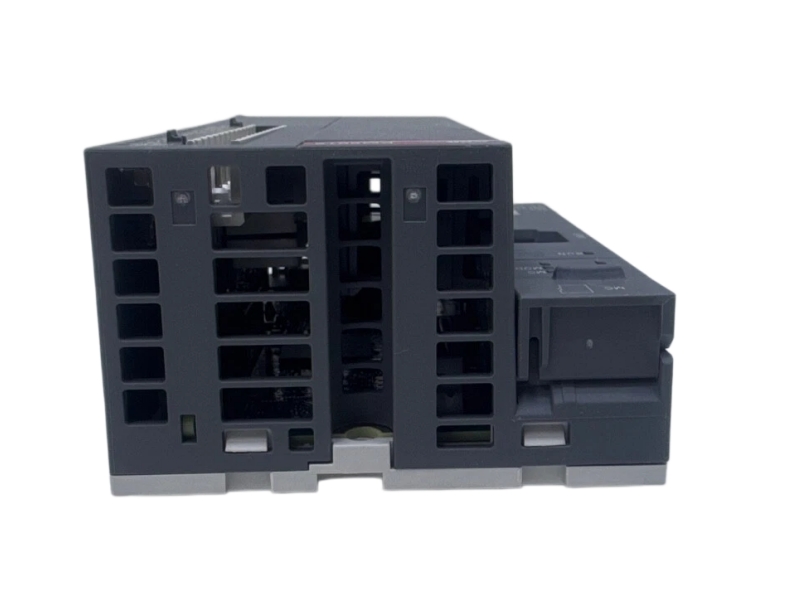

ABB PM5012-R-ETH is a Basic CPU in the AC500-eCo V3 programmable logic controller family. It combines six onboard 24 V DC digital inputs, four normally-open relay outputs, an Ethernet interface and one option-board slot. ABB documents a maximum downloadable application size of 1 MB, with 256 kB dynamically allocated for user program code and data. The module supports compact control applications that do not require a local I/O bus. For maintenance or replacement projects, compare the full order code, relay-load requirements, Ethernet configuration, terminal blocks, option board and saved controller project before ordering.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | PM5012-R-ETH |
| Product Type | Basic CPU / programmable logic controller processor module |
| Series | AC500-eCo V3 |
| Product Condition | NEW |
| Country of Origin | SWEDEN |
| Model Configuration | 6 digital inputs, 4 relay outputs, Ethernet and 1 option-board slot |
| Power Supply | 24 V DC |
| Application Size | 1 MB total maximum downloadable application size; 256 kB dynamically allocated for user program code and data |
| Onboard Inputs | 6 digital inputs, 24 V DC Type 1 |
| Onboard Outputs | 4 normally-open relay outputs |
| Ethernet Interfaces | 1 |
| Option-Board Slots | 1 |
| Weight | 235 g |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are confirmed in the written quotation; no unverified dispatch date is promised. |
Review the documented configuration and installation-specific checks before preparing a replacement or new-build quotation.
| Area | Documented Detail | Procurement Check |
|---|---|---|
| Digital inputs | Six 24 V DC Type 1 input channels. | Confirm signal wiring and terminal assignment. |
| Relay outputs | Four normally-open outputs arranged as two isolated groups. | Check contact load, external protection and suppression for inductive loads. |
| Ethernet | One RJ45 Ethernet interface. | Confirm network addressing and project settings. |
| Expansion | One option-board slot; PM5012-x-ETH does not use the local I/O bus. | Verify the required option board and system architecture. |
ABB specifies six 24 V DC digital inputs and four normally-open relay outputs.

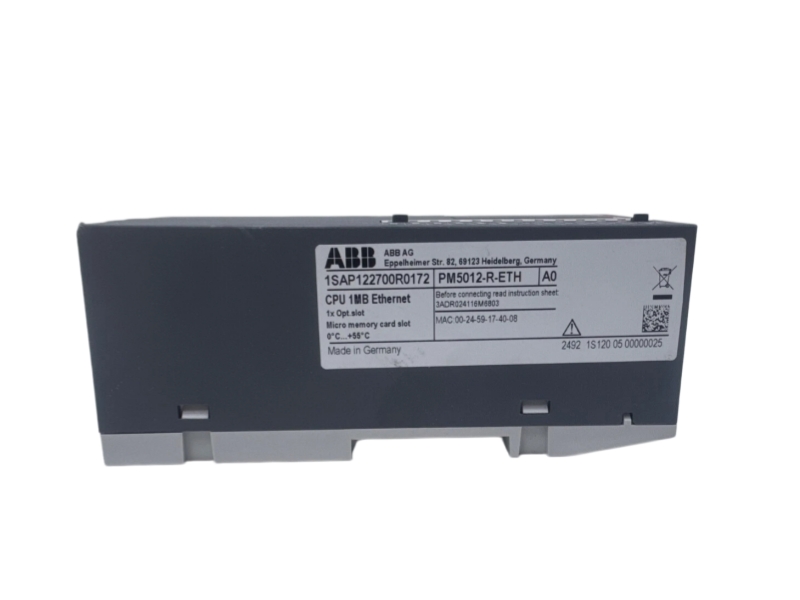

Revision-specific codes distinguish documented hardware generations and should match the original label.
ABB documents the terminal blocks as separately ordered items, so quotation contents should be checked.
This listing is prepared with Product Condition NEW. Final quotation documentation defines the supplied condition and scope.
The stated commercial warranty is With 1 year warranty and is governed by the written quotation terms.
Worldwide shipping options can be arranged after destination, quantity, packaging and customs-document requirements are reviewed.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A documented workflow supports model verification, quotation review, protective packing and international shipment coordination.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only. Our team reviews the requested part number and quantity, confirms the quoted condition, requests label photos when useful, prepares protective packaging and supplies shipment tracking and customary export documentation. Availability and dispatch timing are stated only in the written quotation.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Each entry is an independent product listing and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
