EXPERION SERIES C / ANALOG INPUT INTERFACE
GI/IS Analog Input IOTA

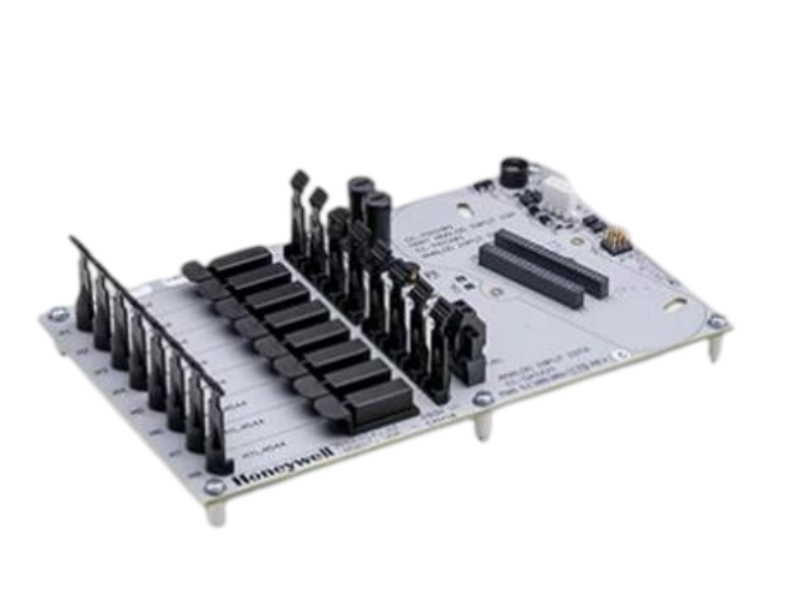

The Honeywell CC-GAIX21 is a non-redundant analog input IOTA for the Experion Series C I/O platform. Honeywell identifies it within the GI/IS analog input family and documents its use with supported high-level analog input modules, including configurations with and without HART. The IOTA forms the field-side connection and isolation interface within the complete input assembly; it is not the plug-in analog input module itself. Before replacement, verify the complete suffix, associated I/O module, isolator arrangement, signal type, channel wiring and cabinet engineering. Stockoems supports condition confirmation, item photographs and shipping coordination while the responsible engineer approves compatibility.
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
01 FIELD CIRCUIT
Verify transmitter type, loop power and hazardous-area design.
02 TERMINATION
The field interface supports the documented GI/IS assembly.
03 INPUT PROCESSING
Conversion, diagnostics and optional HART depend on the paired module.
Match CC-GAIX21 exactly and verify the associated Series C analog input module, non-redundant architecture, isolator arrangement, field signal type, wiring and approved project configuration.
| OFFICIAL TECHNICAL DATA | |
|---|---|
| Manufacturer | Honeywell |
| Complete part number | CC-GAIX21 |
| Product type | Analog Input IOTA |
| Platform | Experion Series C I/O |
| Configuration role | Non-redundant GI/IS analog input IOTA |
| Assembly size | 6 inch |
| Supported input type | Voltage or current; 2-wire or self-powered transmitters |
| Input channels | 16 |
| Input ranges | 0 to 5 V; 1 to 5 V; 0.4 to 2 V; 4-20 mA through 250 ohm |
| A/D converter resolution | 16 bits |
| Common-mode rejection | 70 dB, dc to 60 Hz with 500 ohm imbalance |
| Common-mode voltage | -6 to +5 V peak |
| Input scan rate | 50 ms |
| Hardware accuracy | +/-0.075% full scale at 23.5 +/-2 C; +/-0.15% from 0 to 60 C |
Performance values describe the supported high-level analog input assembly documented with CC-GAIX21, not stand-alone IOTA conversion.
CC-GAIX21 provides field termination and the GI/IS interface for supported Series C analog input assemblies. Signal conversion, diagnostics and HART functions depend on the associated plug-in module and configured Experion project.
Match CC-GAIX21 exactly and verify the associated Series C analog input module, non-redundant architecture, isolator arrangement, field signal type, wiring and approved project configuration.
Match CC-GAIX21 exactly and verify the associated Series C analog input module, non-redundant architecture, isolator arrangement, field signal type, wiring and approved project configuration.
It is identified on this page as GI/IS Analog Input IOTA.
The reviewed Honeywell material does not state an exact lifecycle status for CC-GAIX21.
Verify the complete suffix, associated hardware, wiring, power, project configuration and applicable engineering documentation.
Condition, availability and the one-year warranty are Stockoems commercial terms, not manufacturer commitments.
Match CC-GAIX21 exactly and verify the associated Series C analog input module, non-redundant architecture, isolator arrangement, field signal type, wiring and approved project configuration.
No automatic substitution should be assumed. Match the full part number and obtain responsible engineering approval.
