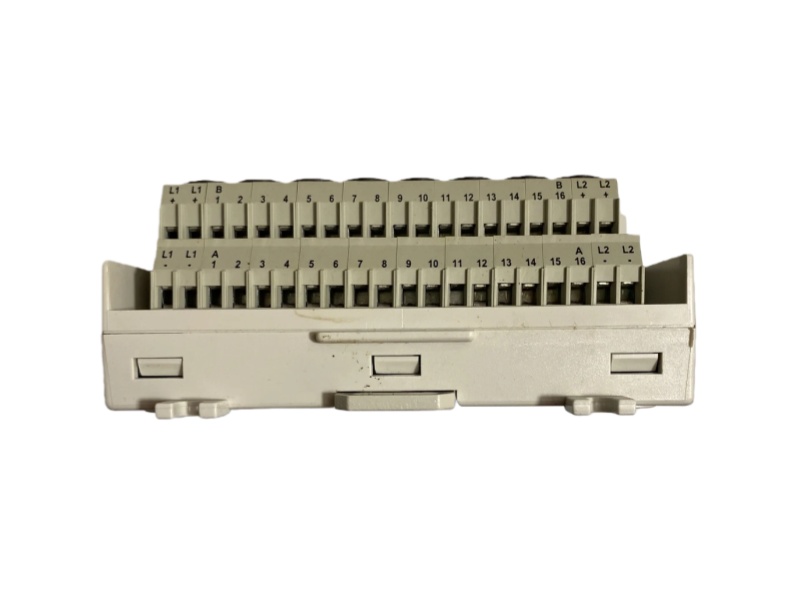

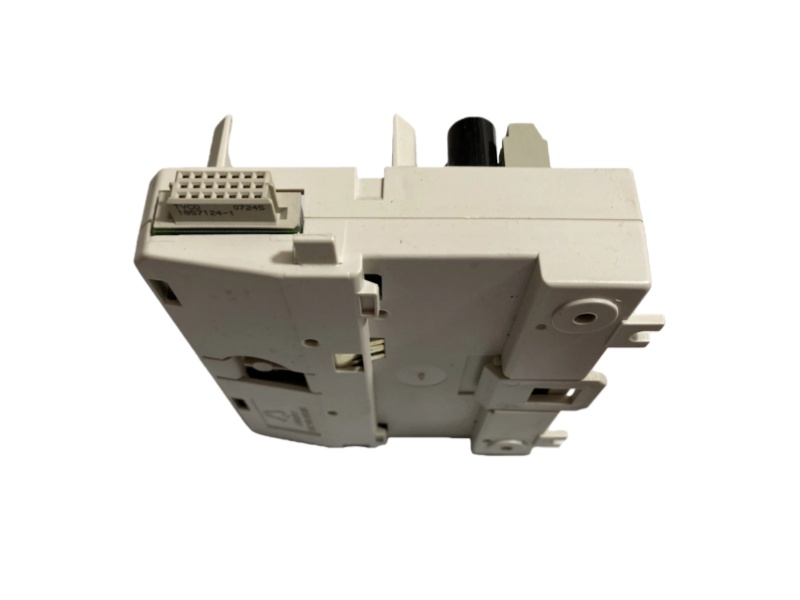

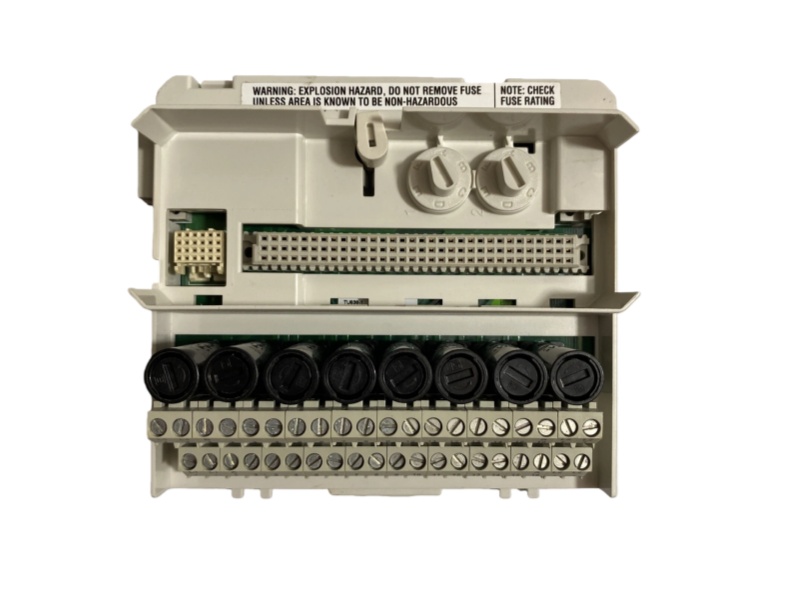

The TU838 3BSE008572R1 ABB TU838 Extended Module Termination Unit is an essential Module Termination Unit (MTU) designed for industrial control systems. This specific model, the ABB 16 I/O channels TU838 3BSE008572R1, serves as a critical interface that can support up to 16 I/O channels with a maximum rating of 50V and 3A per channel, providing substantial capacity for field signal connections.

Its primary function includes distributing the ModuleBus communication to connected I/O modules and cascading to subsequent termination units in the system.

A significant advantage of the Process Automation ABB TU838 3BSE008572R1 is its comprehensive integration capability, offering complete installation solutions with 3-wire connections, fuses, and field power distribution in a single unit. The ABB TU838 3BSE008572R1 features intelligent mechanical keying with 36 possible configurations, which physically prevents the insertion of incompatible I/O modules, thereby enhancing system reliability and preventing installation errors. This mechanical safety feature is complemented by the unit's robust DIN rail mounting design with a secure latching mechanism for proper grounding.

The design of the TERMINAL EXTENDED MODULE ABB TU838 3BSE008572R1 also includes flexible power distribution options, allowing process voltage to be connected to two individually isolated groups where supported by the I/O module. This termination unit efficiently manages two channels sharing one fused transducer power terminal, optimizing space utilization while maintaining protection. With capacity for 8 process power connections and seamless ModuleBus connectivity, the Ability™ System 800xA ABB TU838 3BSE008572R1I provides a streamlined solution for expanding control system capabilities while ensuring operational safety and maintenance convenience.
