Schneider RM1-XA315 Single-Pole Magnetic Overcurrent Relay 250–800 A

Schneider RM1-XA315 magnetic overcurrent protection relay

Inquiry now

CURRENT PROTECTION / CALIBRATION DOSSIER

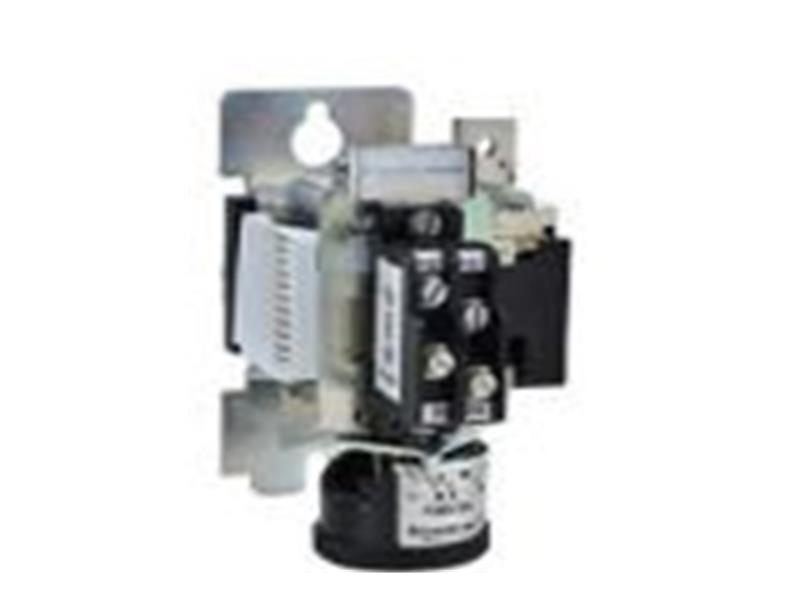

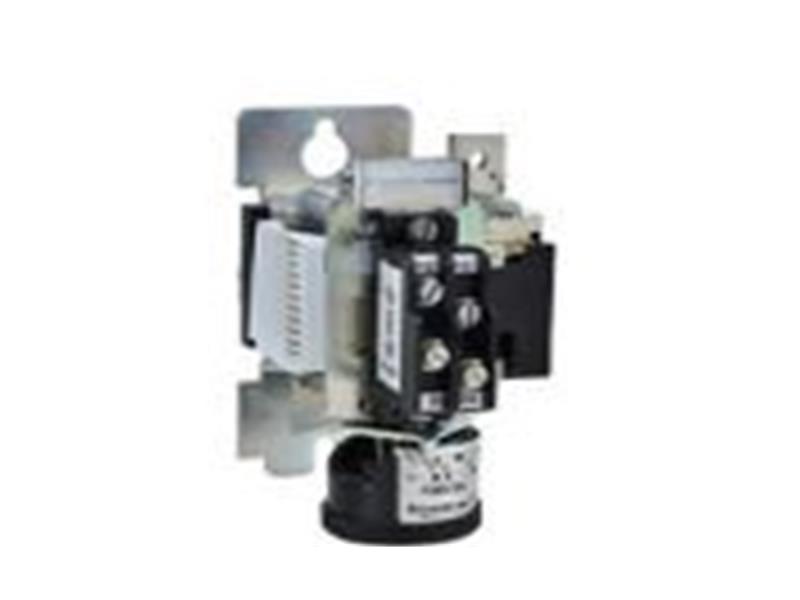

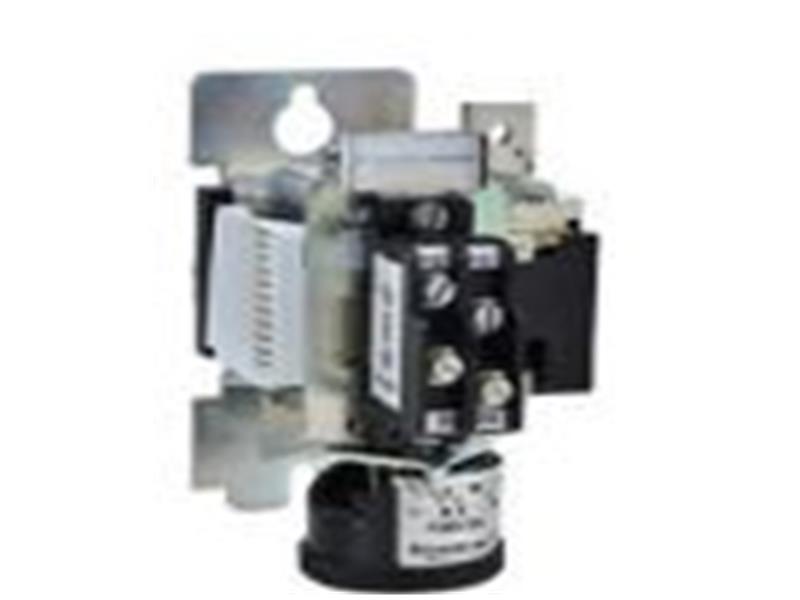

Schneider RM1-XA315

Single-pole magnetic overcurrent relay · non-latching · 1 C/O contact block

OPERATING WINDOW

250–800 A

Adjustable trip-current setting range

250 AProtection setting band800 A

MOTOR CURRENT REFERENCE

146–230 A

Recommended operating range for motor In

315 A maximum continuous current, AC or DC

Catalog identity & electrical envelope

Manufacturer	Schneider Electric	Reference	RM1-XA315
Relay family	TeSys RM1XA	Operating mode	Non-latching
Auxiliary contact	1 C/O contact block	Maximum voltage	600 V AC or DC
Frequency range	0–60 Hz	Conventional thermal current	10 A
Standard	IEC/EN 60947-4-1	Product weight	0.990 kg

ENVIRONMENTAL LIMITS

Operating temperature: −40 to +60 °C
Storage temperature: −60 to +70 °C
Maximum operating altitude: 2000 m
Maximum inclination: ±15° from normal vertical mounting

CATALOG DIMENSION KEYS

d
35.5 mm

M
74 mm

L
44 mm

L1
55 mm

S
30 mm

Terminal
M10

Application & selection workflow

Identify the protected feeder: confirm motor rated current and the required single-pole overcurrent protection scheme.
Check the operating band: use RM1-XA315 only where the 146–230 A motor-current reference and 250–800 A trip-setting range suit the design.
Verify installation: confirm mounting orientation, conductor size, M10 connection and enclosure clearances before work begins.
Commission safely: isolate power, complete torque and continuity checks, then prove the trip circuit under the site procedure.

Buyer FAQ

Is RM1-XA315 a thermal overload relay? It is cataloged as a single-pole magnetic overcurrent relay.

What should be confirmed before quotation? Exact reference, condition, quantity, target current range, installation arrangement and required documentation.

Can the trip setting replace an engineering check? No. The protection setting must be selected and commissioned by qualified personnel for the actual circuit.

EMAIL A QUOTATION REQUEST WHATSAPP PROCUREMENT

RELAY SUPPLY CONTROL

A traceable route from reference check to site receipt

Commercial and technical checkpoints are recorded around the exact RM1-XA315 requested.

01 · Reference control Manufacturer, full model, nameplate, quantity and requested condition are checked before quotation.

02 · Technical review Current band, application, dimensions and accessory requirements are confirmed against the inquiry.

03 · Condition statement Brand-new supply is quoted unless another condition is explicitly agreed in writing.

04 · Documentation Available label images, inspection records, packing information and shipping documents are matched to the order.

05 · Protective packing Terminal and housing protection, moisture barrier and shock-resistant export packing are selected for the shipment.

06 · Dispatch visibility Lead time, carrier information and tracking are communicated after shipment.

WARRANTY

12 months
Subject to the written quotation and supplied condition.

RETURNS

Documented authorization
Report discrepancies promptly with label and packaging evidence.

After-sales route

Send the sales reference, product photos, nameplate, fault description and installation observations. The service team will review the case against the written supply terms before issuing next-step instructions.
