Product Overview

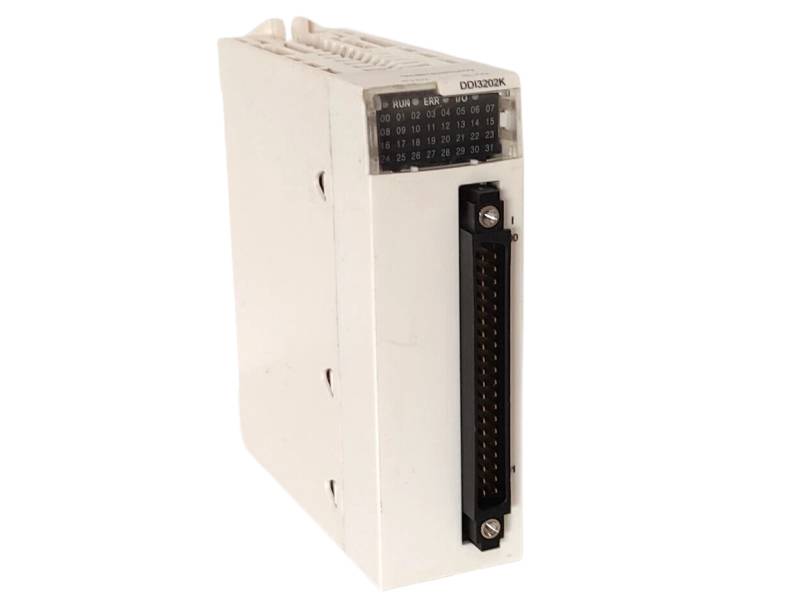

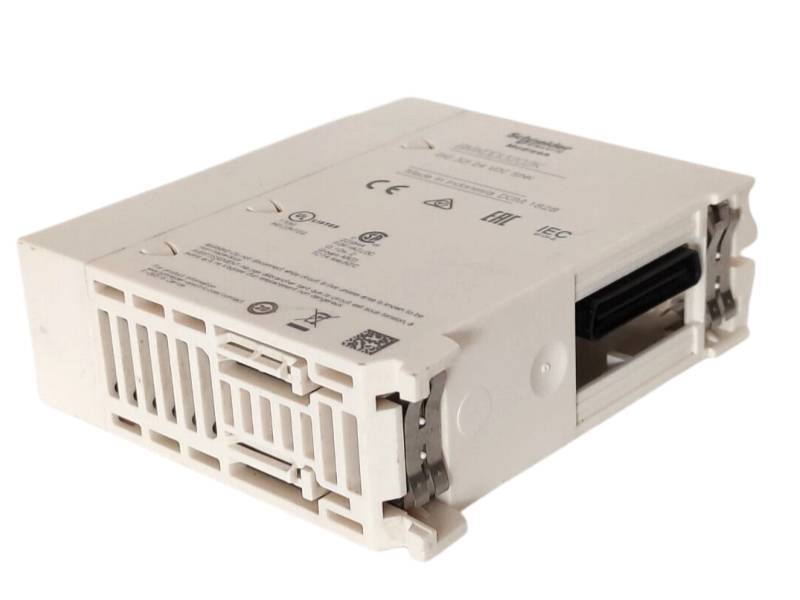

The Digital Input Module Schneider BMXDDI3202K is a Modicon X80 discrete input module featuring 32 isolated 24V DC channels with sink logic, sensor power supply, and comprehensive LED diagnostics for industrial automation.

Features and benefits

• High Channel Density: 32 isolated 24V DC inputs in a compact module for space-efficient installations.

• Sensor Compatibility: Works with 2-wire/3-wire proximity sensors per IEC 60947-5-2 standards.

• Integrated Sensor Power: Built-in 19-30V DC sensor supply simplifies wiring and reduces external components.

• Robust Protection: Features reverse polarity protection and external fuses (0.5A per channel group) for reliability.

• Clear Diagnostics: Per-channel green LEDs plus RUN and ERR indicators enable quick status monitoring.

• Global Certifications: CE, CSA, UL, and RCM approved with Green Premium sustainability compliance.

FAQ

Q1: What is the Schneider BMXDDI3202K?

A1: It is a Modicon X80 discrete input module with 32 isolated 24V DC sink inputs.

Q2: What sensors are compatible with this module?

A2: It is compatible with 2-wire and 3-wire proximity sensors per IEC 60947-5-2.

Q3: Does the BMXDDI3202K provide sensor power?

A3: Yes, it features an integrated sensor power supply of 19-30V DC.

Q4: What are the voltage thresholds for input states?

A4: State 1 is guaranteed at ≥11V; state 0 is guaranteed at ≤5V.

Q5: What protection features does this module include?

A5: It includes reverse polarity protection and external 0.5A fast-blow fuses per channel group.
