Product Overview

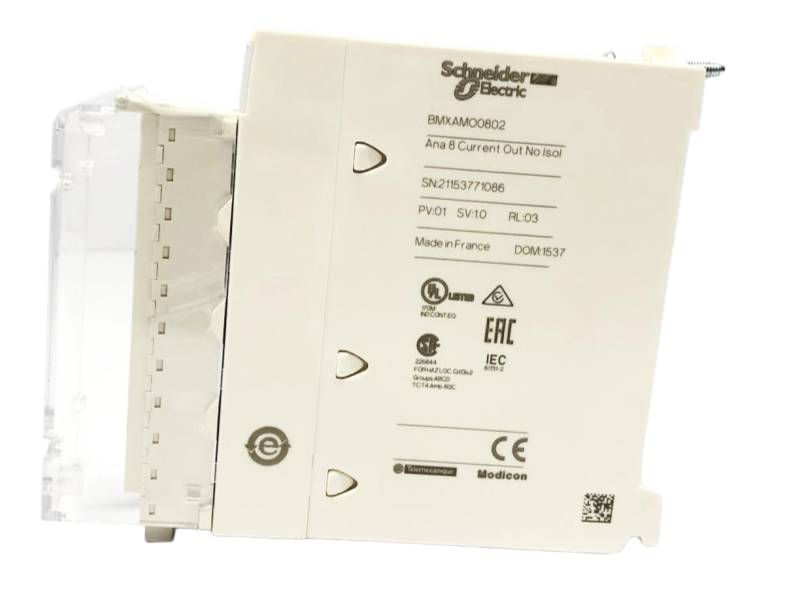

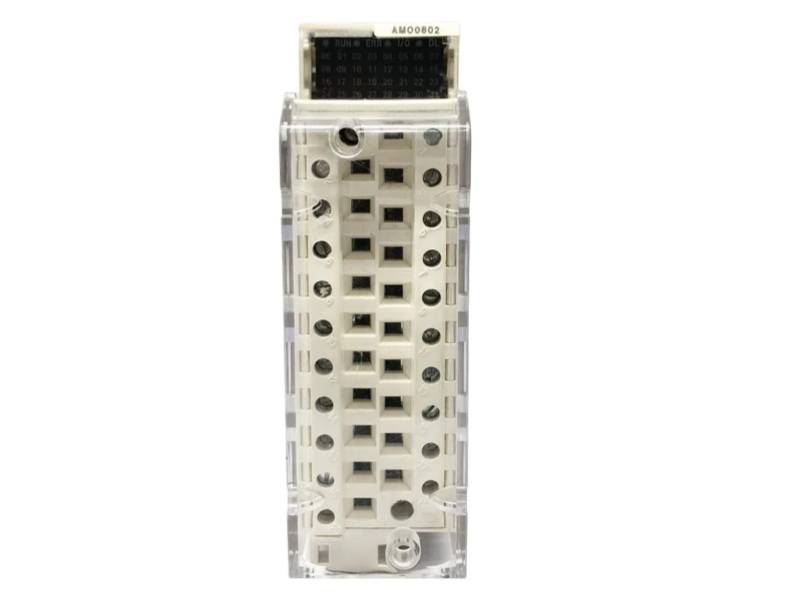

The BMXAMO0802 Schneider ANALOG OUTPUT MODULE is a Modicon M340/X80 analog output module featuring 8 high-level current outputs (0-20 mA, 4-20 mA) with 16-bit resolution and 1400 V DC isolation.

Technical Data Summary

• Output Channels: 8 high-level analog current outputs (0-20 mA, 4-20 mA).

• Resolution: 15 bits + sign for precise signal generation.

• Conversion Time: Fast ≤4 ms conversion for all 8 channels.

• Isolation: 1400 V DC between channels/ground and channels/bus.

• Protection: Open circuit detection (4-20 mA) and short circuit detection (0-20 mA).

• Load & Error: Supports ≤350 Ohm load; measurement error ≤0.25% full scale (0-60°C).

FAQ

Q1: What is the Schneider BMXAMO0802?

A1: It is a Modicon M340/X80 analog output module with 8 high-level current outputs.

Q2: What output signal types does the BMXAMO0802 support?

A2: It supports 0-20 mA and 4-20 mA current outputs with 15 bits + sign resolution.

Q3: What fault detection features are included?

A3: It features open circuit detection for 4-20 mA and short circuit detection for 0-20 mA outputs.

Q4: What is the isolation voltage of this module?

A4: It provides 1400 V DC isolation between channels and ground, and between channels and bus.

Q5: What is the conversion time for the BMXAMO0802?

A5: The conversion time is ≤4 ms for all 8 channels.
