Product Overview

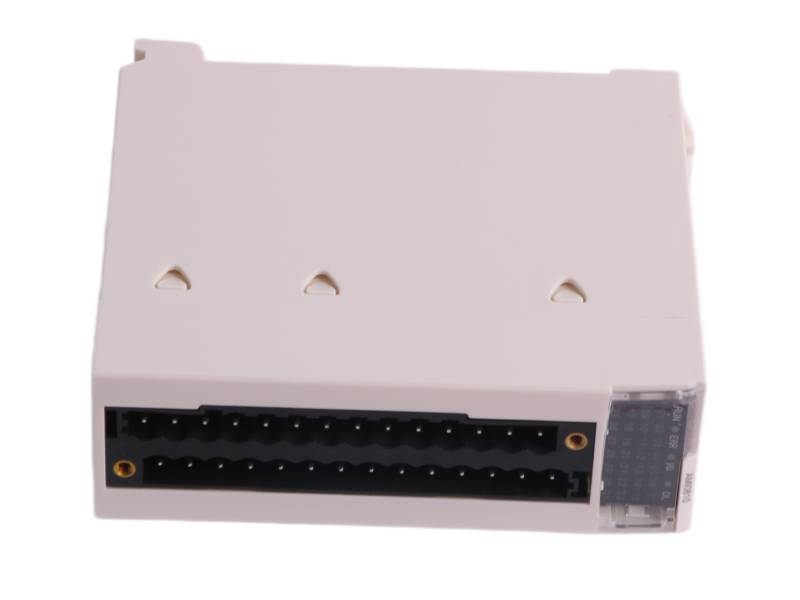

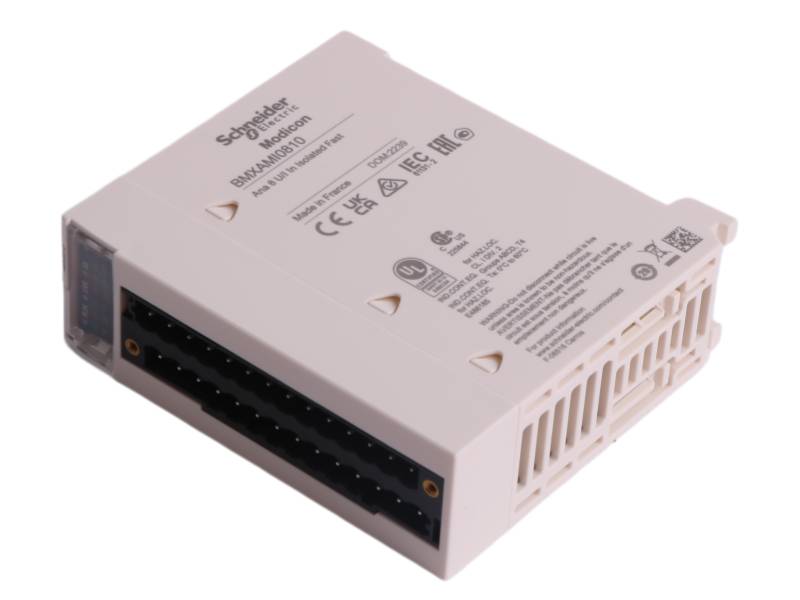

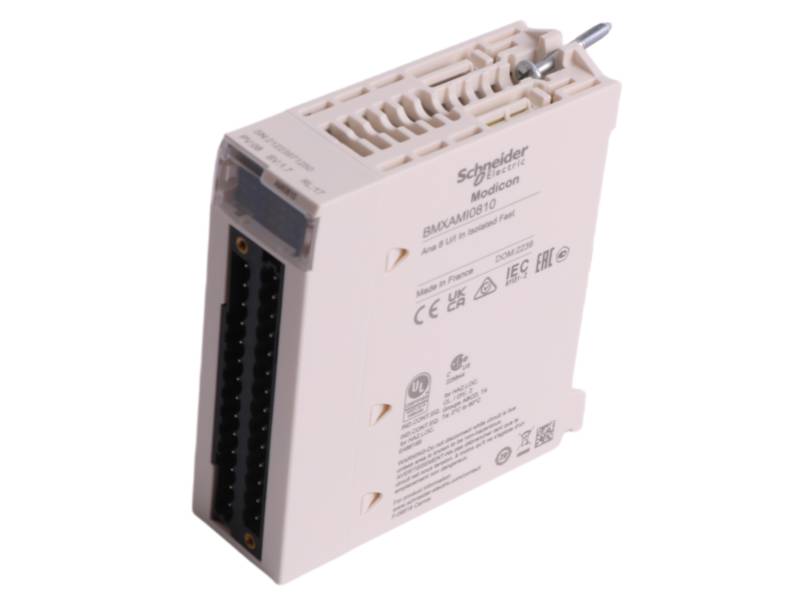

The Schneider Analog Input Module BMXAMI0800 is a Modicon X80 analog input module featuring 8 high-level, non-isolated channels supporting current and voltage signals with 16-bit conversion and fast read cycles.

Features and benefits

• Versatile Inputs: Supports 8 channels with current (±20 mA, 0-20 mA, 4-20 mA) and voltage (±10 V, 0-10 V, 1-5 V) signals.

• High Precision: 16-bit A/D conversion with 15-bit resolution and low measurement error (±0.08% at 25°C for voltage).

• Fast Response: Fast read cycle time of just 1 ms + 1 ms per channel for time-critical applications.

• Robust Protection: Withstands overloads up to ±30 mA or ±30 V, ensuring reliability in harsh conditions.

• High Isolation: 1400 V DC isolation between channels and ground/bus for enhanced safety.

• Wide Compatibility: Factory-calibrated with user-scalable digital formats (±10,000 or ±32,000).

FAQ

Q1: What is the Schneider BMXAMI0800?

A1: It is a Modicon X80 analog input module with 8 high-level, non-isolated channels for current and voltage signals.

Q2: What signal types does the BMXAMI0800 support?

A2: It supports current (±20 mA, 0-20 mA, 4-20 mA) and voltage (±10 V, ±5 V, 0-10 V, 0-5 V, 1-5 V).

Q3: What is the conversion resolution of this module?

A3: It features 16-bit analog/digital conversion with 15 bits plus sign resolution.

Q4: What are the read cycle times for the BMXAMI0800?

A4: Fast read cycle is 1 ms + 1 ms per channel; nominal read cycle is 9 ms for all 8 channels.

Q5: What isolation voltage does the module provide?

A5: It provides 1400 V DC isolation between channels and ground, and between channels and bus.
