BENTLY NEVADA • 3300 XL PROXIMITY SYSTEM
A short-lead 3/8-24 UNF probe for non-contact shaft vibration and position measurement.
| Thread | 3/8-24 UNF | Case | 5.0 in |
|---|---|---|---|
| Probe Lead | 0.5 m | Connector | ClickLoc, standard cable |
The Bently Nevada 330101-00-50-05-02-00 is a configured 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no armor. It is designed as the sensing element in a matched eddy-current transducer chain comprising the probe, compatible extension cable and 3300 XL 8 mm Proximitor Sensor.
Its complete suffix specifies zero unthreaded length, a 5.0-inch overall case, a 0.5-metre total probe length, a miniature coaxial ClickLoc connector without a connector protector, standard cable and no agency approval requirement. Every suffix must be retained when matching an installed probe.
| Item | Verified Detail |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Complete part number | 330101-00-50-05-02-00 |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Product type | 3/8-24 UNF proximity probe, without armor |
| Unthreaded length option 00 | 0.0 in |
| Overall case length option 50 | 5.0 in |
| Total length option 05 | 0.5 m (1.6 ft) |
| Connector and cable option 02 | Miniature coaxial ClickLoc connector; standard cable; no connector protector |
| Agency approval option 00 | Not required |
| Country of origin | USA |
| Technical Item | Official Data |
|---|---|
| Probe tip diameter | 8.0 mm (0.31 in) |
| Probe case thread | 3/8-24 UNF-2A |
| Probe construction | Without armor |
| Probe lead length | 0.5 m (1.6 ft) |
| Probe dc resistance at 0.5 m | 7.45 ±0.50 ohm |
| Probe cable | 75 ohm triaxial, FEP insulated standard cable |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Matched-system linear range | 2.0 mm (80 mils), approximately 0.25 to 2.3 mm from target |
| Matched-system scale factor | 7.87 V/mm (200 mV/mil) ±5% for a standard 5 m or 1 m system at 0°C to +45°C |
| Recommended radial-vibration gap | Approximately 1.27 mm (50 mils), -9 Vdc |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| Minimum flat-target diameter | 15.2 mm (0.6 in) |
| Minimum shaft diameter | 50.8 mm (2 in); 76.2 mm (3 in) recommended |
| Probe-to-lead tensile rating | 330 N (75 lbf) maximum |

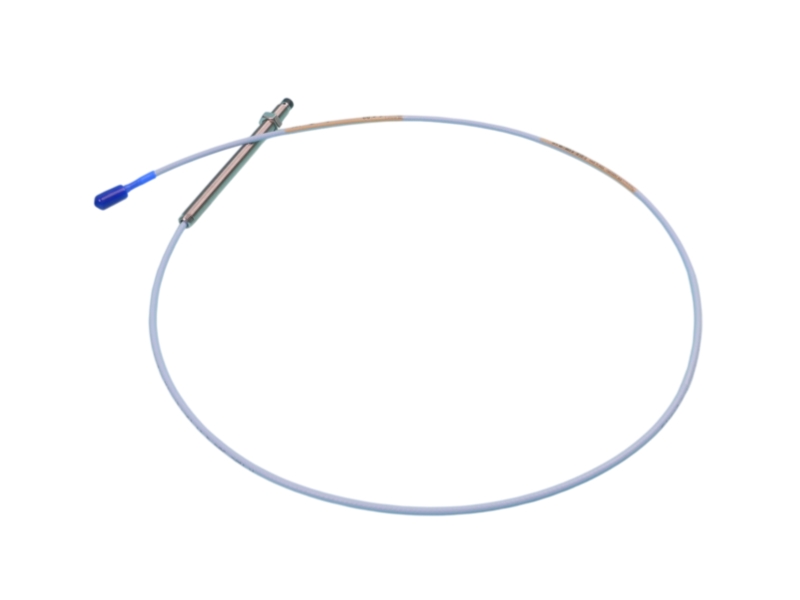

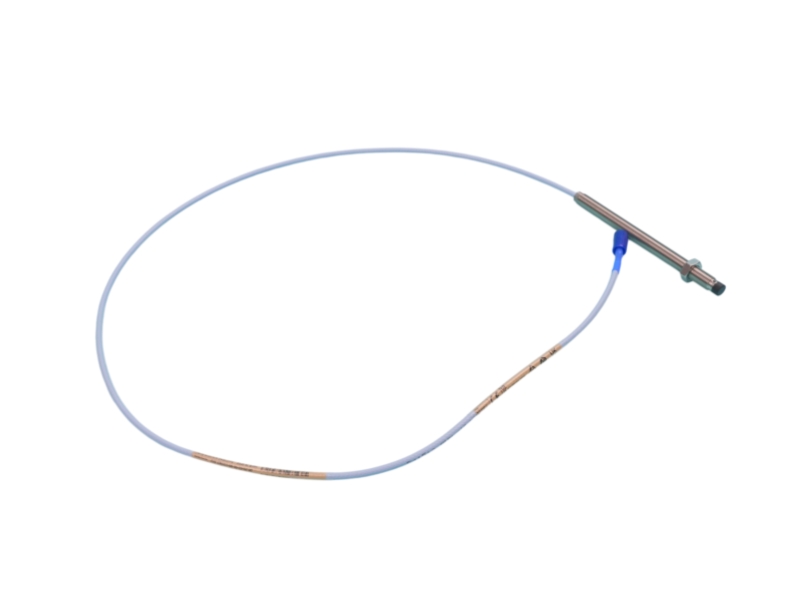

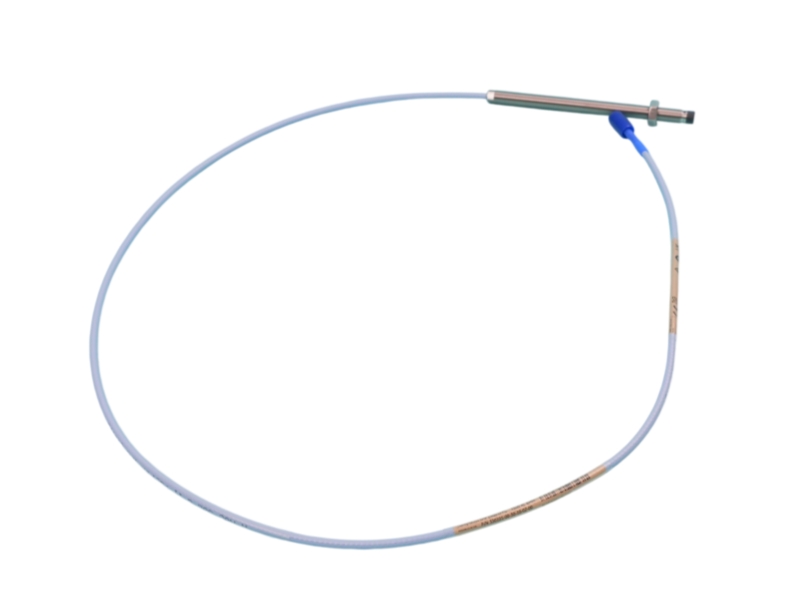

Use three current photographs to verify the complete marking, mechanical configuration and cable condition.
|
|
|
|
| Application | Engineering Relevance |
|---|---|
| Radial shaft vibration | Measures non-contact dynamic shaft displacement when installed with the matched 8 mm transducer chain. |
| Axial position | Supports thrust or axial displacement measurement where the target and mounting geometry meet system requirements. |
| Keyphasor reference | Can provide phase-reference and speed information with the appropriate monitoring channel. |
| Compact probe installations | The 0.5 m lead and 5.0-inch case suit installations designed for this exact 330101 configuration. |
Confirm zero unthreaded length, 5.0-inch case, 0.5 m lead, option 02 connector and option 00 approval requirement.
Check the extension-cable length and 3300 XL 8 mm Proximitor Sensor so the total system length is correct.
Verify the 3/8-24 UNF mounting thread, probe reach, gap, target material, shaft diameter and probe separation.
Check the ClickLoc interface, 0.5 m lead, bend route, sealing and environmental protection.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
CONFIGURATION • EVIDENCE • DELIVERY
Stockoems supports evidence-led sourcing for Bently Nevada 330101-00-50-05-02-00, concentrating on full suffix matching, mechanical geometry, cable condition and calibrated-system compatibility.
Identity EvidenceReview the complete order code, serial details and traceable labeling. |
Mechanical ReviewCheck the 8 mm tip, 3/8-24 UNF thread, 5.0-inch case and unarmored body. |
Cable and Dispatch ControlInspect the 0.5 m lead and ClickLoc connector, then protect both for shipment. |
| Stage | Review Focus | Deliverable |
|---|---|---|
| 01 • Specification | Six-part ordering code and official 330101 option structure | Configuration checklist |
| 02 • Compatibility | Extension cable, Proximitor Sensor, system length and monitor input | System-match notes |
| 03 • Visual evidence | Tip, case, thread, connector and full lead condition | Current photo record |
| 04 • Logistics | Protective packing, destination, delivery method and warranty terms | Shipment plan |
Send the required quantity, delivery country, installed probe label, 3/8-24 UNF mounting details, extension-cable code, Proximitor Sensor code and photographs of the current connector and cable route.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
