BENTLY NEVADA • 31000 PROXIMITY PROBE HOUSING
A 16.5-inch English housing for protected 3300 XL 8 mm radial-vibration and Keyphasor probe installations.
| Probe | 3300 XL 8 mm, multiple approvals | Penetration | 16.5 in |
|---|---|---|---|
| Probe Cable | 1.0 m | Fittings | One NPT fitting |
The Bently Nevada 31000-28-10-00-165-01-02 is an English 31000 proximity-probe housing configured with a multiple-approval 3300 XL 8 mm probe and a 1.0 m probe cable. The housing provides external access for probe gap adjustment or replacement in through-machine-case radial vibration and Keyphasor installations.
Its complete suffix defines no standoff adapter, 16.5-inch probe penetration, one 3/4-14 npt fitting and two plugs, and a 3/4-14 NPT mounting thread. The housing provides Type 4X/IP66 mechanical and environmental protection; it is not an explosion-proof enclosure.
| Item | Verified Detail |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Complete part number | 31000-28-10-00-165-01-02 |
| Product family | 31000 English Proximity Probe Housing Assembly |
| Product type | Externally mounted proximity probe housing assembly |
| Probe option 28 | 3300 XL 8 mm probe, multiple approvals |
| Probe cable option 10 | 1.0 m (39 in) |
| Standoff option 00 | No standoff adapter |
| Penetration option 165 | 16.5 in probe penetration |
| Fitting option 01 | One 3/4-14 NPT fitting and two plugs |
| Mounting thread option 02 | 3/4-14 NPT |
| Country of origin | USA |
| Technical Item | Official Data |
|---|---|
| Protection rating | Type 4X and IP66 |
| Housing material | Glass-reinforced PPS thermoplastic with conductive fibers |
| Sleeve and retaining chain | AISI 304 stainless steel |
| Outer sleeve and exterior screws | AISI 303 stainless steel |
| Housing O-ring material | Neoprene |
| 3300 XL 8 mm probe temperature | -51°C to +177°C (-60°F to +351°F), operating and storage |
| Recommended retaining-nut torque | 29.4 N·m (260 in·lb) |
| Typical housing weight | 1.2 kg (2.6 lb) |
| Typical housing strength | 912 N (205 lb) at the documented test position |
| Probe cable length | 1.0 m (39 in) |
| Probe penetration | 16.5 in; adjustment range ±0.5 in (13 mm) |
| Long-sleeve support | Required because C plus D exceeds 12 in (305 mm) |
| Fittings | One 3/4-14 NPT fitting and two plugs |
| Outer mounting thread | 3/4-14 NPT |
| Applicable housing standard | API 670 externally mounted proximity probe housing |

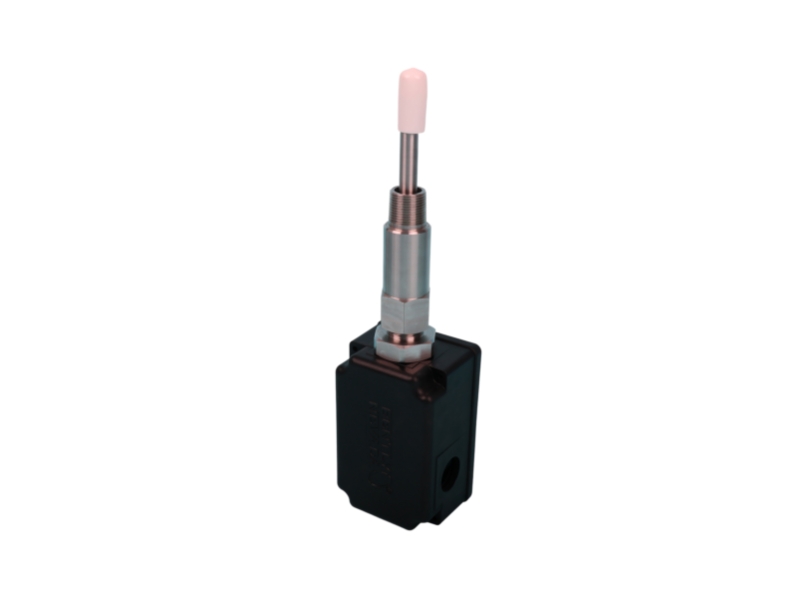

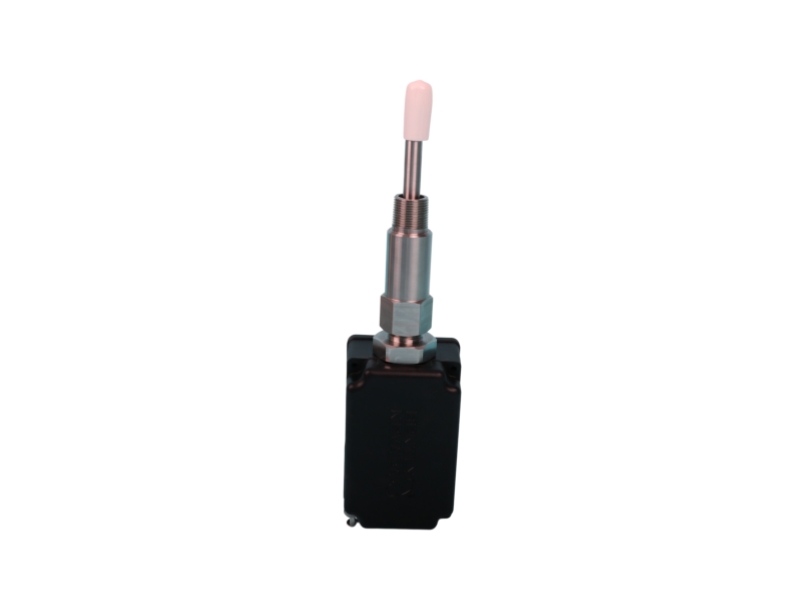

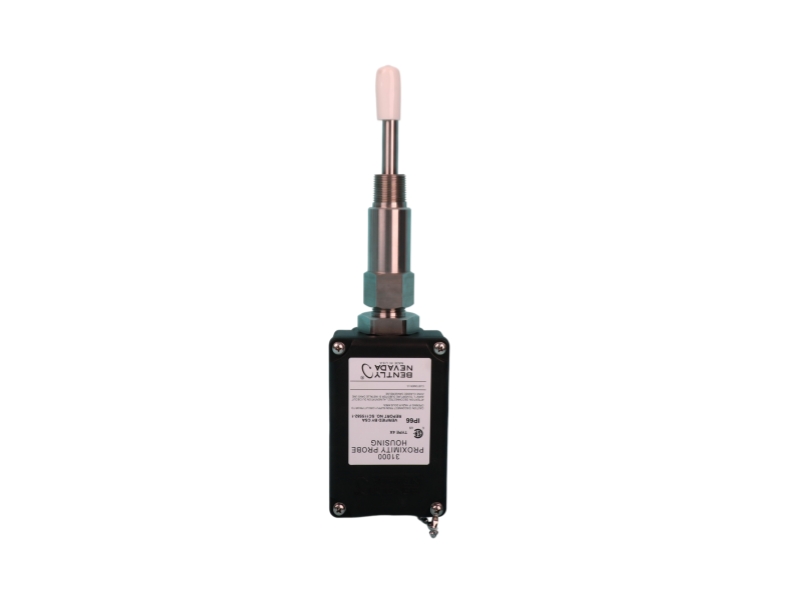

Use three current photographs to verify identity, housing geometry and conduit configuration.
|
|
|
|
| Application | Engineering Relevance |
|---|---|
| Radial shaft vibration | Provides external access for an installed 8 mm probe used in relative-vibration measurement through the machine case. |
| Keyphasor measurement | Supports a radially mounted phase-reference probe when matched to the correct transducer and monitor chain. |
| External gap adjustment | Allows probe-gap access with the 16.5-inch penetration assembly without machine disassembly. |
| Probe replacement | Supports removal and replacement while preserving the specified single-entry conduit routing and 3/4-14 NPT mounting interface. |
Confirm option 28 probe, 1.0 m cable, no standoff, 16.5-inch penetration, option 01 fittings and option 02 mounting thread.
The 16.5-inch C-plus-D dimension exceeds 12 inches; provide support near the probe to prevent resonance.
Verify the installed 3300 XL 8 mm probe, extension cable, Proximitor Sensor, monitor channel and hazardous-area control drawing.
Check one 3/4-14 npt fitting and two plugs, conduit routing, seals and the 3/4-14 NPT machine-case interface. Do not treat the housing as explosion-proof.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
