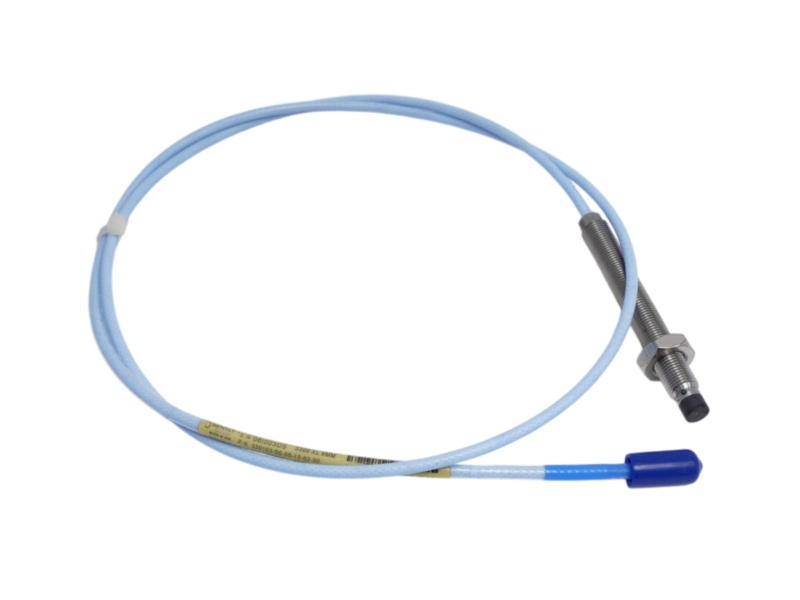

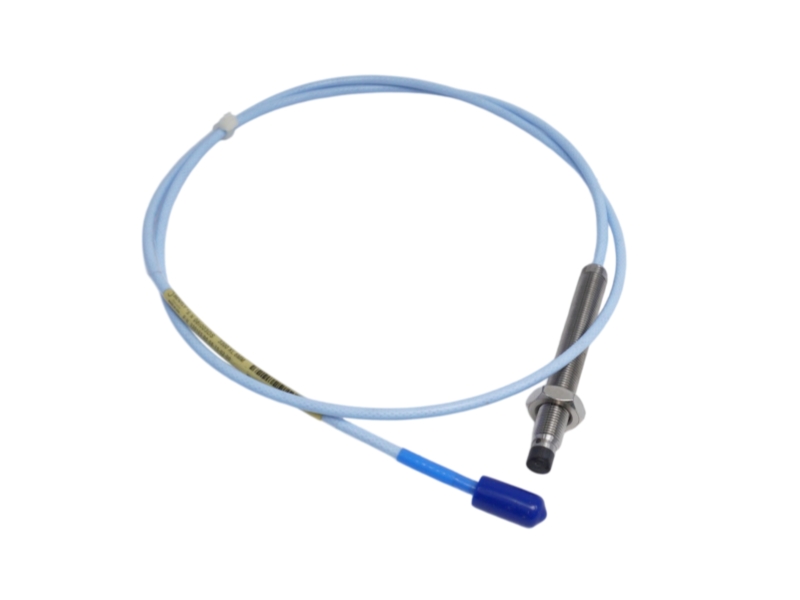

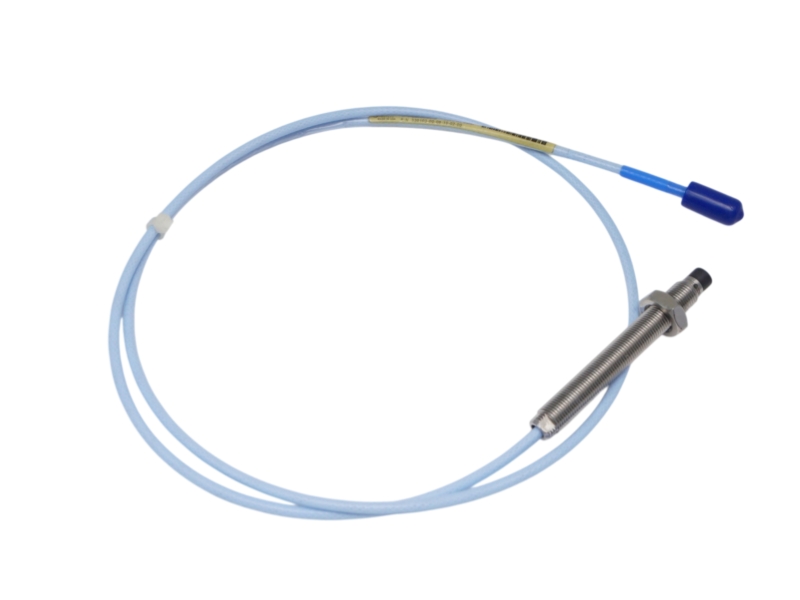

M10 x 1 unarmored probe with a 1.0 m standard lead and protected ClickLoc connector.
| ThreadM10 x 1 | Case Length80 mm | Probe Length1.0 m | ConnectorProtected ClickLoc |
The Bently Nevada 330103-00-08-10-01-00 is a configured 3300 XL 8 mm proximity probe for non-contacting shaft vibration and position measurement. The 330103 family uses an M10 x 1 threaded case without armor. The 8 mm transducer family supports radial vibration, axial position, Keyphasor reference and speed measurements when combined with the matching extension cable and Proximitor Sensor.
The suffix groups specify 0 mm unthreaded length, 80 mm overall case length, 1.0 m total probe length, a miniature coaxial ClickLoc connector with protector and standard cable, and no agency approval requirement. Replacement decisions must preserve every suffix and the complete system length.
| Item | Verified Detail |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Complete part number | 330103-00-08-10-01-00 |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Product type | M10 x 1 proximity probe, without armor |
| Unthreaded length option 00 | 0 mm |
| Overall case length option 08 | 80 mm |
| Total length option 10 | 1.0 m |
| Connector and cable option 01 | Protected miniature coaxial ClickLoc connector; standard cable |
| Agency approval option 00 | Not required |
| Country of origin | USA |
| Technical Item | Official Data |
|---|---|
| Probe tip diameter | 8.0 mm (0.31 in) |
| Linear range of matched system | 2.0 mm (80 mils), approximately 0.25 to 2.3 mm from target |
| Incremental scale factor of 1 m system | 7.87 V/mm (200 mV/mil) ±5% at 0°C to +45°C |
| Recommended radial-vibration gap | Approximately 1.27 mm (50 mils), -9 Vdc |
| Frequency response of matched system | 0 to 10 kHz, +0/-3 dB |
| Minimum flat target diameter | 15.2 mm (0.6 in) |
| Minimum shaft diameter | 50.8 mm (2 in); 76.2 mm (3 in) recommended |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe cable | 75 ohm triaxial, FEP insulated standard cable |
| 1.0 m probe dc resistance | 7.59 ±0.50 ohm |
| Probe-to-lead tensile rating | 330 N (75 lbf) maximum |
| Application | Engineering Relevance |
|---|---|
| Radial shaft vibration | Supports non-contact shaft displacement measurement in rotating machinery. |
| Axial position | Measures thrust or axial displacement when the target and mounting geometry meet system requirements. |
| Keyphasor reference | Can support phase-reference and speed measurements with the matched 3300 XL system. |
| Machinery protection retrofits | Fits installations designed for the M10 x 1 unarmored 330103 configuration. |
Confirm unthreaded length, case length, total lead length, connector/cable option and approval code.
Check the 8 mm probe, extension cable and Proximitor Sensor so their combined electrical length matches the installed system.
Verify M10 x 1 mounting, tip clearance, target material, shaft diameter and probe separation.
Confirm ClickLoc condition, protector, cable sealing, bend routing and any hazardous-area documentation.
It is a configured Bently Nevada 3300 XL 8 mm M10 x 1 proximity probe with a 1.0 m standard lead and protected ClickLoc connector.
For this metric probe ordering structure, option 08 specifies an 80 mm overall case length.
No. Measurement performance depends on the matching 3300 XL 8 mm extension cable and Proximitor Sensor.
Confirm the full suffix, thread, case length, cable length, connector protector, system length, target geometry and approval requirement.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Stockoems supports evidence-led sourcing for Bently Nevada 330103-00-08-10-01-00, focusing on exact suffix decoding, M10 mounting geometry, connector condition and matched-system compatibility.
