Bently Nevada Machinery Condition Monitoring
Four-metre FluidLoc extension cable with connector protector for matched 3300 XL 11 mm systems.
| Cable Length4.0 m | System Family3300 XL 11 mm | Cable TypeFluidLoc | ApprovalNot required |

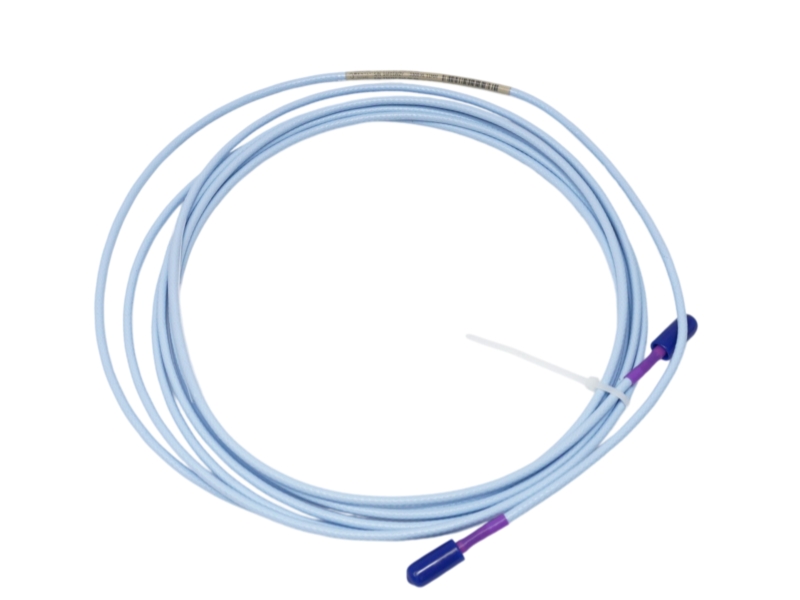

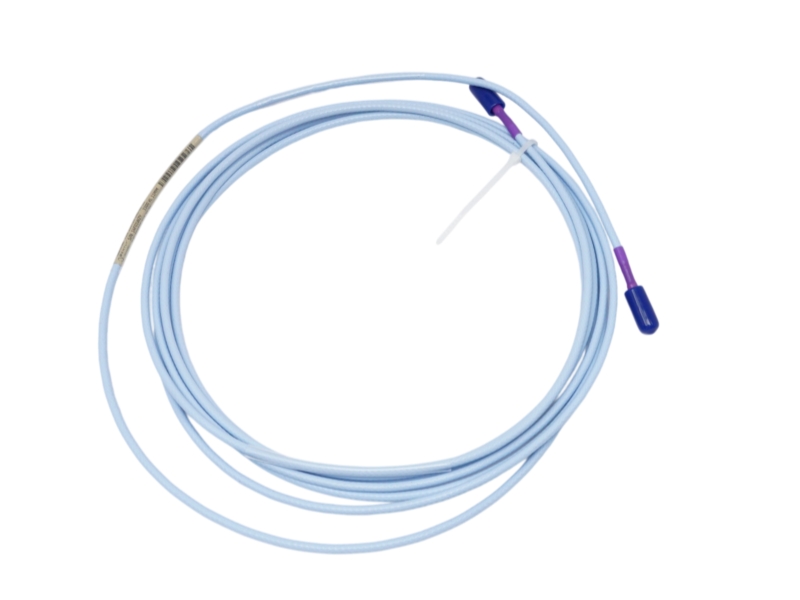

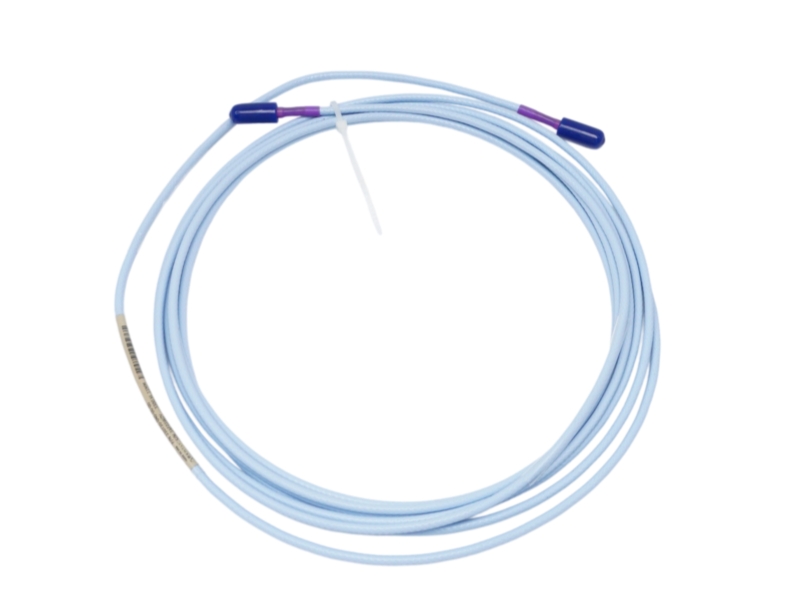

The Bently Nevada 330730-040-12-00 is a 4.0 m extension cable for the 3300 XL 11 mm Proximity Transducer System. It carries the probe signal to the matching 11 mm Proximitor Sensor as part of a calibrated component chain used for vibration, position, differential-expansion, speed and phase-reference measurements.
Option 040 specifies 4.0 m cable length, option 12 specifies FluidLoc cable with a connector protector, and option 00 specifies that agency approval is not required. The probe and extension cable lengths must be selected so their sum matches the Proximitor Sensor system length.
| Item | Verified Detail |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Complete part number | 330730-040-12-00 |
| Product family | 3300 XL 11 mm Proximity Transducer System |
| Product type | Extension cable |
| Cable length option 040 | 4.0 m (13.1 ft) |
| Cable option 12 | FluidLoc cable with connector protector |
| Agency approval option 00 | Not required |
| Country of origin | USA |
| Technical Item | Official Data |
|---|---|
| Cable length | 4.0 m (13.1 ft) |
| Center-conductor dc resistance | 1.0 ±0.25 ohm |
| Coaxial-conductor dc resistance | 0.3 ±0.1 ohm |
| Extension-cable capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Matched-system linear range | 4.0 mm (160 mils) |
| Matched-system scale factor | 3.94 V/mm (100 mV/mil) ±10% |
| Matched-system frequency response | 0 to 8 kHz, +0/-3 dB typical |
| Recommended matched-system gap | 2.5 mm (100 mils) |
| Maximum field wiring | 305 m (1,000 ft) between Proximitor Sensor and monitor |
| System requirement | Use with a 3300 XL 11 mm probe and 3300 XL 11 mm Proximitor Sensor |
| Application | Engineering Relevance |
|---|---|
| Axial position loops | Connects the 11 mm probe to the Proximitor Sensor in thrust-position measurements. |
| Differential expansion | Supports extended-range turbine displacement measurements when the complete chain is matched. |
| Reciprocating-compressor monitoring | Carries rod-position or rod-drop signals within the specified 11 mm system. |
| Speed and phase reference | Maintains the specified signal path for tachometer, zero-speed and Keyphasor applications. |
Use this cable only with 3300 XL 11 mm probe and Proximitor Sensor components.
Add probe length and extension-cable length, then match the result to the Proximitor Sensor system length.
Verify FluidLoc construction, connector protector and the site’s approval requirement.
Check connectors, sealing, bend route, oil exposure, mechanical protection and separation from interference sources.
It is a 4.0 m FluidLoc extension cable with connector protector for the Bently Nevada 3300 XL 11 mm proximity transducer system.
It specifies a cable length of 4.0 m, equivalent to 13.1 ft.
No. It is a matched electrical component for the 3300 XL 11 mm probe and Proximitor Sensor chain.
Confirm cable length, FluidLoc option, protector, approval code, connector condition and the required total system length.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Stockoems supports exact sourcing for Bently Nevada 330730-040-12-00, with emphasis on the 4.0 m length, FluidLoc option, connector protector and matched-system length calculation.
Label and Length ReviewCheck the complete cable code, traceability label and documented 4.0 m length. |
Connector InspectionReview both connectors, protector fit, contact cleanliness and sealing transitions. |
Routing and Packing ControlDocument jacket condition, bend route requirements and protective coil packing. |
| Stage | What We Check | Buyer Benefit |
|---|---|---|
| Order-code review | Length, cable construction, connector protector and approval suffix | Avoids near-model substitution |
| System-length review | Probe lead plus 4.0 m extension versus Proximitor Sensor length | Supports calibrated chain matching |
| Condition evidence | Label, connectors, jacket and full cable photographs | Provides a traceable receiving reference |
| Logistics planning | Coil protection, packing, delivery method and warranty terms | Reduces cable damage in transit |
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
