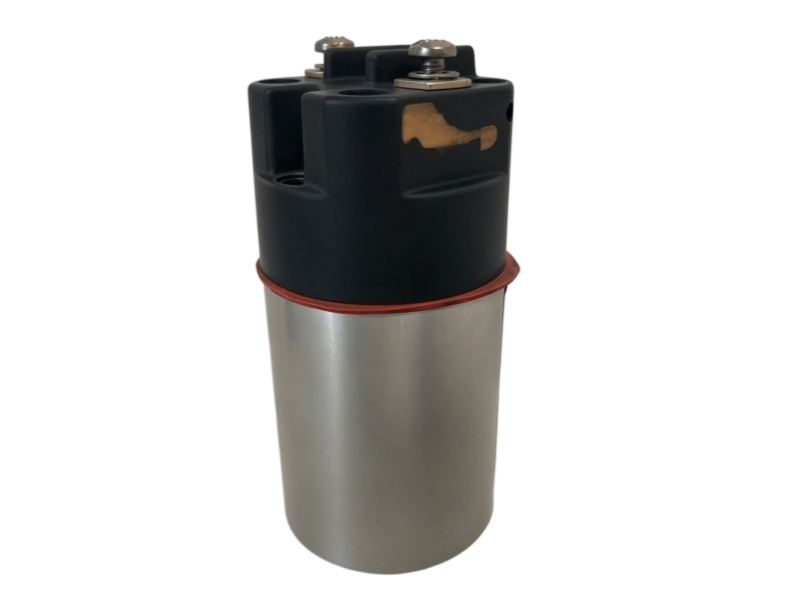

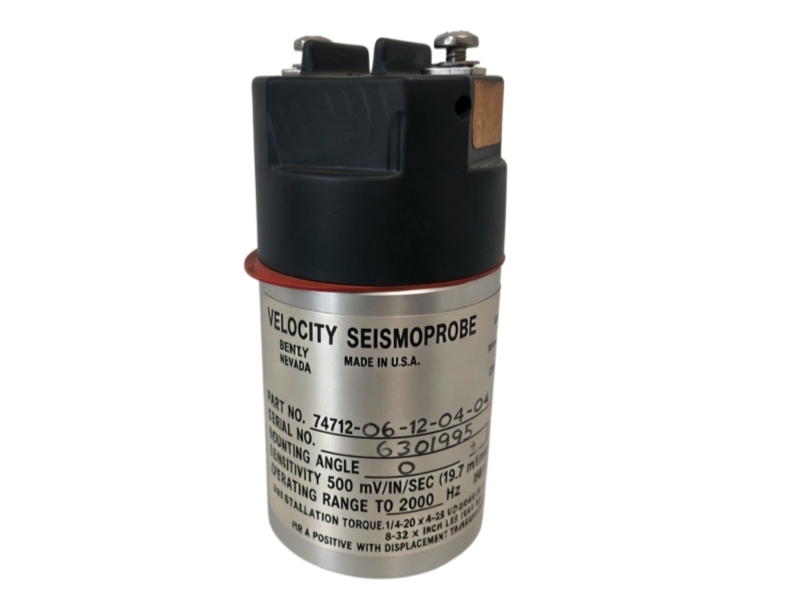

High-Temperature Two-Wire Seismoprobe Velocity Transducer
Bently Nevada 74712-06-12-04-04 is a high-temperature, two-wire Seismoprobe velocity transducer for absolute vibration measurement on bearing housings, machine casings and structural surfaces. Its self-powered moving-coil design produces a voltage proportional to vibration velocity and does not require external excitation. This exact configuration specifies a vertical calibration orientation with a 10 Hz minimum operating frequency, an isolated circular 1/2-20 UNF-2A mounting base, a side-mounted connector and ATEX/IECEx approval. It supports demanding machinery protection and diagnostic applications. Before replacement, verify the complete suffix, mounting surface, cable, monitor input, load, operating temperature, hazardous-area requirements and calibration orientation.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Part Number | 74712-06-12-04-04 |
| Product Type | High-temperature two-wire Seismoprobe velocity transducer |
| Measurement | Absolute bearing housing, casing or structural vibration |
| Technology | Self-powered two-wire moving-coil design |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Operating and Storage Temperature | -29°C to +204°C (-20°F to +400°F) |
| Orientation / Minimum Frequency | Option 06: 0° orientation; 10 Hz (600 cpm) |
| Frequency Response | From 10 Hz to 1 kHz (60,000 cpm), +0/-3 dB typical |

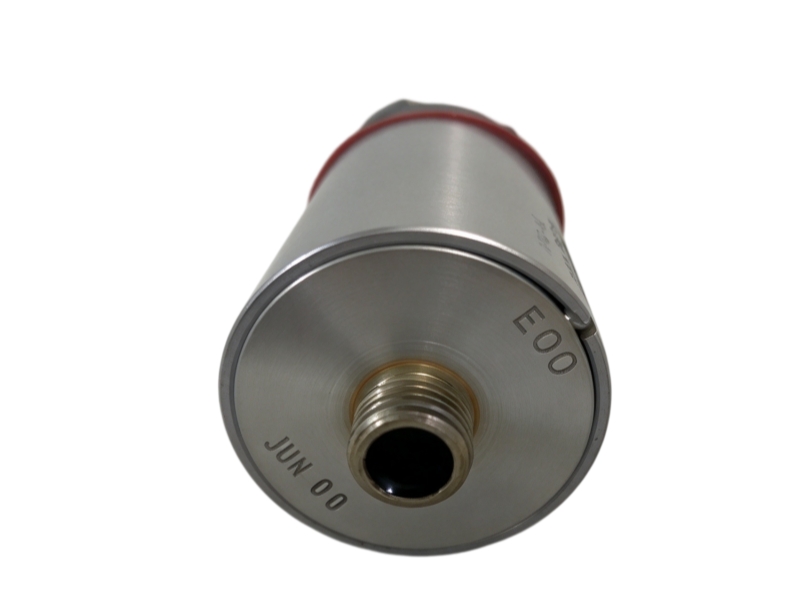

| Mounting Base | Option 12: isolated circular base, 1/2-20 UNF-2A stud |
| Connector | Option 04: side mount |
| Agency Approval | Option 04: ATEX/IECEx |
| Typical Dimensions | 102 mm height × 41 mm diameter, depending on connector option |
| Typical Weight | 480 g (17 oz) |
| Maximum Lead Length | 305 m (1,000 ft) to a Bently Nevada 3300 or 3500 monitor |
| Monitoring Fit | Velocity inputs used with Bently Nevada 3300 or 3500 monitoring systems after channel review |
|---|---|
| Typical Applications | High-temperature turbine, compressor, pump and machine-casing vibration measurement |
| Maintenance Use | Like-for-like replacement and portable or continuous velocity measurement after installation verification |
No exact manufacturer lifecycle status for 74712-06-12-04-04 is stated here because an order-code-specific lifecycle declaration was not confirmed in the official product material used for this page.
It identifies a 74712 high-temperature Seismoprobe with 0° orientation, isolated 1/2-20 base, side connector and ATEX/IECEx approval.
It measures absolute vibration of bearing housings, machine casings and structural surfaces.
No. The moving-coil two-wire design is self-powered and produces an output proportional to vibration velocity.
The 74712 range is specified from -29°C to +204°C for operation and storage.
No lifecycle conclusion is stated because the exact order-code status was not confirmed in official product material.
Yes. Product, label, connector, mounting-base and packaging photos can be requested for review.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Practical verification, inspection, packing and delivery support for automation maintenance teams.
Our team reviews the complete part number, suffix, hardware identification, interface requirements and visible product-label details before a supply proposal is confirmed.
| Stage | What We Check |
|---|---|
| Incoming Review | Label, enclosure, connectors and visible condition |
| Order Confirmation | Complete model, requested quantity and destination |
| Protective Packing | Anti-static and impact-resistant preparation appropriate to the item |
| Dispatch Support | Shipping documents, tracking details and customs information |
Worldwide shipping options are arranged after destination and packing requirements are reviewed. Written warranty terms, shipment tracking and a clear return-authorization process support the transaction after dispatch.
Send the complete order code, quantity, destination country and clear product-label photos.
No. Engineers should compare the full suffix, hardware revision, interfaces, field wiring and project configuration.
Available evidence may include the full product, nameplate, connector, seal, accessory and packaging photographs.
Incomplete labels, mixed suffixes, unclear condition statements and compatibility claims without configuration checks require further review.
Share the complete model, quantity, destination and inspection needs for a focused supply and compatibility review.
