Bently Nevada Machinery Condition Monitoring

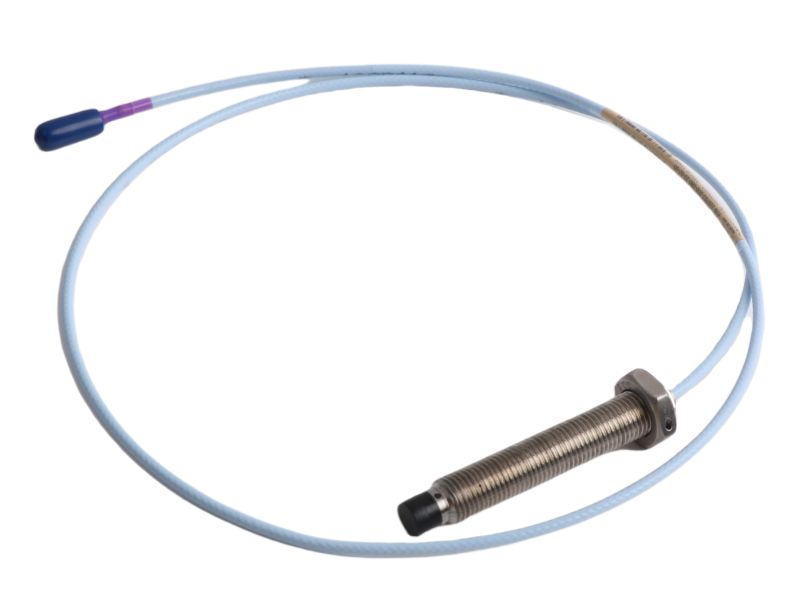

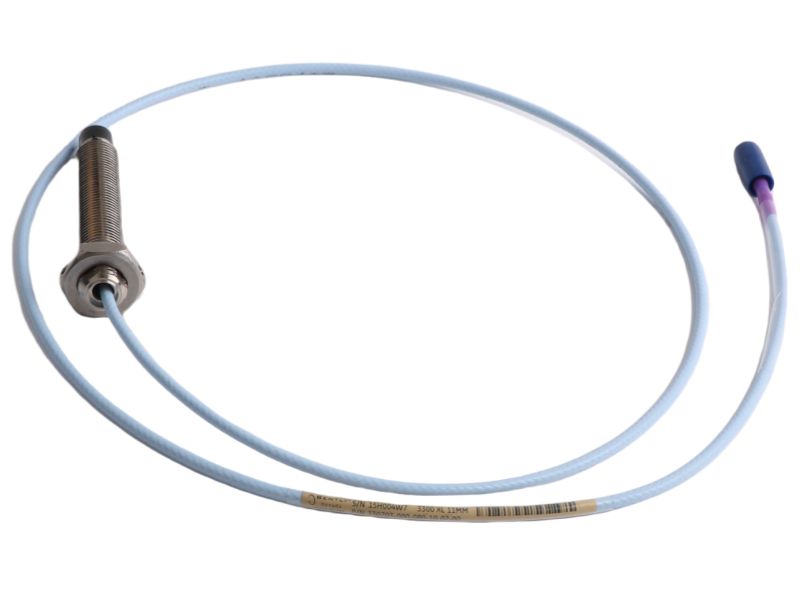

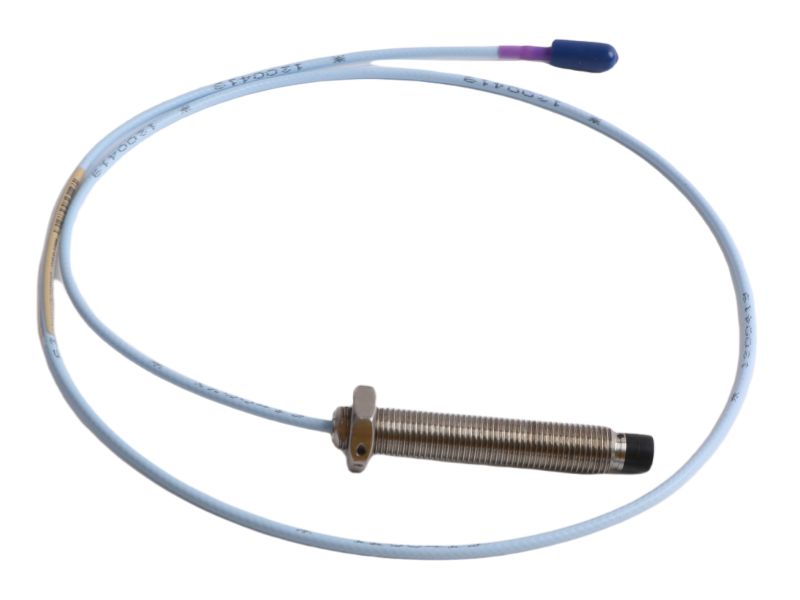

M14 x 1.5 unarmored probe with 1.0 m FluidLoc lead and protected ClickLoc connector.
| ThreadM14 x 1.5 | Case Length50 mm | Probe Length1.0 m | CableProtected FluidLoc |
The Bently Nevada 330703-000-50-10-11-00 is a configured 3300 XL 11 mm proximity probe for extended-range non-contacting vibration and displacement measurement. The 11 mm system provides a 3.94 V/mm output and a longer linear range than the standard 8 mm system for applications such as thrust position, differential expansion and reciprocating-compressor rod position.
The complete code identifies an M14 x 1.5 probe without armor, 0 mm unthreaded length, 50 mm overall case length, 1.0 m total probe length, a protected miniature coaxial ClickLoc connector with FluidLoc cable, and no agency approval requirement. All components must belong to the 3300 XL 11 mm system.
| Item | Verified Detail |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Complete part number | 330703-000-50-10-11-00 |
| Product family | 3300 XL 11 mm Proximity Transducer System |
| Product type | M14 x 1.5 proximity probe, without armor |
| Unthreaded length option 000 | 0 mm |
| Overall case length option 50 | 50 mm |
| Total length option 10 | 1.0 m |
| Connector and cable option 11 | Protected miniature coaxial ClickLoc connector; FluidLoc cable |
| Agency approval option 00 | Not required |
| Country of origin | USA |
| Technical Item | Official Data |
|---|---|
| Probe tip diameter | 11 mm family |
| Matched-system linear range | 4.0 mm (160 mils), approximately 0.5 to 4.5 mm from target |
| Extended DSL range | Approximately 0.5 to 5.0 mm; not applicable with zener barriers |
| Incremental scale factor | 3.94 V/mm (100 mV/mil) ±10% |
| Recommended gap setting | 2.5 mm (100 mils) |
| Frequency response | 0 to 8 kHz, +0/-3 dB typical |
| Recommended flat-target diameter | 30.5 mm (1.2 in) minimum |
| Recommended shaft diameter | 152 mm (6.0 in) |
| 1.0 m probe dc resistance | 5.9 ±0.5 ohm |
| Proximitor input requirement | One non-contacting 3300 XL 11 mm probe and extension cable |
| Maximum field wiring | 305 m (1,000 ft) between Proximitor Sensor and monitor |
| Application | Engineering Relevance |
|---|---|
| Axial thrust position | Uses the 11 mm family’s longer linear range for controlled axial-displacement measurement. |
| Steam-turbine differential expansion | Supports ramp differential-expansion measurement with the appropriate mounting geometry. |
| Reciprocating-compressor rod position | Measures rod position or rod drop with a compatible target and monitoring channel. |
| Speed and phase reference | Can support tachometer, zero-speed and Keyphasor reference measurements. |
Confirm all suffix groups, especially case length, FluidLoc cable and connector protector.
The probe, extension cable and Proximitor Sensor must all be 3300 XL 11 mm components; 7200-series components are not retained during an upgrade.
Verify that the monitoring system and configuration software support the 3300 XL 11 mm transducer option.
Confirm target diameter and material, M14 x 1.5 mounting, gap, cable route and probe separation.
It is a Bently Nevada 3300 XL 11 mm M14 x 1.5 proximity probe with a 1.0 m FluidLoc lead and protected ClickLoc connector.
Its 4.0 mm linear range supports applications that need more displacement range than the standard 8 mm system.
No. Baker Hughes states that every transducer-system component must be replaced with 3300 XL 11 mm components during that upgrade.
Check the complete suffix, mounting thread, case length, total system length, monitor configuration, target geometry and approval requirement.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Stockoems supports configuration-controlled sourcing for Bently Nevada 330703-000-50-10-11-00, including case geometry, FluidLoc construction, connector protection and complete 11 mm system matching.
Order-Code AuditVerify the full probe code, documented suffix groups and no-approval option. |
Probe Geometry ReviewCheck the 11 mm tip, M14 x 1.5 thread, 50 mm case and unarmored construction. |
FluidLoc Condition ReviewInspect the 1.0 m FluidLoc lead, connector protector, sealing and protective packing. |
| Stage | What We Check | Buyer Benefit |
|---|---|---|
| Specification review | Probe family, five suffix groups and official ordering structure | Controls configuration risk |
| Compatibility review | 11 mm extension cable, Proximitor Sensor and monitor software | Supports a complete-system replacement plan |
| Visual evidence | Probe tip, thread, case, connector and FluidLoc lead | Provides receiving documentation |
| Shipment planning | Protection, destination, transport method and warranty terms | Supports international delivery coordination |
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
