Specific Application

• Deep-Bore Casing Penetration: Traverses intermediate machinery casing walls where a 100mm fully threaded metric reach is necessary to position the 8mm sensor head near internal targets.
• Corrosive or Hot-Oil Machine Enclosures: Deployed inside severe environments like fluid-film bearing housings where the integrated blue FEP armor protects against corrosive fluids and abrasive friction forces.
• Compact Local Terminal Egress: Designed for installations where the sensor lead exits directly into a closely mounted weatherproof junction box or a local terminal conduit to minimize loose cabling.

System Compatibility and Replacement Models

System Compatibility:

• Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180 series)
• Bently Nevada 3300 XL Standard Extension Cables (configured to achieve a 5-meter or 9-meter electrical system length)
• Fully interchangeable and backward compatible with legacy non-XL 3300 series 5mm and 8mm transducer hardware under API 670 standards.

Alternative Replacement Models:

• 330104-00-10-05-02-00 (Unarmored option with the same 100mm case length, 0.5m cable, and metric threads but lacking a pre-included locknut)
• 330103-00-40-05-01-BR (English/Imperial version featuring 3/8-24 UNF threads and a 4.0-inch fully threaded case length)
• 330104-02-10-05-01-BR (Metric version featuring a 20mm unthreaded section and a 100mm overall case length)

Differences from Alternative Models:

• Mechanical Thread Standards: The 330104 utilizes a standard metric M10x1 thread profile, rendering it non-interchangeable with the 330103 series, which utilizes an English 3/8-24 UNF-2A thread pattern.

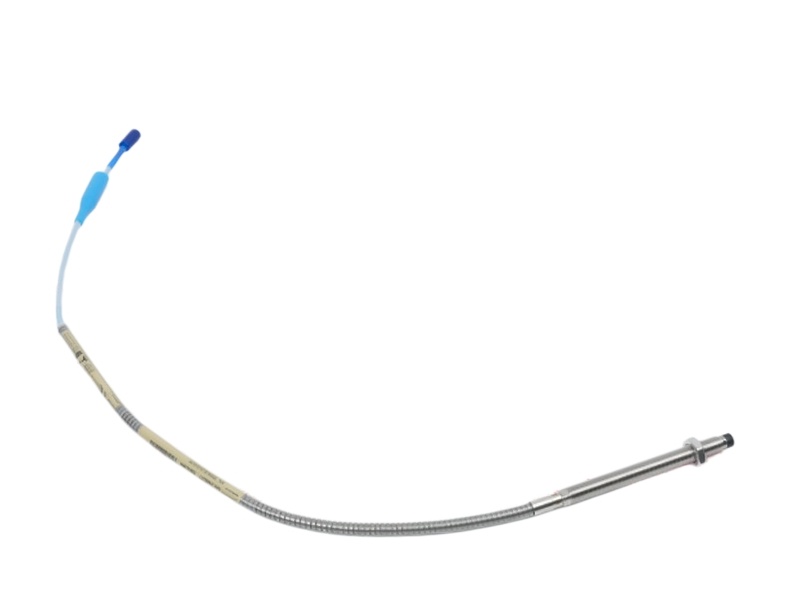

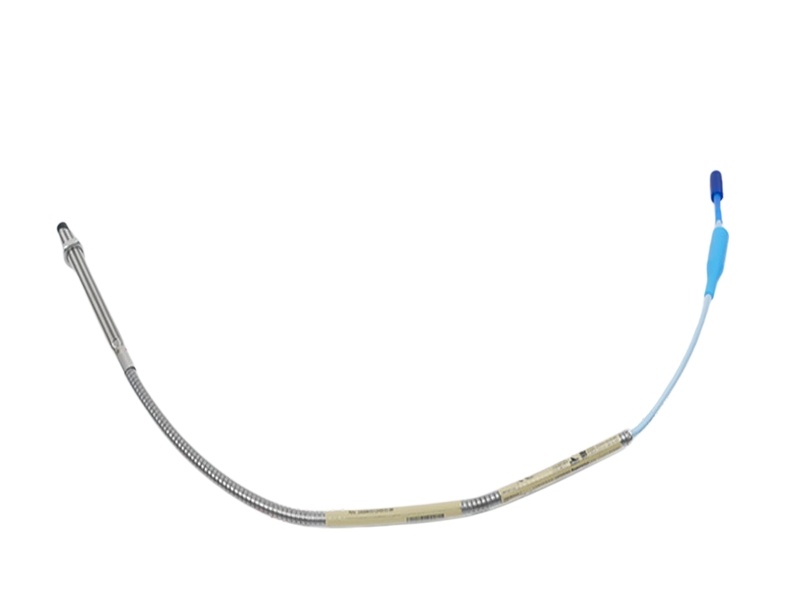

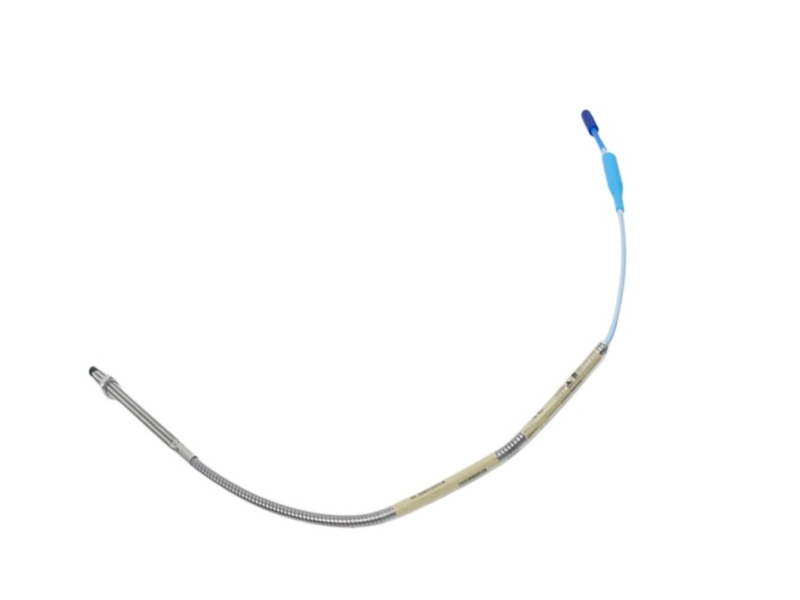

• Physical Shielding and Mounting Hardware: The presence of the -01-BR suffix confirms that the cable is wrapped in a rugged blue FEP-jacketed armor layer (-01) and includes a factory-packaged metric locknut (-BR). The standard -02-00 variant lacks both cable armor and the bundled mounting locknut.
• Thread Engagement Profile: This model is fully threaded over its 100mm case length (-00 unthreaded option). This differs from the -02 unthreaded version, which leaves a 20mm smooth shaft area at the probe tip to prevent thread binding inside thick walls.

Ordering Information Table

Installation & Troubleshooting FAQ

Q1: What is the proper calibration voltage for setting up this metric 3300 XL probe?

A: The initial field calibration target is -10.0 VDC, which aligns with the exact physical midpoint of the sensor's 2.0 mm (80 mils) linear range. Connect a digital multimeter to your 3300 XL Proximitor's OUT and COM terminals, then slowly rotate the M10x1 probe body clockwise into the casing thread until the multimeter reads -10.0 VDC. Tighten the locknut securely once the gap voltage is verified.

Q2: Why is the monitoring system registering false vibration readings or high shaft runout?

A: Eddy current sensors are highly sensitive to target surface metallurgy and finish defects. Scratches, rust pits, residual magnetism, or heat-treatment anomalies across the shaft track are misread as real dynamic movement. Ensure the observed track area is precision-ground and demagnetized according to API 670 guidelines, or apply slow roll runout compensation inside your monitoring software.

Q3: What causes "Side Effect" signal distortion, and how can it be prevented in deep bores?

A: If the counterbore surrounding the 8mm tip is too tight, the electromagnetic field leaks into the adjacent casing walls. This triggers cross-talk, lowering sensor sensitivity and distorting the calibration curve. To isolate the signal, ensure the physical counterbore diameter is at least three times the probe tip diameter (minimum 24mm diameter for an 8mm probe head).

Q4: How do I avoid electromagnetic cross-talk when installing two adjacent probes?

A: When mounting an X-Y pair at 90° for radial shaft tracking, ensure their center-to-center physical spacing is at least 40 mm (1.6 inches) apart. Mounting them closer causes their high-frequency RF signals to overlap, inducing phase reading errors or cyclic beating waves. If your machinery geometry forces a tighter layout, a special frequency-staggered Proximitor pair must be deployed.

Q5: Why does the proximity sensor signal glitch during heavy rain or oil washdowns?

A: This points to moisture or oil mist entering the coaxial ClickLoc connector junction between the probe lead and the extension cable. The gold-plated joint is highly vulnerable to conductive fluids. To fix this, thoroughly clean the internal contacts with electrical cleaner, dry the pieces, and seal the junction using original silicone connector protectors or self-fusing waterproof rubber tape.
