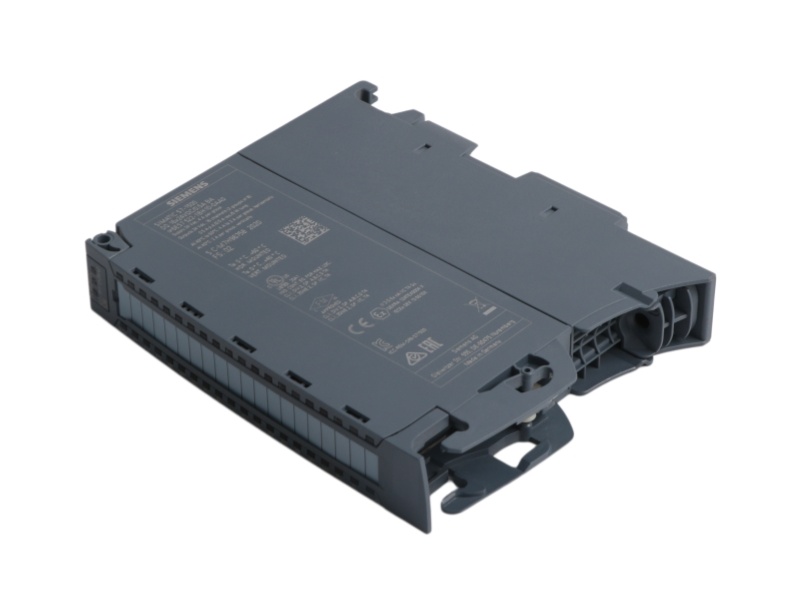

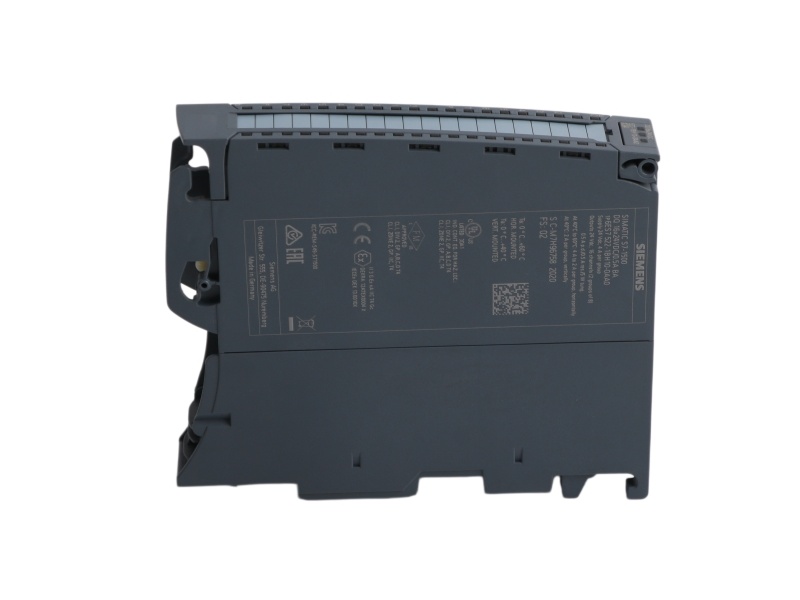

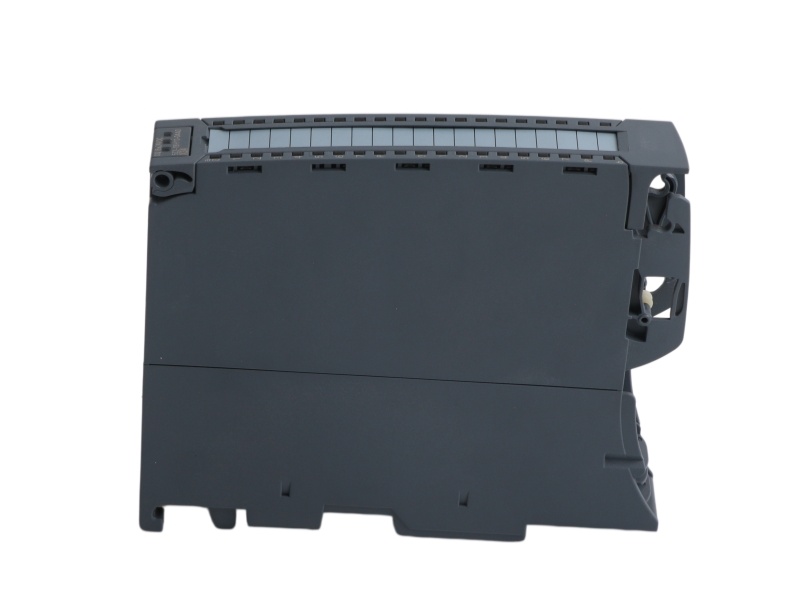

6ES7522-1BH10-0AA0 SIMATIC S7-1500 SM 522 Digital Output Module

Sixteen-channel SIMATIC S7-1500 digital output module for 24 V DC load control and structured cabinet replacement.

Product Summary

The Siemens 6ES7522-1BH10-0AA0 is a SIMATIC S7-1500 SM 522 digital output module identified as DQ 16x24 V DC/0.5 A BA. It provides 16 output channels arranged in two groups of eight, with 4 A permitted per group, and is supplied with a push-in front connector. Siemens states that the module supports safety-oriented shutdown of load groups up to SIL2 and Category 3 / PL d under the cited standards. Before ordering, confirm the full suffix, channel grouping, load characteristics, wiring, front connector, engineering configuration and installed module label.

Key Product Information

Technical Data Summary

Digital Load Control and Channel Grouping

The SM 522 module provides sixteen 24 V DC digital output channels for compatible SIMATIC S7-1500 stations. Channels are organized in groups of eight, so supply segmentation, group current and load wiring must be checked during design or replacement. The included push-in front connector supports field connection preparation for the specified module.

Features and Procurement Notes

• 16 digital output channels rated 24 V DC / 0.5 A.
• Two channel groups with eight outputs per group.
• 4 A maximum group loading stated by Siemens.
• Supports safety-oriented shutdown of load groups up to SIL2 and Category 3 / PL d under the cited standards.
• Delivery includes a push-in front connector.

Applications

• Switching 24 V DC actuators and indicators in compatible S7-1500 systems.
• Replacing an installed SM 522 after complete suffix and wiring verification.
• Organizing digital loads across two eight-channel output groups.
• Control-cabinet expansion requiring sixteen additional digital outputs.
• Projects using the documented safety-oriented shutdown capability of load groups.

Compatibility and Revision Notice

Confirm the complete 6ES7522-1BH10-0AA0 suffix, S7-1500 station configuration, 24 V DC load voltage, per-channel current, group current, front-connector type, wiring assignment, hardware revision, engineering project, installation dimensions and original label photos. Check total wiring length and target load characteristics before commissioning.

Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.

Frequently Asked Questions

Is 6ES7522-1BH10-0AA0 currently available?

Send the required quantity and destination for a current availability and shipping review.

What condition is offered?

This SM 522 page specifies NEW condition. Product and label photos can be requested for the offered unit.

How do I confirm S7-1500 compatibility?

Compare the full suffix, station configuration, channel grouping, load voltage, connector and engineering project.

Is the push-in front connector included?

Siemens lists delivery including a push-in front connector; confirm the contents of the offered package in writing.

Can I rely on the safety shutdown statement alone?

No. Validate the complete safety design, standards, wiring and engineering requirements for the target machine.

What warranty is provided?

6ES7522-1BH10-0AA0 is supplied with 1 year warranty under the applicable written quotation terms.
