SIEMENS · SCALANCE XC-200

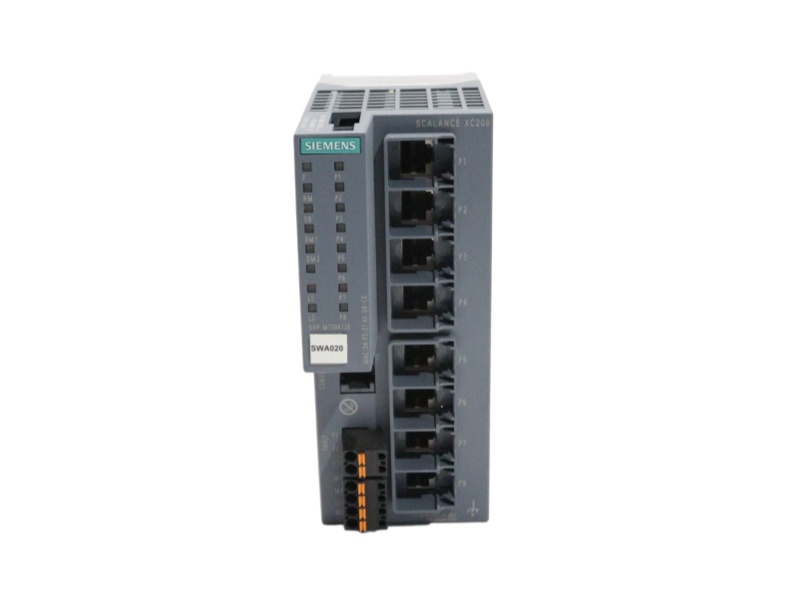

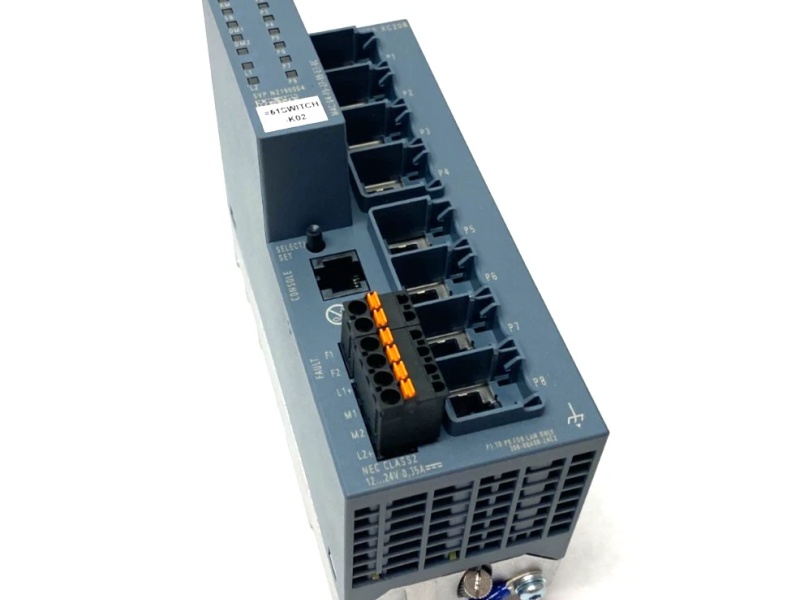

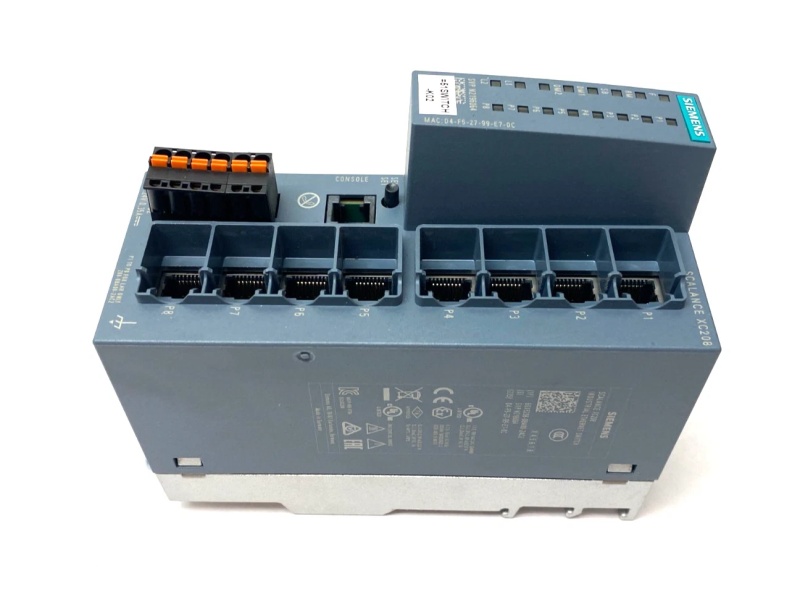

6GK5208-0BA00-2AC2 SCALANCE XC208 Managed Layer 2 Industrial Ethernet Switch

Eight Fast Ethernet ports, managed network functions and wide-temperature operation for structured industrial Ethernet infrastructure.

Product Summary

The Siemens 6GK5208-0BA00-2AC2 is a SCALANCE XC208 manageable Layer 2 Industrial Ethernet switch in the SCALANCE XC-200 managed family. It provides eight 10/100 Mbit/s RJ45 ports for connecting industrial Ethernet devices and supports managed network functions used in structured PROFINET environments. Its redundant 24 V DC supply input, signaling contact, diagnostic LEDs and wide operating temperature range support service, expansion and replacement planning in industrial control networks. Before ordering, verify the complete suffix, port requirements, mounting method, network configuration, firmware expectations and the label of the installed device.

Key Product Information

Technical Data Summary

Network Role and Interfaces

The XC208 provides eight copper Fast Ethernet ports for star or line-oriented industrial network layouts. Managed Layer 2 functions support deliberate traffic segmentation and resilient network design. Siemens lists RSTP and VLAN functions, PROFINET IO device capability and Ethernet/IP compatibility for this model. A C-PLUG slot supports configuration-related service workflows; the required memory medium and configuration should be confirmed for the installed system.

Power, Signaling and Installation

• Redundant 24 V DC supply connection through a four-pole terminal block.
• Maximum current consumption is 0.35 A; current at rated supply is listed as 0.175 A maximum.
• Two-pole signaling contact rated for 24 V DC and 0.1 A maximum.
• Installation options include DIN rail, S7 mounting rail and wall mounting.
• Diagnostic LEDs support visual review during commissioning and maintenance.

Plan wiring, protective devices, grounding, clearances and enclosure conditions according to the official Siemens documentation and the requirements of the target installation.

Applications

• Connecting PROFINET controllers, distributed I/O and operator stations within a managed cell network.
• Segmenting industrial Ethernet traffic with VLAN-based network planning.
• Supporting resilient machine or production-line networks using RSTP.
• Replacing an installed XC208 after exact part-number, firmware and configuration checks.
• Expanding copper Fast Ethernet connectivity in control cabinets and industrial enclosures.

Compatibility and Revision Notice

Check the complete part number and suffix, required network topology, total system or cable length where relevant, supply voltage, connector arrangement, hardware revision, firmware or software version, installation dimensions, mounting method, target material where relevant and target system configuration. Supply the original equipment nameplate and label photos whenever possible. A similar enclosure or related SCALANCE model does not establish compatibility.

Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.

Frequently Asked Questions

Is 6GK5208-0BA00-2AC2 currently available?

Availability is quotation-specific. Send the complete part number and quantity so the current supply position can be checked.

What condition can 6GK5208-0BA00-2AC2 be supplied in?

6GK5208-0BA00-2AC2 is listed here as NEW. Request current product and label photos and confirm the offered condition in writing before ordering.

How can I confirm network compatibility?

Compare the full suffix, port count, speed, supply range, mounting method, firmware, managed functions and existing configuration with the installed switch.

Is the complete Siemens suffix important?

Yes. Use the entire 6GK5208-0BA00-2AC2 identifier when requesting a quotation or checking an installed device.

Can product and label photos be provided?

Ask for photos of the offered unit and its labels so visible identity and condition can be reviewed before purchase.

Can this switch be shipped internationally?

Worldwide shipping options, packaging and customs documentation are checked against the destination and written quotation.
