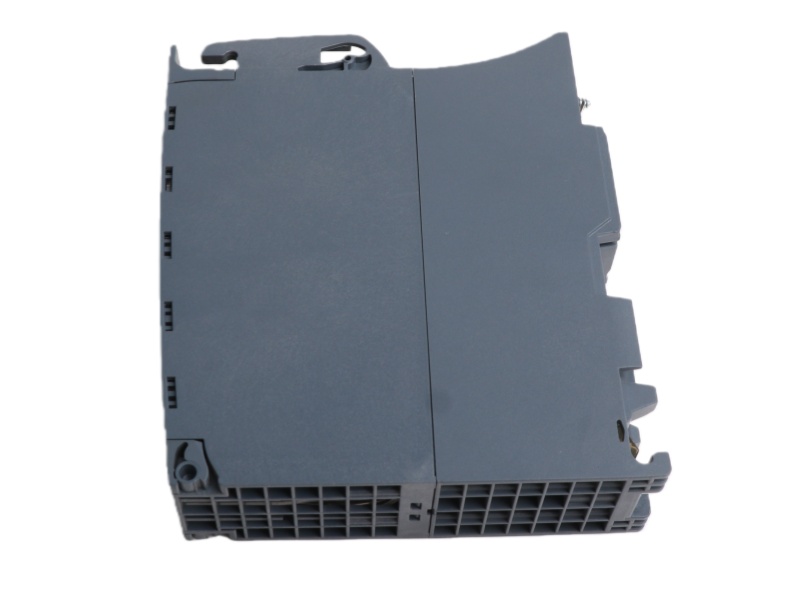

6ES7532-5HF00-0AB0 Overview

The Siemens Analog Output Module 6ES7532-5HF00-0AB0 analog output module supports oversampling, enabling high-resolution signal output through programmable sub-cycles as short as 125 µs within the standard PROFINET bus cycle.

Technical Properties

● Channel-based selection of 8 analog outputs

● Selection of channels for current output

● Selection of channels for voltage output

● Resolution: 16 bits including sign

● Configurable diagnostics (per channel)

● Fast updating of the output values

FAQ

Q1: What is the main function of the Siemens 6ES7532-5HF00-0AB0 module?

A1: It is a high-resolution analog output module designed for precise signal generation.

Q2: What is oversampling and why is it useful?

A2: Oversampling allows the module to output data in short, constant sub-cycles (down to 125 µs) without requiring a very short PROFINET bus cycle, enabling high time resolution efficiently.

Q3: What are the possible sub-cycle configurations?

A3: Sub-cycles can be set in increments from 2 to 16, as long as the isochronous cycle time divided by the number of sub-cycles is at least 125 µs.
