6ES7960-1CB00-0AA5 Overview

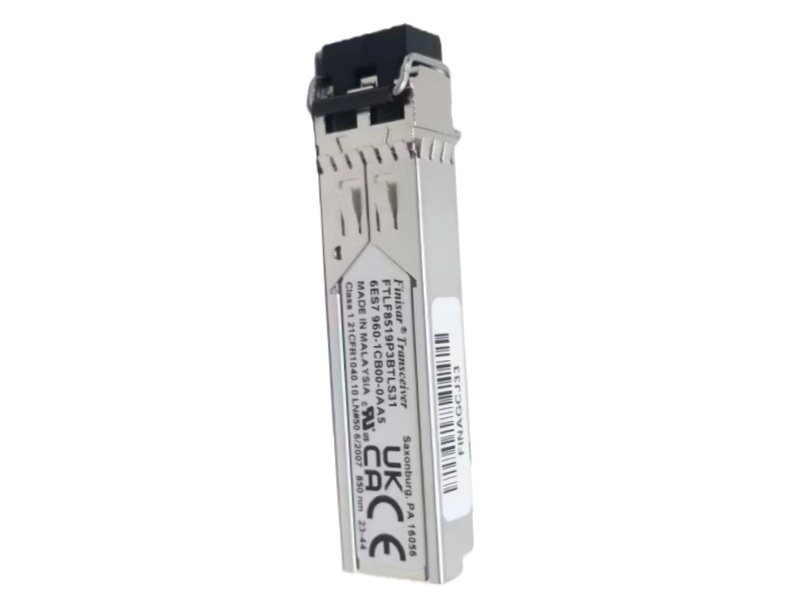

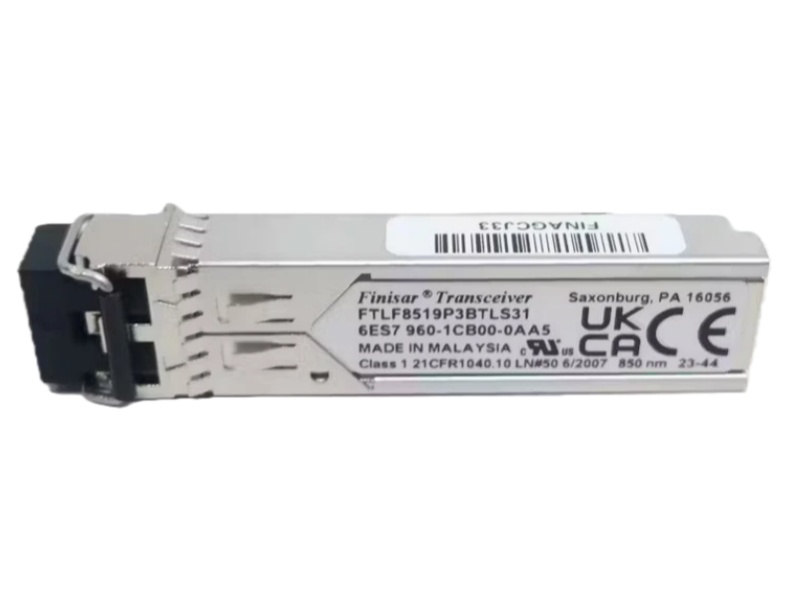

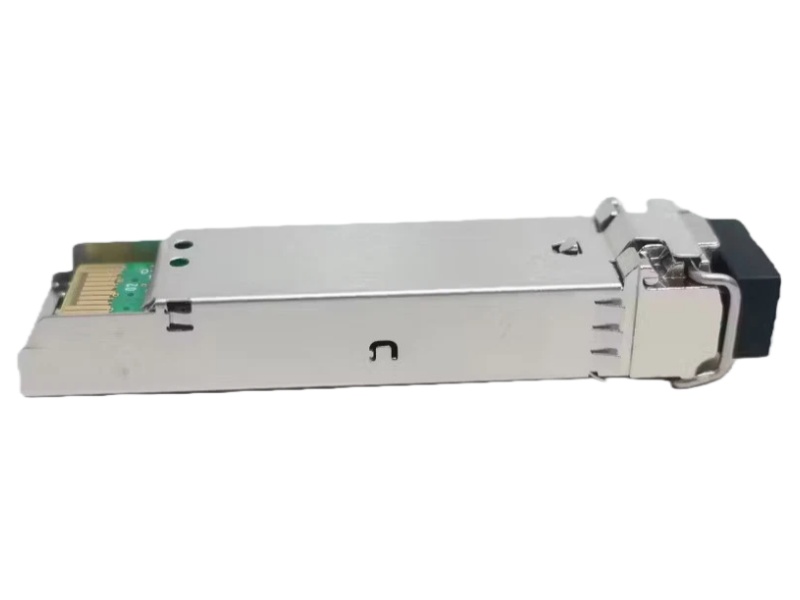

The 6ES7960-1CB00-0AA5 Siemens SIMATIC S7-1500H Synchronization module is a synchronization module for the SIMATIC S7-1500H system. It ensures real-time data synchronization between redundant CPUs using patch cables up to 10 meters, configurable in TIA Portal V15.1+.

Technical Properties

● Component Robustness: Designed for critical, fault-tolerant S7-1500H systems, implying high reliability.

● Connection Integrity: Utilizes durable, industry-standard LC fiber-optic connectors to ensure a stable physical link.

● Extended Reach: Supports synchronization over long distances (up to 200m) via fiber optics, suitable for various plant layouts.

FAQ

Q1: What is the main function of the 6ES7960-1CB00-0AA5 module?

A1: It is a synchronization module for the SIMATIC S7-1500H, enabling real-time data synchronization between two redundant CPUs.

Q2: What type of cable is required for the connection?

A2: It requires a standard patch cable (e.g., Cat 5e or higher) for the direct connection between synchronization modules.

Q3: What is the maximum supported cable length?

A3: The recommended maximum cable length for optimal performance is 10 meters.

Q4: Which software and version is required for configuration?

A4: The module is configured and integrated using TIA Portal, starting from version V15.1.

Q5: Is this module used in standard S7-1500 systems?

A5: No, it is specifically designed for the fault-tolerant S7-1500H redundant system and is not used with standard S7-1500 CPUs.
