6GK1500-0FC10 Overview

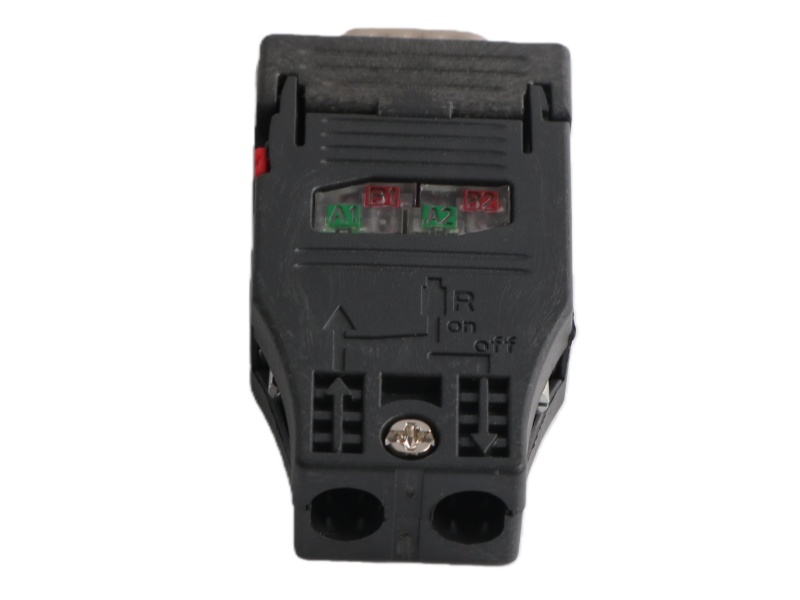

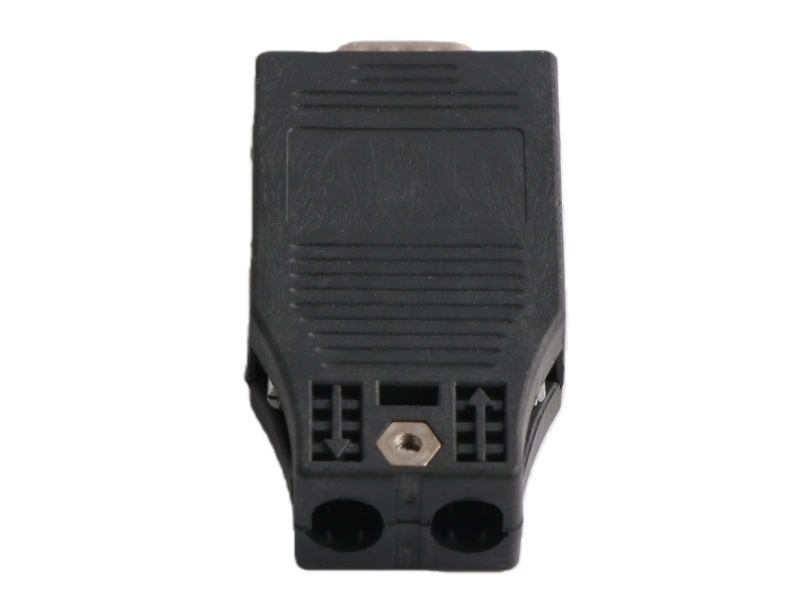

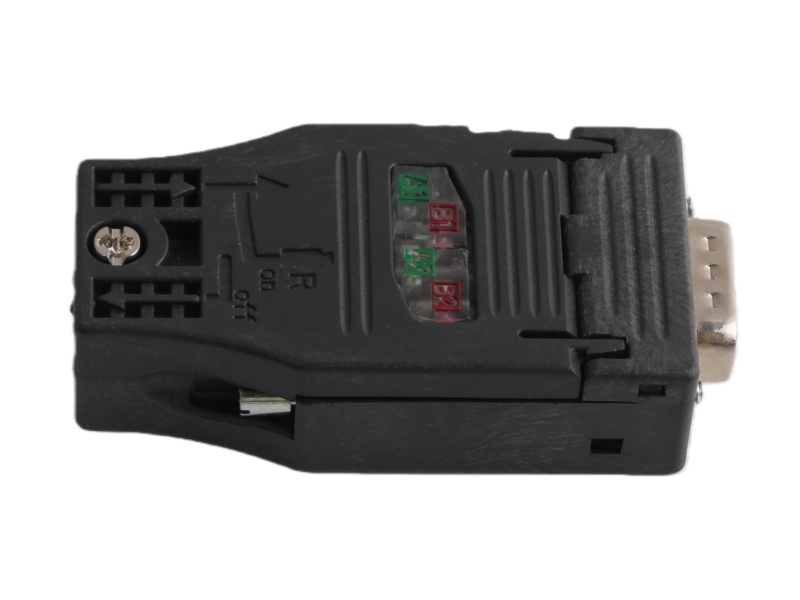

The 6GK1500-0FC10 Bus Connector Siemens is a compact PROFIBUS RS-485 connector. Its 180-degree FastConnect plug with an axial outlet enables quick, space-saving cable installation for devices like Industrial PCs and OMs, ensuring reliable communication at up to 12 Mbit/s.

Technical Properties

●Compact Interface: The 180-degree angled connector with a compact plastic housing facilitates neat and space-saving cable routing for PROFIBUS networks.

● Fast Installation: Features a FastConnect (FC) termination system, enabling rapid, tool-free connection to standard PROFIBUS cables for efficient field wiring.

● Reliable Termination: Includes a built-in terminating resistor with isolating function, ensuring proper network termination and signal integrity at speeds up to 12 Mbit/s.

● Versatile Compatibility: Designed for various devices such as Industry PCs, SIMATIC Operator Panels (OPs), and Optical Link Modules (OLMs), enhancing application flexibility.

● Stable Connection: Provides an axial cable outlet, which helps secure the connected cable and reduces strain, contributing to a reliable and durable connection.
