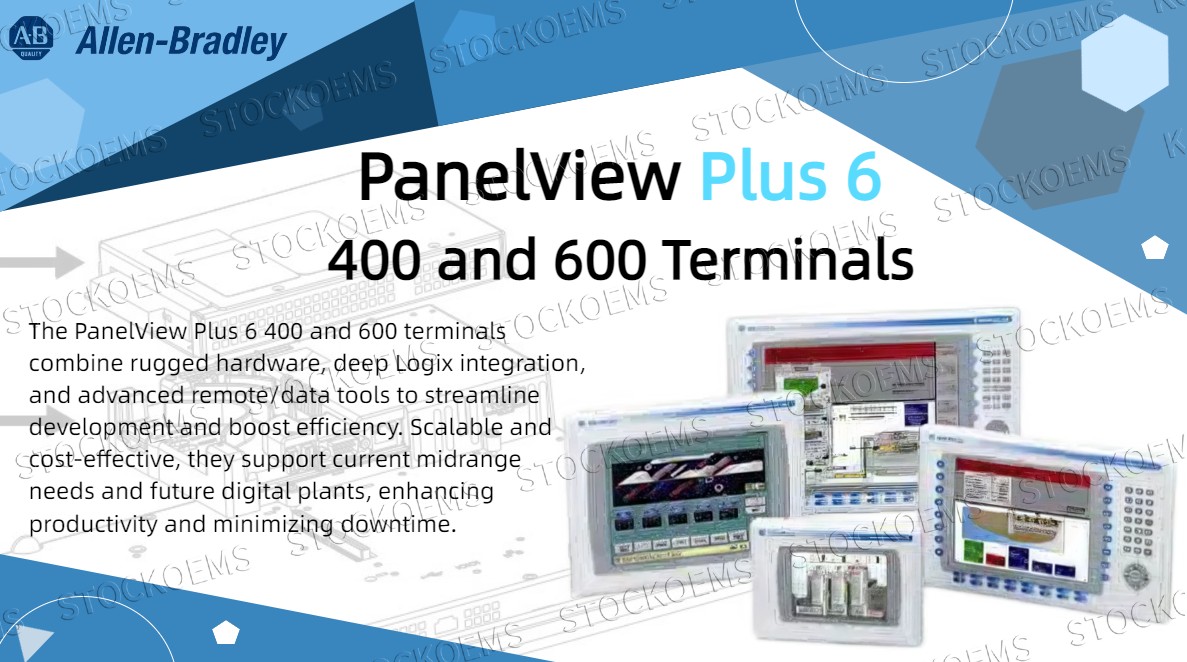

PanelView Plus 6 400 and 600 Terminals – Cost‑Effective HMI with Deep Logix Integration

Optimized Operator Interface for Midrange Control Systems

The PanelView Plus 6 400 and 600 terminals deliver a compact yet powerful HMI solution for applications using CompactLogix and other midrange controllers. Available with 3.5-inch or 5.7-inch displays (320x240 resolution) in grayscale or color, they run Windows CE 6.0 R3 on a 1.0 GHz ARM processor with 256 MB RAM and 512 MB storage, ensuring fast screen transitions and smooth operation. Their standout feature is direct tag reuse from Logix controllers – engineers define tags once in the PLC and reference them directly in FactoryTalk Machine Edition, eliminating manual imports and reducing errors. Maintenance teams benefit from the onboard PDF viewer, which allows instant access to equipment manuals, and bookmarking links alarm conditions to relevant troubleshooting pages. VNC server enables remote monitoring from any authorized device, while FTP support simplifies file transfers. Built to withstand harsh environments, these terminals carry NEMA 4X, 12, 13, and IP66 ratings, operating reliably from 0°C to 55°C and handling dust, moisture, and vibration.

Unified Development and Powerful Data Management

A single development environment – FactoryTalk Machine Edition – programs these terminals and scales to larger supervisory applications, enabling reuse of global objects, faceplates, and AOIs across projects. For example, a motor control graphic can maintain consistent behavior throughout the application, saving significant design time. The Datastore Plus feature logs process data in .csv format to USB or SD cards, allowing operators to analyze trends and adjust variables using Excel. Email notifications can be triggered by critical alarms, alerting staff instantly, and the built-in FTP server supports remote firmware updates and recipe changes without physical access. Extended software options add Windows Media Player, Internet Explorer, and Office viewers, transforming the terminal into a versatile information hub for training videos, spreadsheets, or web-based maintenance portals – all from the same rugged panel.

Flexible Connectivity, Reliability, and Scalable Design

These terminals offer comprehensive communication options: a 10/100Base-T Ethernet port with auto-MDI/MDI-X, an RS232 serial port (DB9), two USB ports (host and device), and an SD card slot for external storage. They accept both 18-32V DC and 85-264V AC power, fitting various plant infrastructures. The battery-backed real-time clock timestamps events with ±2 minutes/month accuracy, crucial for sequence-of-events analysis. Certifications include cUL, UL Listed, Class I Div 2, Class II Div 2, Class III, and Class I Zone 2, making them suitable for hazardous locations. The compact footprint (70x53 mm for 400, 115x86 mm for 600) fits tight panels, and the color TFT displays offer vivid graphics in all lighting. By reducing engineering effort, lowering maintenance costs with remote access, and minimizing downtime through faster screen loads and instant alarm-to-manual links, these terminals deliver exceptional total value for machine-level HMI needs.
