What This Amplifier Does and Where It Fits

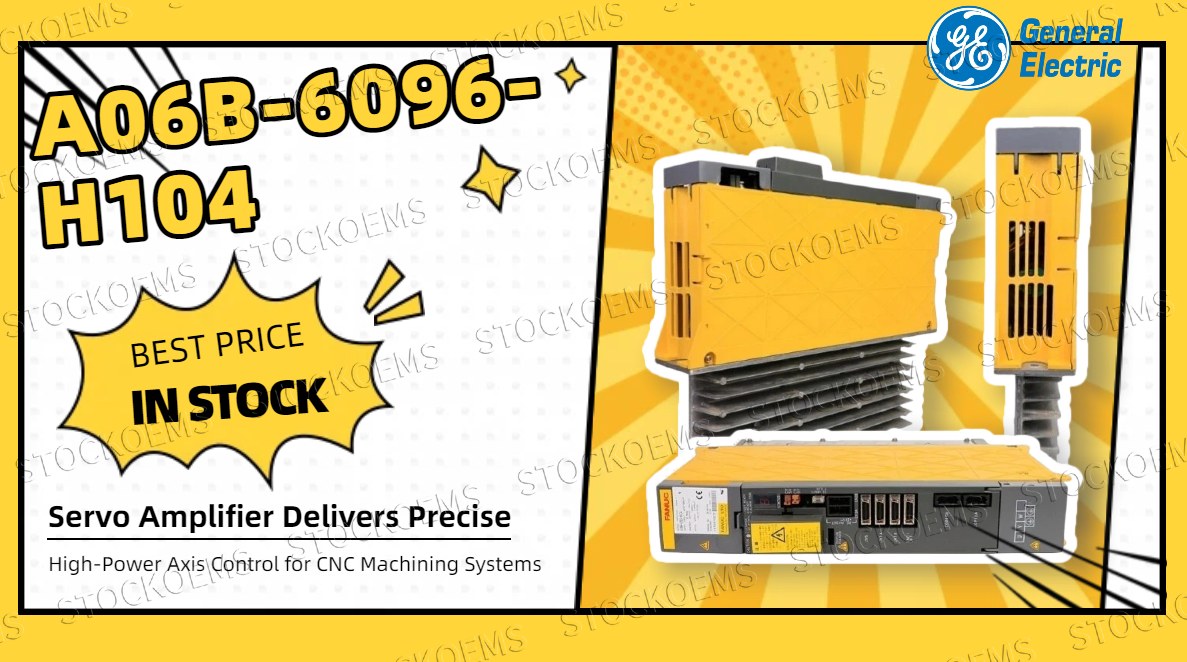

The GE Fanuc A06B-6096-H104 is a single-axis AC servo amplifier from the Alpha SVM1-40L series, built to drive one servo axis – typically the L-axis – in FANUC-controlled CNC machines and automated manufacturing systems. Positioned between the CNC controller and the servo motor, this module takes digital motion commands via the FSSB (FANUC Serial Servo Bus) fiber-optic link and turns them into precise current and voltage outputs that control motor torque, speed, and position. The FSSB interface ensures low-latency, real-time closed-loop communication – a must-have for high-speed machining and accurate contouring. Measuring just 60 mm wide, the unit uses an external heatsink for cooling and carries an IP20 enclosure rating, making it easy to fit into standard 19-inch control cabinets. For maintenance engineers or system integrators tracking down Fanuc spare parts, this amplifier is a solid, field-proven option – equally useful for fresh installations or reviving older systems.

Key Specs and CNC Compatibility

The A06B-6096-H104 runs on a DC input of 283 to 325 V and delivers a continuous power rating of 3.75 kW, with a rated output current of 12.5 A for the L-axis and peak output reaching up to 22 kW under transient conditions. It works with a range of FANUC Alpha AC servo motors, including models like the α12/2000 and α22/2000. On the control side, the amplifier talks to multiple CNC controller generations – from the 15i, 16i, 18i, 20i and 21i series up to newer platforms – and supports 17-bit absolute encoders for high-resolution positioning. Built-in alarm codes, notably 368 and 369, make diagnostics easier, while the IPM (Intelligent Power Module) transistor technology helps with switching reliability and heat management. The heatsink design helps keep temperatures in check – something that matters a lot in continuous high-load machining environments.

Typical Applications and Servicing Options

You will find this amplifier in CNC milling machines, machining centers, and automated transfer lines where a single axis demands responsive, accurate positioning. It is normally paired with Alpha series servo motors such as the α6/3000 or α12/3000, and gets its DC power from the standard PSM (Power Supply Module) within the Alpha system architecture. When a unit fails, certain internal parts – transistors, cooling fan, battery, and fuses – are replaceable, though the main control and wiring boards are not sold separately. Servicing options include buying new or refurbished units outright, or using a service exchange program where a fully tested replacement with warranty is supplied on a swap basis. Each exchange unit is tested on generation-specific test rigs covering 16i, 18i and 21i control platforms to confirm it performs as expected before it ships.
